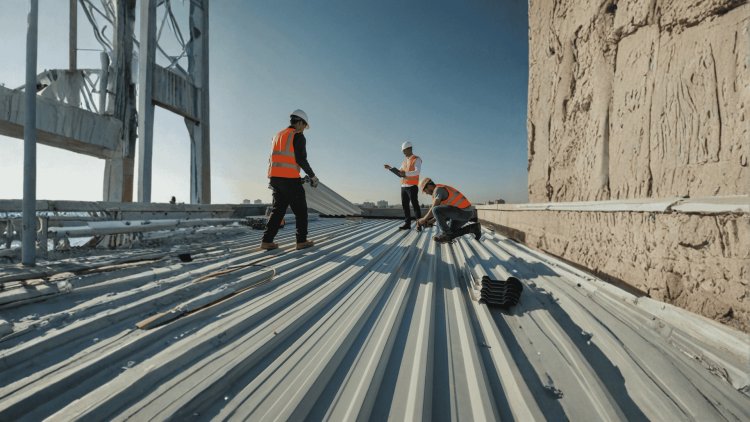

How Roof Deck Detailing Supports Clean Site Installation
Precision in the drafting room translates directly to efficiency on the roof. When structural detailers capture every edge condition, fastener pattern, and penetration location with accuracy, roofing contractors and site crews spend less time problem solving and more time installing. This presentation breaks down the critical connection between thorough roof deck shop drawings and a smooth, rework-free installation sequence.
Why Roof Deck Detailing Is a Separate Discipline
Roof deck detailing occupies a unique position within the structural documentation process. Unlike floor deck systems, roof deck assemblies must coordinate structural performance with waterproofing, drainage, mechanical equipment, rooftop penetrations, insulation systems, and perimeter envelope conditions. Because these requirements overlap across multiple trades, roof deck shop drawings require a dedicated detailing approach rather than a simple extension of floor deck documentation.
One Roof Plane. Multiple Design Disciplines.
Every roof deck drawing package must reconcile structural engineering, architectural requirements, mechanical coordination, drainage design, waterproofing systems, and field constructability before fabrication begins.
What Makes Roof Deck Detailing Different?
Slope & Drainage Alignment
Deck layout decisions cannot be separated from roof drainage strategy. Detailing must account for tapered insulation plans, drain locations, overflow systems, roof saddles, and scupper locations established by the design team. Improper coordination can create ponding and performance problems that are difficult to correct later.
Major Coordination Responsibilities
Every duct, pipe, skylight, roof hatch, mechanical curb, drain, and equipment opening must be accurately located, dimensioned, and coordinated with reinforcing requirements before fabrication.
Roof perimeters require explicit detailing for flashing support, edge attachment, angles, closure systems, parapet interfaces, coping support, and bearing conditions.
Side-lap fastening, support attachments, end conditions, setbacks, and re-entrant corners must maintain a continuous lateral load path throughout the entire roof structure.
The Cost of Treating Roof Deck As an Afterthought
A complete roof deck package gives every trade on the project a single source of truth for layout, connections, and special conditions. The four core elements—overall deck layout plan, fastener pattern schedules, penetration and curb schedules, and perimeter and edge conditions—are the minimum standard for a drawing set that supports clean field installation.
Core Elements of a Complete
Roof Deck Shop DrawingWhy These Four Elements Are Non-Negotiable
Panel orientation dictates crew sequencing and welding order. Coordinated layout plans align panel runs with crane pick sequences, staging areas, and open bays for MEP access. Optimized sheet lengths reduce field cuts, minimizing waste and time spent managing cut edges.
End laps must occur over structural supports to satisfy minimum bearing length (1½ inches per SDI). Explicitly dimensioned lap locations prevent crews from placing laps incorrectly. Staggering end laps improves diaphragm performance and avoids ridges across the roof plane.
Open-rib deck at the eave requires closures to prevent pest intrusion, maintain air barriers, and provide fascia nailing surfaces. Shop drawings must specify closure type, spacing, and attachment method. Omitted closures often go unnoticed until roofing inspection.
Factory-formed sump pans at drain locations must align with plumbing drain bodies and roofing insulation details. Drawings should show sump dimensions, bearing conditions, and supplemental framing if drains fall on unsupported spans. Proper detailing ensures drainage integrity and structural support.
Detailing decisions directly shape field execution. Panel orientation, lap placement, closures, and sump reinforcement must be explicitly documented to ensure efficient installation, structural performance, and long-term durability.
From Drawing to Deck: Detailing Decisions
Panel Orientation and Crew Sequencing
End-Lap Location and Structural Bearing
Closures and Acoustic Pans at the Eave
Sump Pans and Drain Reinforcement
Key Insight
A roof deck shop drawing package should never move to submittal without comprehensive coordination across structural, architectural, roofing, MEP, and construction management disciplines. Most costly field conflicts originate from information that existed elsewhere in the project but was never incorporated into the deck drawings. A disciplined pre-submittal review significantly reduces RFIs, accelerates approvals, and protects fabrication schedules.
Every unresolved coordination issue eventually appears as an RFI, revision, fabrication delay, installation conflict, or schedule disruption. The most efficient time to solve conflicts is before the drawing package leaves the detailing department.
Confirm ducts, pipes, conduits, and sleeves.
Verify curb dimensions and exact locations.
Coordinate supplemental framing requirements.
Ensure support details are included before fabrication.
Ensure roof slopes, insulation transitions, drain assemblies, and deck bearing requirements operate together without creating constructability conflicts.
Before releasing roof deck shop drawings, confirm structural layouts, diaphragm requirements, penetration coordination, rooftop equipment framing, drainage compatibility, roofing interfaces, and installation sequencing. Thorough coordination before submittal shortens review cycles, reduces drawing comments, prevents fabrication changes, and helps deliver a cleaner and more predictable installation process.
Coordination Checkpoints Before Shop Drawing Submittal
Coordination Before Submittal Is Faster Than Correction After Approval
Required Coordination Partners
Structural Engineer Confirmation
02 • MEP & Rooftop Equipment Coordination
03 • Roofing System & Drainage Compatibility
04 • General Contractor Schedule Alignment
What Happens When Coordination Is Skipped?
Submit Only After Every Discipline Signs Off
Roof deck detailing does not end at submittal approval. The most effective detailing teams treat the installation phase as a feedback opportunity—capturing field observations that sharpen the next project's drawing quality. Detail precise drawings, execute clean installation, refine from field observations, and update standards form a continuous improvement cycle that reduces errors on every subsequent roof deck project.
When a detailer or project engineer conducts even a single site visit during deck installation, they gather information that no drawing review process can replicate. Field observations drive meaningful drawing improvements that reduce errors, eliminate awkward field cuts, and improve installation efficiency on every subsequent project.
Problem: Penetration edge distances that were technically compliant on paper but required awkward field cuts because they fell mid-rib rather than at a flute valley. Problem: Closure and rake angle connections that required additional field drilling because the specified fastener pattern conflicted with the supporting angle's web. Problem: Sump pan bearing conditions where the surrounding deck required shimming because the pan depth exceeded the joist top chord clearance. Problem: End-lap stagger patterns that were correctly drawn but not fully communicated to the installing crew through the drawing's general notes.The Detailing-Installation
Feedback LoopClosing the Loop on Drawing Quality
Drawing Improvement: Add note to penetration schedule: "Locate penetrations at flute valleys where possible. If mid-rib location is unavoidable, specify field-cut reinforcement detail." Update standard penetration details to show preferred valley locations and mid-rib reinforcement requirements.
Drawing Improvement: Add detail showing fastener pattern relative to angle web. Specify: "Fasteners to be located in angle web only. Adjust pattern to avoid angle flange." Include angle web width in closure schedule to guide fastener spacing.
Drawing Improvement: Add sump pan detail showing required joist top chord clearance. Specify: "Verify pan depth does not exceed joist top chord clearance. Provide shim detail where pan depth exceeds clearance." Include minimum clearance dimension in sump pan schedule.
Drawing Improvement: Add explicit general note: "End-laps to be staggered minimum 6" between adjacent sheets. See detail X-X for stagger pattern." Include end-lap stagger detail with dimensioned example. Add note to sheet index: "End-lap stagger pattern critical for diaphragm integrity."
Field Observation Categories: What to Look For
