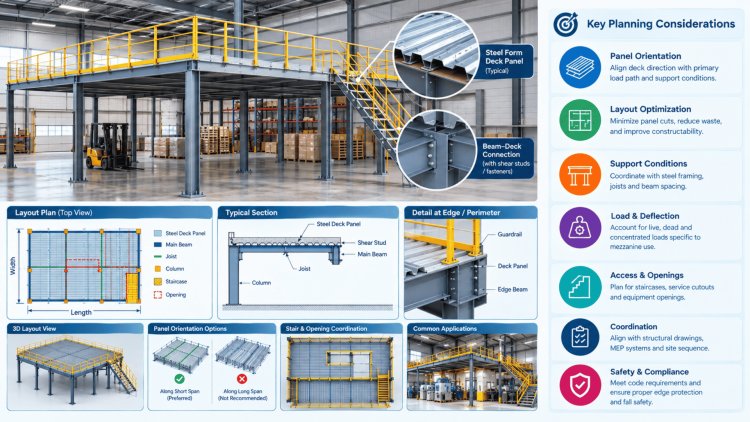

Steel Form Deck Layout Planning for Mezzanine Structures
Mezzanine structures demand a level of layout precision that goes well beyond standard floor deck applications. Unlike ground-level slabs poured over continuous grade, a mezzanine deck system is suspended — every load path, every bearing condition, and every panel orientation decision carries direct structural consequence. Getting the form deck layout right from the start is not a housekeeping exercise; it is a core engineering discipline that affects constructability, cost, structural performance, and long-term serviceability.
Establishing Bay Geometry & Panel Orientation
The foundation of any successful mezzanine deck layout is a disciplined approach to bay geometry. Before a single panel is placed on a drawing, the relationship between structural framing members and deck span direction must be resolved — because the deck flute orientation dictates how gravity loads transfer to supporting joists and beams, and a mismatch at this stage cascades into structural inefficiency, excessive deflection, and costly field corrections.
Resolve the Bay Before You Place the First Panel
Framing
Direction
Transfer
Flute Orientation Fundamentals
Steel form deck panels must always span perpendicular to the primary supporting members — joists or beams — so that the fluted ribs transfer one-way bending loads efficiently into the supporting framing. In mezzanine bays, where joist spacing is typically 4 ft to 6 ft on-centre, the deck acts as a one-way slab spanning across ribs. Running deck parallel to supports eliminates this structural action entirely and is never acceptable in a structural mezzanine context.
Deck Span Must Be Perpendicular to Supporting Members
Not Acceptable
When framing is bidirectional — secondary beams spanning between primaries — the deck orientation should be resolved to span the shorter direction, reducing required section modulus and minimising mid-span deflection under construction loads before concrete cure.
Bay Dimension & Panel Efficiency
Standard form deck panels are produced in widths of 24 in, 30 in, or 36 in with lengths up to 40 ft. In mezzanine applications, bay widths and joist spacings should be coordinated to minimise panel cutting. A bay width that is an even multiple of the panel coverage width — for example, 12 ft bays with 36 in panels — eliminates edge waste and reduces field labour significantly.
Coordinate the Bay With Available Coverage Widths
12 ft Bay + 36 in Panels = Clean Coverage
FABRICATION
Irregular bay geometries, which are common in mezzanines built around existing columns or mechanical equipment, require a panel layout plan that accounts for closure strips, field-cut panels, and additional bearing at interrupted edges. These conditions should be identified in the layout plan before fabrication begins, not discovered during erection.
Account for Interrupted Conditions Before Release
Datum
Starter Panel Placement
Layout planning should define a datum or starter panel location — typically from a primary structural grid line — and progress across the bay in a consistent direction. This prevents accumulation of dimensional error across multiple panels and ensures sidelaps land predictably at joist lines where attachment fasteners are applied.
Start From a Datum and Move in One Direction
DATUM
Panel
02
03
→
Resolve Geometry Before Fabrication
Resolve the Span. Coordinate the Bay. Set the Datum. Then Lay Out the Deck.
With panel orientation established, the next layer of layout planning addresses span lengths, bearing adequacy, and the detailing of deck edges—three interdependent variables that control both structural performance and construction safety.
ANSI/SDI standards specify minimum bearing lengths of 1.5 in at the end of a deck panel over a steel support and 3 in at interior supports where panels lap.
Field Problem: Undersized bearing is common when deck span directions change mid-bay or when panels terminate over beams with narrow outstanding legs. Confirm joist series provides adequate bearing width before finalising layout.
⚠️ Bearing plates or closure angles may be required at perimeter conditions where the deck terminates at a spandrel beam or masonry wall.
Mezzanine edges require a structurally adequate pour stop—typically a formed sheet metal closure or angle—that retains wet concrete during placement and transfers edge loads back to the supporting framing.
⚠️ Critical: Edge angles that are simply tacked are a known failure mode during concrete pours—full design and fastener scheduling is non-negotiable.
Sidelap connections are critical for diaphragm performance and for preventing differential deflection between panels under concentrated or asymmetric loads.
Button-punch or screw fasteners; closer spacing warranted where diaphragm demands are elevated or panel widths are narrow.
Joist top chord widths vary by profile—confirm that the selected joist series provides adequate bearing width before finalising layout. Undersized bearing is a common field problem.
Mezzanine-specific concentrated loads—racking, equipment, partitions—must be evaluated independently and may govern deck gauge selection regardless of what the standard span table indicates.
In mezzanine applications where point loads from storage racking, mechanical equipment, or partition walls may be significant, the sidelap fastening schedule should be specified explicitly on the deck layout plan.
Span tables published by deck manufacturers are based on uniform live and dead load conditions. Mezzanine-specific concentrated loads—racking, equipment, partitions—must be evaluated independently and may govern deck gauge selection regardless of what the standard span table indicates.
Span Optimisation, Bearing Conditions & Edge Detailing
Bearing Length Requirements
Pour Stop Design
Sidelap Fastening
Key Design Considerations for Mezzanine Decks
Joist Top Chord Width
Concentrated Loads
Fastening Schedule
Span Table Limitation Notice
Typical uniform live-load range for storage mezzanines.
Concentrated load from a single equipment or machine base.
The form deck layout plan must account for both load magnitude and location, including how panels distribute demand into the supporting joist and beam network.
Establish the clear distance between supports that controls the deck span condition.
Determine dead + live load demand before comparing the condition against the applicable deck tables.
Compare span and load demand against the published capacity for the selected deck profile.
Common mezzanine profiles: 1.5 in Type B (wide rib) and 3 in deep deck for longer spans or higher load conditions.
Mezzanine slabs often support finished flooring, racking systems, or sensitive equipment with strict deflection tolerances — L/360 or tighter. Deflection frequently governs over bending strength, pushing gauge selection one or two steps heavier than load tables alone suggest.
Before concrete cures, the deck alone carries wet concrete weight plus construction live load (minimum 20 psf per SDI recommendations). This temporary condition can govern for longer unshored spans.
Where shear connectors are not specified, the deck acts non-compositely — the full gravity demand is carried by the deck section alone, which typically governs over the composite final condition for heavier loads.
When the layout plan identifies concentrated load zones — equipment pads, stair towers, lift openings — the framing plan should be adjusted to place supports directly under or adjacent to these concentrations wherever possible.
Adding an intermediate beam or joist under a planned equipment location costs far less at the design stage than reinforcing deck and framing post-construction.
The deck layout should flag these zones explicitly so that both the structural engineer and the steel detailer can coordinate bearing, anchoring, and any required doubling or thickening of the deck in that region.
Most common Type B wide-rib form deck depth used in mezzanine floor applications across typical 5 ft to 8 ft joist spans.
Deflection under live load — not bending strength — is the most frequent governing criterion in mezzanine deck gauge selection.
SDI-recommended minimum construction live load applied to unshored deck spans before concrete achieves design strength.
Minimum bearing length required at interior supports where deck panels lap over a steel joist or beam top chord per ANSI/SDI standards.
Select gauge from the controlling span and load, then verify deflection, construction-stage demand, composite behavior, concentrated-load zones, and actual support conditions before finalizing the deck layout.
Design the Deck Around the Real Load Path
Three Inputs Establish the Starting Point
Determine the Controlling Span
Establish the Superimposed Load
Read the Manufacturer's Load Tables
Three Conditions Can Push Gauge Selection Heavier
Deflection Limits
Construction Load Condition
Composite vs. Non-Composite
Put Support Where the Load Lives
Numbers That Shape the Detailing Decision
The most technically rigorous layout plan delivers value only if it is communicated clearly to everyone who touches the project — fabricators, erectors, concrete crews, and inspectors. The final layer of mezzanine deck layout planning is documentation discipline and field coordination, which are as consequential as any structural calculation.
A complete mezzanine deck layout drawing should include: panel orientation arrows with explicit flute direction notation; a numbered panel schedule keyed to gauge, profile, and length; bearing length callouts at all supports; sidelap fastener spacing by zone; pour stop type and fastener schedule at all perimeter conditions; opening locations with edge reinforcement details; and reference to the applicable SDI or manufacturer load tables used for gauge selection. Drawings that omit fastener schedules or leave gauge selection to the fabricator's discretion are incomplete and create liability exposure.
Mezzanine decks routinely require penetrations for stairs, mechanical risers, sprinkler drops, and electrical conduit. Each opening must be located on the deck layout plan before fabrication — not field-cut without engineering review. Openings that interrupt deck ribs at supports require supplemental framing (trimmer angles or header beams) to redirect load around the void. The layout plan should clearly distinguish between openings that fall between joists (typically manageable with header angles) and those that fall at or near a joist line (which may require joist relocation or a purpose-framed header).
The deck layout plan should be cross-referenced with the concrete placement plan. Wet concrete is a significant construction load — typically 12.5 psf per inch of slab thickness — and placement sequencing that starts at mid-bay and works outward can induce uplift at deck ends if the pour sequence is not coordinated with temporary shoring or deck anchoring. For mezzanine slabs thicker than 4.5 in, or for spans exceeding the manufacturer's unshored table, intermediate shoring during concrete placement must be shown on the layout plan with explicit removal conditions tied to concrete strength milestones.
Establish inspection holdpoints in the deck layout documentation at three stages: (1) deck erection complete, before concrete — verify bearing lengths, sidelap fastener count, pour stop attachment, and opening framing; (2) pre-pour inspection — verify shoring if required, reinforcement placement, and edge condition; (3) post-pour inspection of visible deck soffit for distress, local buckling, or bearing failures. Documenting these checkpoints in the construction drawings rather than leaving them to verbal instruction ensures accountability and creates a defensible record for the project file.
A well-executed mezzanine deck layout plan is a single, coordinated document — not a collection of disconnected details. Structural engineers, steel detailers, and erectors working from the same dimensioned, annotated layout drawing is the single most effective quality control measure available at no additional cost.
Coordination, Documentation & Field-Critical Detailing
Technical Accuracy Only Works When Everyone Builds From the Same Information
Deck Layout Drawing Requirements
The Layout Drawing Must Be Buildable Without Guesswork
CoordinationOpening Coordination in Layout Planning
Risers
Drops
ConduitBetween Joists vs. At the Joist Line
Joists
Joist LineConcrete Placement Sequencing
Mid-Bay Outward Placement Can Create Deck-End Uplift
Pour → Outward
Uplift
HoldpointsInspection Holdpoints & Quality Checkpoints
Verify the Work Before the Next Stage Conceals It
Instruction
CheckpointOne Drawing. Three Disciplines. One Field Reference.
Engineer
DetailerCoordinate It. Dimension It. Inspect It. Document It.
