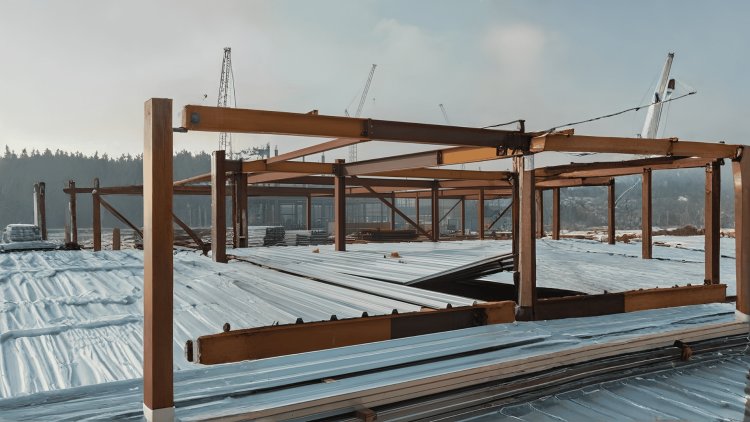

Non-Composite Deck Design Notes for Practical Projects
Non-composite steel deck is one of the most commonly specified — and most commonly misunderstood — elements in modern structural framing. While composite deck dominates floor systems where shear studs are practical, non-composite deck carries its own set of critical design considerations that demand equal rigor: load path assumptions, attachment patterns, edge conditions, deflection controls, and diaphragm behavior under lateral loads. This presentation distills practical design notes for structural engineers, steel deck detailers, and experienced contractors who need actionable guidance — not a primer on deck types.
Attachment Patterns & Fastener Selection
Why Attachment Governs
In non-composite applications, the deck-to-framing connection defines both gravity load transfer and diaphragm shear capacity. Unlike composite systems where shear studs engage the slab, here the mechanical fastener is the only structural link. Every fastener type, spacing, and pattern decision has direct consequence on published diaphragm tables and field inspectability.
Fastener
Framing
+
AISI S310
SDI DDM04 and AISI S310 both require that fastener schedules be explicitly called out on structural drawings — not left to the deck installer's discretion.
Non-composite deck span capacity is a function of profile depth, gauge, steel yield, and loading condition—but the controlling limit state is frequently deflection rather than bending strength, especially under construction loads before any fill is placed. SDI recommends limiting deflection under wet concrete and construction live load to L/180 or 3/4" maximum, whichever is less. For spans over 8', this often governs gauge selection over Mu alone.
Cantilevered non-composite deck requires explicit design for negative bending. Published span tables assume simple-span conditions and do not apply to cantilevers. High ribs must face up for negative moment resistance, and minimum 1.5" bearing at the backspan support is required to avoid web crippling.
Non-composite deck span capacity is a function of profile depth, gauge, steel yield, and loading condition—but the controlling limit state is frequently deflection rather than bending strength, especially under construction loads before any fill is placed. Four critical design considerations govern span limits and deflection controls: (1) Construction Load Deflection (Unshored)—SDI recommends limiting deflection under wet concrete and construction live load to L/180 or 3/4" maximum, whichever is less; for spans over 8', this often governs gauge selection over Mu alone; always check the unshored span condition even when the finished assembly is shored—forms can be removed prematurely in the field, exposing the deck to construction loads without shoring support. (2) Ponding Check Requirement—for roof deck or any deck spanning in a framing bay where primary members also deflect, a ponding check per AISC 360 Appendix 2 is required when framing spacing exceeds 25 ft or roof slopes are less than 1/4":12" (0.25 inch per foot); many engineers skip this check on non-composite floor decks—it applies there too if the supporting beams are flexible and can accumulate water or wet concrete load. (3) Cantilever Conditions—cantilevered non-composite deck requires explicit design for negative bending; published span tables assume simple-span conditions and do not apply to cantilevers; at cantilevers, check: end attachment for uplift (mechanical fasteners or welds must resist upward reaction), deck profile orientation (high ribs must face up for negative moment resistance—reversing the profile eliminates the section modulus needed to resist negative bending), and minimum bearing at the backspan support of at least 1.5" to avoid web crippling (insufficient bearing can cause local buckling of the deck web at the support); never assume symmetry of cantilever and backspan loads without calculation. (4) Multi-Span vs. Single-Span Assumptions—deck sheets lapped over intermediate supports behave as continuous members and achieve higher allowable loads than single-span sheets (continuity reduces positive moment and deflection); however, this continuity benefit is void if end laps occur at the same support line—a common detailing error on projects where sheet length is limited by crane reach or field access; stagger laps per SDI guidelines to preserve the multi-span advantage, as end laps at the same support line void the continuity benefit and the deck behaves as single-span sheets with lower allowable loads.
Span Limits, Deflection Controls &
Cantilever ConditionsSpan Limits and Deflection Controls Summary
Condition
Controlling Limit State
Design Requirement
Common Error
Construction Load (Unshored)
Deflection (L/180 or 3/4" max, whichever is less)
Check unshored span condition even when finished assembly is shored; for spans over 8', deflection often governs gauge selection over Mu
Assuming shored design eliminates need to check unshored condition; forms can be removed prematurely in field
Ponding (AISC 360 App. 2)
Ponding instability when framing spacing > 25 ft or slope < 1/4":12"
Ponding check required for roof deck or any deck spanning in framing bay where primary members also deflect
Skipping ponding check on non-composite floor decks—applies if supporting beams are flexible
Cantilever Conditions
Negative bending (not covered by simple-span tables)
Check end attachment for uplift; high ribs must face up for negative moment resistance; minimum 1.5" bearing at backspan to avoid web crippling
Assuming symmetry of cantilever and backspan loads without calculation; reversing profile orientation at cantilevers
Multi-Span Continuity
Continuity reduces positive moment and deflection
Stagger laps per SDI guidelines to preserve multi-span advantage; end laps must not occur at same support line
End laps at same support line—voids continuity benefit; deck behaves as single-span with lower allowable loads
For Spans Over 8', Deflection Frequently Governs Gauge Selection Over Bending Strength (Mu) Alone
Never Assume Symmetry of Cantilever and Backspan Loads Without Calculation
The Span Limits Principle
Steel deck can serve two structural roles at once: carrying gravity loads and acting as a horizontal diaphragm for wind and seismic force distribution. In non-composite systems, the lateral load path depends heavily on the deck-to-framing connections, side-lap fasteners, collectors, and their connection to the lateral-force-resisting system.
Steel deck serves a dual structural role: gravity load carrier and horizontal diaphragm for wind and seismic distribution. In non-composite systems, the diaphragm function is entirely dependent on the deck-to-framing connections and side-lap fasteners — there is no concrete topping to supplement stiffness or strength. This distinction is critical when reviewing lateral system adequacy on light-framed or open-web joist structures.
Diaphragm shear capacity must be taken from tabulated values in SDI DDM04, AISI S310, or from manufacturer test reports. Do not use uncorroborated engineering judgment for diaphragm shear values.
Forces transferred from the diaphragm to shear walls or braced frames must travel through collectors. On non-composite deck projects, collectors are often light-gauge framing members or steel angles that are under-detailed. Collector design is frequently a gap between the structural engineer and the detailer.
A diaphragm is only as effective as the complete load path that connects it to the lateral-force-resisting system. Deck capacity, fastener patterns, side-lap continuity, diaphragm flexibility, collectors, openings, and final connections must be coordinated as one structural system rather than detailed as isolated components.
Diaphragm Behavior & Lateral Load Transfer
Deck → Connections → Collector → Lateral Element
Non-Composite Deck as a Diaphragm
Collector and Drag Strut Design
Common Diaphragm Design Errors
What the Detailer Should Verify
Every Lateral Force Needs a Complete Path
Edge angles commonly sized as L3×3 or L4×4 must be designed for wet concrete pressure and, where required, diaphragm chord forces. Simply noting “angle by others” without defining size and capacity is insufficient for construction documents.
Open flutes at beams and wall supports allow concrete or lightweight fill to migrate into unintended locations and create unplanned load paths. Specify closed-rib deck systems, field-bent tabs, or profile-specific closure products.
Wind pressures at roof perimeters and corners frequently exceed those assumed by gravity-based fastening schedules. Enhanced perimeter fastener patterns, such as 36/4 versus a standard 36/7 field condition, are often required but frequently omitted from contract documents.
SDI requires a minimum bearing of 1½ inches on steel supports and 3½ inches on concrete or masonry. Field modifications for MEP clearance frequently reduce these values and should always be verified before placement operations begin.
Support attachment patterns, sidelap spacing, and perimeter enhancement zones must appear directly on structural drawings rather than being buried in specification sections.
Always evaluate deck performance under construction loading. L/180 or ¾-inch maximum deflection commonly governs and should be tightened further where sensitive architectural finishes are anticipated.
Diaphragm shear values, collector forces, weld schedules, and sidelap spacing should be fully documented and coordinated between the deck detailer and the lateral-force-resisting system designer.
Edge conditions, closure requirements, uplift zones, and bearing details represent the highest-risk items on non-composite deck projects. Resolve these conditions during construction documents, not during installation.
Most deck installation failures do not originate in the field—they originate in incomplete detailing. Explicit edge-condition documentation, diaphragm coordination, uplift fastening requirements, closure details, and bearing verification are the foundation of successful non-composite deck installations.
Deck Closure Angle or Pour Stop
Flute Closure at Supports
Roof Deck Edge Uplift
Minimum Bearing at Supports
Key Takeaways for Production Use
Specify Every Fastener Pattern Explicitly
Deflection Governs More Often Than Strength
Treat Diaphragm Design as a Deliverable
Detail the Perimeter First
Production Planning Principle
