Joist and Deck Systems: An Overview for BIM Users

Understanding joist and deck systems is essential for creating accurate, efficient BIM models in commercial and industrial construction. These structural elements form the backbone of floor and roof assemblies, and their proper representation in digital workflows can significantly impact project coordination, fabrication accuracy, and construction timelines.

Joist and Deck Jun 5, 2026 0 10 Add to Reading List

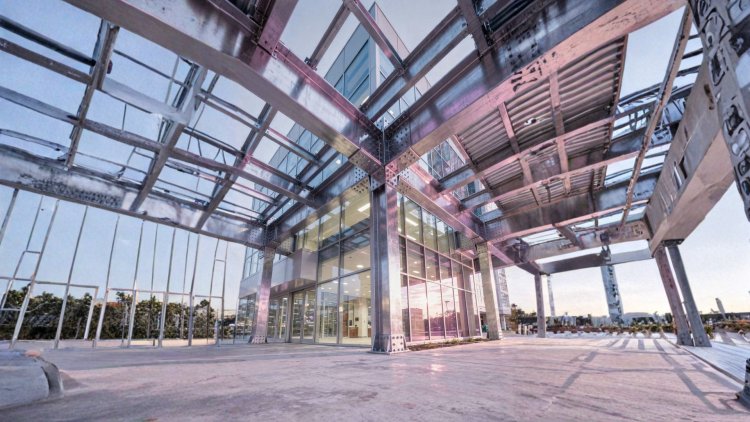

Joist and Deck Systems: An Overview for BIM Users

CHAPTER 1

What Are Joist & Deck Systems?

Joist and deck systems work together to create efficient floor and roof structures capable of spanning long distances while supporting significant loads.

⛓

Open-Web Steel Joists

Lightweight structural members featuring parallel chords connected by web elements, designed to support floor and roof loads efficiently across medium to long spans. Manufactured in standardized K-Series, LH-Series, and DLH-Series configurations.

✓ Cost-effective for spans from 20 to 120 feet

✓ Reduced structural depth and weight

✓ Accommodates MEP systems through open webs

▤

Metal Deck Systems

Corrugated steel panels that span between joists or beams, serving as permanent formwork for concrete or as standalone roof decking. Available in various profiles, gauges, and configurations to satisfy structural and fire-rating requirements.

✓ Composite floor deck with shear studs

✓ Roof deck with insulation and membrane

✓ Form deck for reinforced concrete

KEY CONCEPT

Why Joist & Deck Systems Matter in BIM

Accurate BIM modeling transforms joist and deck systems into coordinated, fabrication-ready assets that improve project delivery from design through construction.

Coordination Accuracy

Proper modeling prevents costly clashes between structural framing and MEP systems. Accurate joist spacing and deck profiles ensure penetrations and hangers are coordinated before fabrication begins.

Fabrication Data

BIM models generate shop drawings, material schedules, and connection details directly from the digital model. This reduces errors and accelerates the transition from design to manufacturing.

Construction Sequencing

Detailed joist and deck models enable 4D simulation, helping teams visualize erection sequences, identify safety concerns, and optimize crane placement and material staging on site.

CHAPTER 2

Key Considerations for Modeling Joists in BIM

Accurate BIM modeling requires more than placing joists in a model. Proper designations, realistic connections, stabilization systems, and coordinated layouts are essential for reliable detailing and fabrication.

Specify Joist Designation Correctly

Use proper Steel Joist Institute (SJI) designations in BIM families. Include series type, depth, and chord size so accurate weight, deflection, and load capacity data flow throughout the model.

Model Bearing Conditions Realistically

Accurately represent seat angles, bearing plates, and connection details. These influence joist reactions and must be communicated clearly to supporting beams and columns.

Include Bridging & Bracing

Horizontal and diagonal bridging stabilize joists during construction and service. Modeling these elements improves clash detection and reflects actual field installation conditions.

Coordinate Joist Spacing Early

Standardize spacing to match deck panel widths and reduce custom fabrication. Early coordination with architects and MEP teams minimizes clashes, RFIs, and downstream change orders.

CHAPTER 3

Modeling Metal Deck Systems for Maximum Efficiency

Accurate deck modeling improves coordination, fabrication planning, structural analysis, and quantity takeoffs. Every deck family should contain the data necessary for design, construction, and code compliance.

BIM

Essential Deck Attributes

When creating or selecting deck families in BIM software, ensure every deck system contains the structural, fabrication, and code-compliance information needed throughout the project lifecycle.

Profile Type & Depth

Model B-deck, N-deck, and F-deck profiles with accurate rib geometry and depth to ensure realistic structural behavior and detailing.

Gauge Thickness

Include deck gauge values such as 18, 20, or 22 gauge to accurately represent load capacity, weight, and fabrication requirements.

Span Direction & Support

Model deck orientation relative to supporting joists to establish accurate load paths and avoid coordination errors.

Concrete Fill Depth

For composite slabs, include topping thickness and reinforcement information to support structural calculations and quantity takeoffs.

Fire Ratings & Quantity Takeoffs

Tag deck systems with appropriate UL-rated fire assemblies and construction specifications to streamline code compliance reviews. Accurate deck modeling also enables automatic quantity takeoffs, reducing manual calculations, improving bid accuracy, and accelerating procurement planning.

INTEGRATED WORKFLOW

From Design to Detailing

A comprehensive BIM workflow connects architectural intent, structural analysis, fabrication detailing, and field execution through a single source of coordinated project data.

BIM

Connected Project Delivery

Design

→

BIM Model

→

Fabrication

→

Construction

Reliable Project Data

When joist and deck systems are modeled accurately early in the design process, downstream teams benefit from coordinated and dependable information that minimizes rework.

Early Coordination

Standardized joist and deck families combined with multidisciplinary coordination help reduce clashes, improve constructability, and streamline project delivery.

Maintaining Consistency Across the Project Lifecycle

For example, Consac leverages advanced BIM coordination to deliver accurate structural models that seamlessly integrate with fabrication and construction workflows. By establishing standardized joist and deck families, coordinating early with all disciplines, and maintaining data-rich models throughout the project lifecycle, engineering teams can reduce errors, accelerate schedules, and improve overall project outcomes.

This integrated approach ensures that changes in one discipline automatically propagate throughout the model, maintaining consistency across structural drawings, shop details, quantity takeoffs, and field installation documents.

BEST PRACTICES

Common Challenges & How to Overcome Them

Successful BIM-based joist and deck detailing depends on anticipating common coordination issues and implementing proven workflows that keep projects moving efficiently.

Inconsistent LOD

Challenge: Different disciplines model elements at varying Levels of Development, creating coordination gaps and inconsistent project data.

Solution: Establish a clear LOD specification at project kickoff. Define LOD 300, 350, and 400 requirements and standardize joist and deck families across teams.

Joist Depth Conflicts

Challenge: Structural joists interfere with ductwork, piping, cable trays, and other MEP systems.

Solution: Run early clash detection around joist webs and penetrations. Adjust joist depths or reroute services before coordination drawings are finalized.

Deck Seam Coordination

Challenge: Deck seams, fasteners, puddle welds, and shear studs are often overlooked during coordination.

Solution: Model deck layouts with accurate seam locations and generate erection drawings that clearly define panel sequencing and attachment patterns.

BIM

Shop Drawing Disconnection

Challenge: Shop drawings become disconnected from the coordinated BIM model, creating duplication and inconsistency.

Solution: Export IFC or native model files directly to detailing platforms such as Tekla or SDS/2 and maintain a single source of truth throughout the project lifecycle.

CONCLUSION

Moving Forward with Confidence

BIM

Build Better Projects Through Smarter Modeling

Mastering joist and deck system representation in BIM is not just about creating visually accurate models—it's about building a digital foundation that supports better decision-making, tighter coordination, and more predictable construction outcomes. As projects grow in complexity and schedules compress, the ability to model these systems accurately becomes a significant competitive advantage.

Elevate Your BIM Workflow

Whether you're a project manager coordinating trades, a design engineer optimizing structural efficiency, or a BIM specialist refining workflows, understanding how joist and deck systems function within the digital environment will elevate project delivery. Accurate modeling improves collaboration, reduces errors, accelerates fabrication, and provides teams with the confidence needed to execute increasingly complex projects.
