How to Optimize Deck Sheet Direction Without Sacrificing Clarity

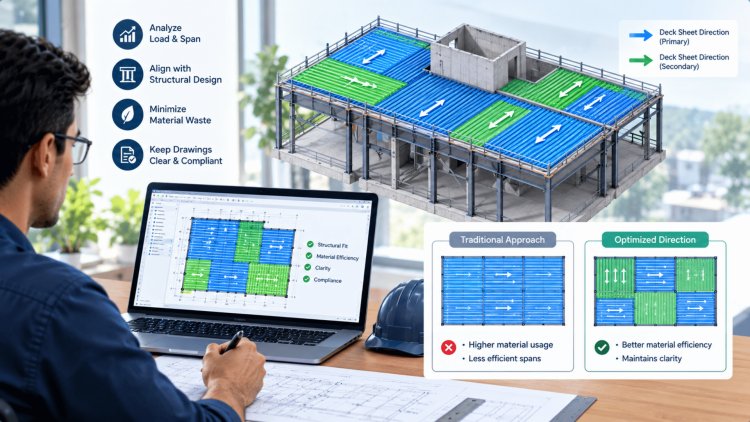

Deck sheet orientation is one of the most consequential — and frequently underestimated — decisions in structural steel design. Whether you're coordinating with joist layouts, managing pour stops, or navigating complex framing geometries, the direction your deck sheets run determines everything from load distribution to field efficiency. This guide cuts through the ambiguity and gives structural engineers, detailers, and design professionals a clear, actionable framework for making the right call every time.

How to Optimize Deck Sheet Direction Without Sacrificing Clarity
STEEL DECK DESIGN

Why Deck Sheet Direction Is a Critical Design Decision

The orientation of steel deck sheets — whether running parallel or perpendicular to primary framing — has cascading effects on structural performance, coordination clarity, and construction efficiency. It's not simply a drafting preference; it's an engineering judgment with measurable consequences.

HIGHEST EFFICIENCY

Perpendicular to Joists or Secondary Framing

When deck sheets run perpendicular to joists or secondary framing, they achieve their highest structural efficiency. The corrugated ribs span between supports in their strong axis, maximizing load-carrying capacity and minimizing deflection under wet concrete loads. This is the industry-standard orientation for composite floor decks and most roof deck applications.

SOMETIMES UNAVOIDABLE

Parallel to Supporting Members

Running deck sheets parallel to supporting members is sometimes unavoidable — particularly in irregular bays, around large openings, or when coordinating with mechanical penetrations. In these cases, engineers must:

Verify unbraced length Adjust attachment patterns Confirm diaphragm performance

According to Consac's deck design resources, maintaining proper span-to-depth ratios and verifying SDI load tables for the chosen orientation is essential before finalizing the layout.

GREATEST COORDINATION RISK

Mixed Orientation Within a Single Floor Plate

A third scenario — mixed orientation within a single floor plate — introduces the greatest coordination risk. Transitions between deck orientations must be clearly detailed at the contract document stage to avoid field confusion, improper sidelap conditions, and diaphragm discontinuities.

Key Orientation Factors

1
Span Direction
Deck always spans perpendicular to its flutes for maximum efficiency
2
Diaphragm Continuity
Orientation affects load path and lateral force transfer
3
Attachment Patterns
Puddle welds and fastener schedules change with orientation
4
Pour Stop Coordination
Flute direction determines edge form requirements at slab edges
BEFORE FINALIZING THE LAYOUT

Maintain proper span-to-depth ratios and verify SDI load tables for the chosen orientation — and detail every orientation transition at the contract document stage so the field never has to guess.

Framing Geometry, Joist Coordination & Layout Discipline

Deck sheet direction must be resolved in direct conversation with the joist and beam layout — not as an afterthought. The most efficient framing systems are those where these decisions are made simultaneously, early in the design process.

01

Align Deck to Joist Span

Steel joists are the primary supports for floor and roof decks. Deck sheets should always be oriented to span between joists — meaning the flutes run parallel to the joists and the deck spans perpendicular to them. This ensures efficient load transfer and avoids cantilevered end conditions. As detailed in Consac's joist and deck guidance, confirming joist spacing against SDI span tables before finalizing deck gauge is a non-negotiable step.

02

Manage Irregular Bays

L-shaped floor plates, setbacks, and re-entrant corners frequently force deck orientation changes mid-floor. At these transitions, detailers must specify: the exact sheet edge condition, whether a supplemental beam or joist is required to support the sheet end, and how the diaphragm chord force is transferred across the transition. Leaving these decisions to the field is a common source of RFIs and structural non-conformance.

03

Document Direction Explicitly

Framing plans must call out deck orientation with a directional arrow and a clear note — never rely on the scale of the drawing alone to imply sheet direction. Ambiguous plans produce misinstalled deck, which may not be caught until concrete is placed. A brief orientation note such as "DECK RIBS PARALLEL TO GRID LINE B" eliminates ambiguity and protects the design intent through construction.

Deck Orientation & Layout

Optimization Strategies: Balancing
Structural Performance & Constructability

Achieving the ideal deck orientation isn’t always straightforward—especially in projects with complex framing, large mechanical openings, or tight coordination requirements. The following strategies help engineers and detailers resolve conflicts without compromising clarity or structural integrity.

Strategy 01

Prioritize the Dominant Bay

In floor plates with multiple bay sizes, select the deck orientation that works for the largest or most structurally critical bay, then detail exceptions at smaller or irregular bays. This reduces the total number of orientation transitions and simplifies the diaphragm design. Supplement with drag struts or collector elements where the orientation change creates a force-transfer gap.

Strategy 02

Use Gauge Adjustment at Transition Zones

Where orientation constraints force longer unsupported spans, increase the deck gauge rather than changing the overall orientation. Moving from 20-gauge to 18-gauge or 16-gauge can recover span capacity without the detailing complexity of a full orientation shift. Always verify the new gauge against the concrete weight and construction live load in SDI or manufacturer span tables.

Strategy 03

Coordinate with MEP Before Locking Direction

Large mechanical penetrations—particularly HVAC ducts routed perpendicular to the deck span—can force flute direction changes that compromise the diaphragm. Engage the MEP engineer before finalizing deck layout so that major duct runs are aligned with, not against, the optimal deck orientation. This is a coordination step that pays dividends throughout the construction phase, as noted in Consac’s steel joist detailing resources.

Align major duct runs with the optimal deck orientation before the layout is finalized.
Strategy 04

Sidelap Fastening at Orientation Changes

When two deck sheets of different orientations meet, the sidelap condition at the junction requires special attention. Standard button-punch or screw patterns assume sheet-to-sheet contact along the rib. At orientation transitions, a structural angle or supplemental framing member is typically needed to provide bearing and a fastening surface for both sheets. Detail this explicitly—never assume the field will figure it out.

Strategy 05

Limit Mixed-Orientation Zones

Every orientation transition introduces a coordination burden: additional callouts, supplemental framing, and a potential diaphragm discontinuity. Where possible, consolidate deck direction changes to a single transition line—ideally coinciding with a beam or joist—rather than scattering them across the floor plate. A disciplined approach to layout minimization directly reduces RFIs and field errors.

06

Verify Diaphragm Continuity Across Transitions

Lateral diaphragm forces do not stop at orientation transitions. The engineer of record must confirm that chord members, collectors, and drag struts are adequate to transfer accumulated shear across any deck direction change. For high-seismic or high-wind regions, this analysis should be documented explicitly in the structural calculations, not left implicit in the framing plan. See Consac’s full library for related lateral system guidance.

Chord members
Collectors
Drag struts
For high-seismic or high-wind regions, document the diaphragm transfer analysis explicitly in the structural calculations.
Layout discipline

Minimize transitions. Preserve diaphragm continuity. Reduce field errors.

A disciplined deck orientation strategy balances structural performance with constructability—without compromising clarity or integrity.

Steel Deck Documentation Standards

Clarity in Documentation: How to Communicate Deck Direction Without Ambiguity

Even the most technically sound orientation decision fails if it is not communicated clearly on the contract documents. Effective deck packages eliminate interpretation by providing explicit direction, coordinated schedules, clearly defined transitions, and sufficient detailing to guide fabrication, erection, and inspection teams without uncertainty.

Documentation Must-Haves

Orientation Identification

Provide deck orientation arrows on every framing plan and for every unique orientation zone, referenced directly to structural grid lines.

Deck Schedule

Include deck type, gage, composite or non-composite designation, span condition, and applicable SDI design reference.

Transition Details

Show all orientation changes with supplemental framing, fastening requirements, sidelap treatment, and transition geometry.

Edge Coordination

Pour stops and slab-edge conditions must be keyed to flute orientation so erection crews understand deck edge relationships.

Diaphragm References

Cross-reference lateral analysis wherever non-standard orientation or modified fastening patterns are required.

MEP Coordination

Confirm ductwork, equipment penetrations, and routing have been reviewed against deck span direction before permit submission.

Coordination Drives Constructability

Getting deck orientation right during design is one of the highest-leverage decisions available to the structural team. Direction arrows, transition details, coordinated schedules, and clearly documented fastening requirements dramatically reduce RFIs, installation delays, and field corrections. Well-organized documentation converts engineering intent into predictable field execution.

Common Documentation Errors to Avoid

Implied Direction Only

Never rely on framing geometry alone to communicate orientation. Every deck layout requires explicit directional arrows or notes.

Unlabeled Transitions

Unmarked orientation changes between adjacent bays remain one of the most common causes of incorrect deck installation.

Missing Gage at Transition

Transition areas often require heavier deck sections. If the deck schedule does not explicitly identify those requirements, field installation may not match design intent.

Final Documentation Principle

A successful steel deck package leaves no room for interpretation. Every orientation zone, transition condition, fastening requirement, diaphragm consideration, and edge detail should be visible, dimensioned, and coordinated directly within the drawing package. Clear documentation reduces RFIs, accelerates approvals, improves field productivity, and ensures the installed deck system performs as intended from the first sheet placed through final project completion.
