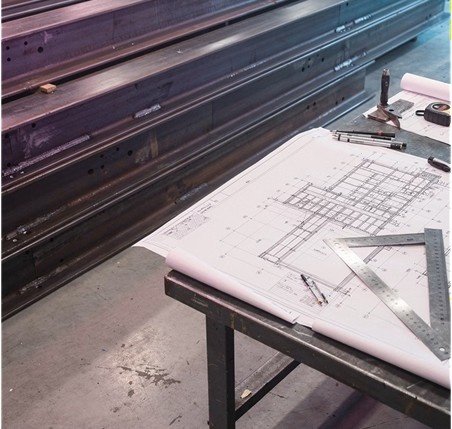

Avoiding Costly Mistakes in Steel Fabrication Through Accurate Detailing
In the world of structural steel construction, precision is not a luxury — it is a necessity. From the earliest stages of design to the final bolt on-site, every decision made in the detailing process has a direct impact on cost, schedule, and structural integrity. Inaccurate detailing remains one of the most preventable yet consistently recurring causes of project delays, fabrication rework, and budget overruns across the construction industry.
Steel Fabrication & Detailing
Why Accurate Steel Detailing Matters More Than Ever
Precision detailing is no longer optional in modern construction projects. It is the foundation for efficient fabrication, seamless erection, and long-term structural reliability.
The Stakes Are High
Steel fabrication is one of the most precision-dependent phases of any construction or industrial project. A single error in a connection detail, beam length, or weld specification can cascade into significant rework costs, schedule disruptions, and even structural safety concerns. As project complexity grows, so does the need for airtight detailing from day one.
What Accurate Detailing Delivers
Eliminates Rework
Prevents costly field modifications, fabrication errors, and repetitive shop corrections.
Precision Fit
Ensures fabricated components align perfectly during erection and assembly.
Reduces Waste
Minimizes material waste, procurement mistakes, and unnecessary project expenses.
Better Coordination
Creates a single source of truth between engineers, fabricators, and contractors.
Accurate Detailing Drives Project Success
In today’s fast-moving construction environment, detailed accuracy directly impacts profitability, timelines, safety, and client satisfaction. Investing in quality steel detailing early prevents expensive problems later.
Common Steel Detailing Errors
Common Detailing Mistakes That Derail Steel Projects
Understanding where errors originate is the first step toward preventing them. The following are among the most frequently encountered detailing mistakes in steel fabrication — and each one carries a measurable cost.
Inconsistent Drawing Standards
When detailing teams use inconsistent notation, tolerances, or drawing conventions, fabricators interpret details differently. This leads to mismatched components, costly recuts, and delays during erection. Standardization across all project drawings is non-negotiable.
Clash and Interference Issues
Without 3D coordination, beams, columns, hangers, and MEP elements can physically conflict in the field. Clash detection during the detailing phase eliminates these surprises before a single piece of steel is cut.
Overlooked Connection Details
Structural connections — bolted, welded, or moment-resisting — demand precise geometry. Missing weld symbols, incorrect bolt grades, or unspecified bearing conditions are among the leading causes of fabrication non-conformance.
Poor Revision Management
Projects evolve constantly. When revision history is poorly tracked or not communicated to the shop floor, fabricators work from outdated drawings — resulting in scrapped material, additional labor, and compressed schedules.
BIM & 3D Steel Detailing
The Role of BIM and 3D Modeling in Precision Detailing
Modern steel fabrication has been fundamentally transformed by Building Information Modeling (BIM) and 3D parametric detailing tools. These technologies shift the detailing workflow from reactive problem-solving to proactive quality control — catching errors virtually before they become physical realities.
Smart Digital Coordination
3D Model-Based Detailing
Platforms like Tekla Structures and Advance Steel allow detailers to build complete, fully coordinated 3D models. Every connection, weld, hole, and cut is defined directly in the model, while shop drawings are automatically generated — eliminating manual transcription errors and improving overall detailing accuracy.
Conflict Prevention
Automated Clash Detection
Integrated clash detection tools identify physical conflicts between structural steel, mechanical systems, and architectural components early in the design phase — well before fabrication begins. This proactive coordination dramatically reduces RFIs, field conflicts, and expensive change orders during construction.
Fabrication Automation
CNC-Ready Output
Advanced detailing models can generate CNC machine-compatible files such as DSTV and NC1 formats directly from the digital model. This streamlines the transition from detailing to fabrication, reduces manual input, shortens lead times, and virtually eliminates dimensioning errors.
Precision Steel Detailing Standards
Best Practices for Error-Free Steel Detailing
Across high-performing fabrication projects, a consistent set of best practices separates teams that deliver on time and budget from those that don't. Whether you're working on a commercial high-rise, industrial facility, or infrastructure project, these principles apply universally.
01
Establish a Detailing Execution Plan Early
Define drawing standards, naming conventions, revision workflows, and model ownership before detailing begins. A Detailing Execution Plan (DEP) aligned with the project's BIM Execution Plan (BEP) prevents miscommunication and downstream coordination issues.
02
Coordinate with Fabricators from Day One
Engaging the steel fabricator during the detailing phase allows shop-specific preferences, connection standards, and equipment constraints to be incorporated proactively. This reduces approval cycles, resubmittals, and fabrication delays.
03
Implement Multi-Stage Drawing Reviews
A rigorous QA process with checker reviews, engineer approvals, and fabricator confirmations catches errors at every stage. Structured review gates ensure accuracy before drawings reach the shop floor.
04
Maintain a Live, Centralized Drawing Register
All stakeholders — engineers, detailers, fabricators, and contractors — must reference the same current drawing set. Cloud-based document management platforms ensure revision updates are communicated instantly across the project team.
Pro Tip: Anchor Bolt Plans
Anchor bolt plans are among the most error-prone deliverables. Always cross-reference column base plates, grout elevations, and hold-down details against structural and architectural drawings before issuing for fabrication.
Pro Tip: Camber & Sweep
Specify camber requirements clearly on erection drawings. Undocumented camber expectations are a leading cause of field fit-up disputes between fabricators and erectors.
Pro Tip: Erection Sequence
Include phased erection sequences in complex structures. Sequencing clarity prevents field modifications and reduces the risk of temporary instability during construction.
Strategic Value of Steel Detailing
Precision in Detailing Is an Investment, Not an Overhead
Accurate steel detailing is not simply a technical deliverable — it is a strategic investment that protects project budgets, compresses schedules, and safeguards structural quality. Teams that treat detailing as a commodity service invariably pay far more in downstream corrections than they saved upfront.
Reduced Rework Costs
Catching a detailing error before fabrication costs a fraction of correcting it in the shop — and a tiny fraction of fixing it in the field. Early accuracy is always the most economical path.
Faster Project Delivery
Precise, coordinated shop drawings reduce RFIs, shorten approval cycles, and enable fabricators to meet production schedules — keeping the entire project timeline intact.
Stronger Stakeholder Confidence
Clean, coordinated drawing packages build trust among engineers, contractors, and project owners — reducing friction and improving collaboration across complex projects.
Key Takeaway
Whether you're managing a multi-story commercial structure or a complex industrial facility, the message is clear — invest in accurate steel detailing from the outset. Partner with experienced detailing professionals who combine technical rigor with modern BIM and CAD workflows to deliver fabrication-ready documentation that performs in the real world.
