Composite Floor Deck Layout Planning for Commercial Buildings

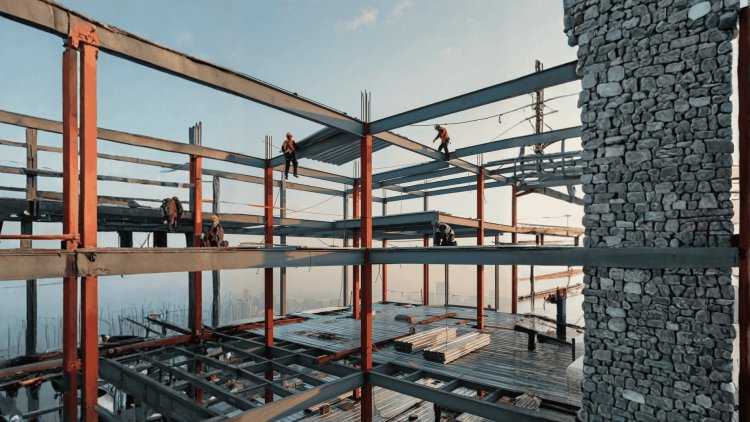

Effective composite floor deck layout planning is one of the most consequential—and frequently underestimated—phases of commercial structural design. Before a single piece of metal deck is ordered or a shear connector is specified, the decisions made on the layout drawing will define structural performance, construction sequencing efficiency, material waste, and long-term serviceability of the entire floor system. This presentation walks structural engineers, detailing engineers, and experienced construction planners through the core principles, strategic decisions, and coordination requirements that define high-quality composite deck layout planning for commercial buildings.
What Is Composite Floor Deck Layout — and Why Does It Matter?
Composite floor deck layout is far more than a drawing exercise. It is the structural roadmap that defines how steel deck panels, concrete slabs, shear connectors, and supporting steel framing work together as a unified floor system. Every decision made during the layout phase influences structural performance, construction efficiency, material quantities, erection sequencing, and long-term building reliability.
Steel And Concrete Become One Structural System
Composite action occurs when steel beams, steel deck, concrete topping, and shear connectors work together to resist loads, delivering significantly greater stiffness and load capacity than individual components acting independently.
How Composite Action Works
Each composite deck profile includes manufacturer Span-Load Tables per SDI and AISI standards. These define maximum beam spacing for given gage, concrete weight, slab thickness, and loading — with or without shoring. Layout engineers must cross-check framing bay size before finalizing deck gage. Ignoring unshored construction loading often leads to underperforming spans.
Always verify against project-specific SDI certified load tables for the selected deck product.
Cambered beams offset dead load deflection but complicate deck bearing and attachment. Two common coordination failures:
Deck panels must terminate properly at column lines. Unsupported overhangs cannot transfer diaphragm forces. Closure plates or angles at column flanges are required when deck ends do not bear directly on beams. These details must be coordinated with the structural engineer and shown explicitly on drawings.
Always verify unshored loading against manufacturer span-load tables — this condition often governs deck gage selection. Proper coordination of beam spacing, camber, and bearing ensures structural integrity and prevents costly field corrections.
Framing Grid Coordination: Beam Spacing, Camber & Bearing Conditions
Beam Spacing and Deck Span Limits
Camber, Deflection & Bearing Width
Column Lines and Deck Termination
Key Insight
Composite deck projects often succeed or fail at their edges. While span design and deck selection attract the most attention, perimeter conditions, slab openings, closure details, and re-entrant corners are where construction problems most frequently emerge. Proper edge detailing prevents concrete leakage, controls cracking, maintains diaphragm continuity, and ensures all trades can execute their work without costly field modifications.
Pour stops, slab openings, closure plates, and perimeter details determine whether a deck system can be installed cleanly, poured safely, and perform structurally as intended throughout its service life.
Pour stops act as temporary and permanent slab-edge containment systems during concrete placement. Typically formed from cold-formed angles or purpose-built steel sections, they prevent wet concrete from flowing beyond the slab boundary while establishing the final slab profile.
Where slab edges support façade systems, curtain walls, or exterior cladding anchors, a simple sheet-metal pour stop is often insufficient. Structural edge beams and support details must be coordinated to transfer both diaphragm forces and façade loads.
Edge Conditions, Pour Stops & Slab Boundary Details
Most Field Problems Start At The Edges
Four Essential Boundary Conditions
Perimeter Pour Stops
Important Coordination Requirement
A construction-ready composite deck layout must communicate more than panel locations. It needs to coordinate deck geometry, attachments, openings, concrete requirements, and the actual sequence in which the structure will be erected and poured.
The deck layout should be finalized and coordinated before material procurement and field erection reach the affected work areas. Late revisions can create material waste, fabrication changes, and cascading delays to the concrete framing schedule.
A composite deck layout is both a structural document and a field execution tool. When drawing content, erection sequence, concrete placement, temporary loading, shoring, and issue dates are coordinated as one workflow, the project team can minimize fabrication changes, reduce field conflicts, and keep the concrete framing operation moving predictably.
Layout Planning Best Practices & Construction Sequencing
Documentation Standards for the Layout Drawing
Layout Release Path
Coordinate the Issue Date with Steel Erection
