Installation Guide
Introduction: Why Getting the Installation Right Matters
Wood nailer joist systems are critical structural components that directly influence building performance, durability, and compliance across all construction types.
Structural Integrity
Proper installation ensures the system performs under design loads without excessive deflection, vibration, or long-term structural failure risks.
Code Compliance
Following correct installation procedures ensures alignment with IBC and local building codes, reducing inspection risks and approval delays.
Cost Efficiency
Correct installation from the start eliminates rework, reduces delays, and avoids costly post-construction remediation or structural corrections.
Structural Systems Guide
Understanding Wood Nailer Joist Systems
Wood nailer joist systems combine steel framing with timber interfaces to create reliable attachment surfaces for roofing, flooring, and mechanical assemblies.
What Is a Wood Nailer Joist System?
A hybrid structural assembly where wood nailers are integrated with steel or composite joists to provide a secure fastening surface for building components and finishes.
How It Works
The wood nailer is fixed to steel joist top chords using bolts or anchors, creating a continuous interface for attaching decking, insulation, and roofing systems.
Common Applications
Used in low-slope roofing, mezzanine floors, open-web steel joist systems, and industrial warehouse framing where continuous fastening surfaces are required.
Key Components
Includes dimensional lumber nailers, steel joist top chords, anchor or through-bolts, and lateral bracing systems that ensure structural stability and load transfer.
Installation Planning
Pre-Installation Checklist: Laying the Groundwork
Proper preparation before installation ensures structural accuracy, reduces field errors, and prevents costly rework during construction execution.
Review Structural Drawings
Confirm nailer size, grade, spacing, and layout as specified by the structural engineer. Verify spans, bearing conditions, and approved shop drawings before installation begins.
Verify Material Specifications
Inspect lumber for correct species, grade, and moisture content (≤19%). Reject warped, cracked, or defective members before installation reaches the deck.
Confirm Joist Delivery and Layout
Ensure steel joists are correctly sized, oriented, and positioned. Verify bearing seats are level, supported, and aligned with the approved framing plan.
Check Fastener and Hardware Inventory
Confirm all specified anchor bolts, through-bolts, and fasteners are available on-site. Never substitute hardware without engineer approval.
Site Preparation & Safety
Site Conditions & Safety Preparation
Proper site readiness and strict safety protocols ensure smooth installation, reduced risk, and uninterrupted coordination between all trades on-site.
Site Readiness Assessment
Prior to installation, evaluate structural stability, working clearances, and access conditions. Ensure shoring is installed where required and coordinate all adjacent trades to avoid conflicts during joist and nailer placement.
- Verify bearing walls and supporting structure are approved
- Confirm crane or lift access for joist delivery and setting
- Identify utility and mechanical conflicts in framing zones
- Ensure adequate lighting for elevated precision work
Safety Protocols
Worker safety is non-negotiable during elevated framing operations. All fall protection systems must be installed, inspected, and fully operational before installation begins.
- Mandatory PPE: hardhats, gloves, safety glasses
- Fall arrest systems required above 6 feet (OSHA 1926.502)
- Toolbox talks for overhead hazards and equipment use
- Designated safety officer present during joist setting
Installation Workflow
Step-by-Step Installation Checklist
A structured installation sequence ensures structural integrity, reduces field errors, and maintains compliance with engineering and fabrication requirements.
01. Set and Brace Steel Joists
Position joists per framing plan and install temporary bridging immediately. Never leave joists unbraced during erection stages.
02. Position Wood Nailers
Center nailers on joist top chords. Ensure alignment per drawings and place splices only over bearing supports.

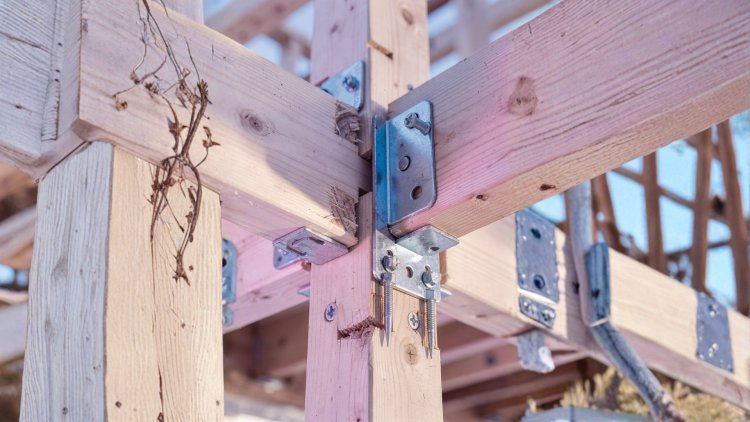

03. Fasten Nailers to Joists
Use specified fasteners and spacing. Avoid overtightening to prevent splitting. Follow torque requirements where applicable.
04. Install Bridging & Bracing
Complete all permanent bridging and lateral bracing per manufacturer specifications to ensure structural stability under load.
05. Verify Alignment & Level
Use laser leveling to confirm uniformity across the assembly. Correct deviations before decking installation proceeds.
06. Document & Inspect
Inspect all assemblies before covering. Document field conditions and photograph critical connections for project records.
Risk Prevention Guide
Common Installation Mistakes — and How to Avoid Them
Most field issues are preventable. Identifying these common installation mistakes early helps maintain structural integrity, safety, and compliance.
Splicing Nailers Mid-Span
Nailer splices must occur over bearing points only. Mid-span splices create weak zones that can lead to uplift failure and structural instability under load.
Incorrect Fastener Type or Spacing
Substituting fasteners or altering spacing reduces load transfer capacity. Always follow engineer-approved hardware specifications and fastener schedules.
Using Wet or Defective Lumber
High-moisture or defective lumber leads to shrinkage and loosening of connections. Always verify moisture content and proper on-site storage conditions.
Delayed Bridging Installation
Failing to install bridging immediately after joist setting can cause rollover and instability. Temporary and permanent bracing must be installed before loading.
Advanced Installation Scenarios
Special Conditions: Curved, Sloped & Cantilevered Systems
Non-standard geometries introduce structural complexity that requires enhanced coordination, precise leveling strategies, and strict adherence to engineered design intent.
Sloped & Tapered Conditions
For low-slope roof systems, ensure consistent drainage slope alignment with design intent. Use shimming or tapered blocking as required by structural specifications.
- Verify top-of-steel elevations at each support
- Confirm slope direction and drainage layout
- Use tapered blocking to maintain level nailer surfaces
Cantilevered & Complex Framing
Cantilever conditions introduce reverse moment forces that demand strict nailer continuity and enhanced fastening strategies at transition zones.
- Ensure full-length nailer continuity over cantilevers
- Increase fastener density at back-span transitions
- Require engineer approval before field modifications
Digital Construction Workflow
The Role of BIM and Structural Detailing in Nailer Systems
BIM-driven coordination and structural detailing ensure wood nailer systems are fully resolved in digital space before fabrication and installation begin.
3D Clash Detection
BIM models identify spatial conflicts between nailers, mechanical systems, and structural elements before construction, reducing rework and coordination delays.
Precise Shop Drawings
BIM-generated structural shop drawings ensure fabricators and field crews work from coordinated, up-to-date information, minimizing errors and misinterpretation.
Constructability Review
BIM-enabled constructability reviews optimize installation sequencing, material selection, and field execution to ensure real-world feasibility before construction begins.
Quality Assurance
Post-Installation Inspection Checklist
Final inspection ensures the installed wood nailer joist system meets structural, alignment, and safety requirements before it is covered or loaded.
Nailer Alignment & Continuity
Confirm all nailers are straight, continuous, and properly spliced over bearing points. Check for bowing, misalignment, or tolerance deviations.
Fastener Inspection
Verify all fasteners are correctly spaced, fully seated, and torqued. Check for missing fasteners, split lumber, or installation defects.
Bridging Completeness
Ensure all permanent bridging and bracing is installed per manufacturer specifications. No temporary bracing should remain in service condition.
Documentation & Reporting
Photograph all connections, splices, and field conditions. Submit final inspection reports to project stakeholders and engineering authority.
Project Guidance
Key Takeaways for Your Next Project
Successful wood nailer joist installation depends on disciplined execution across every phase — from planning to documentation.
Start With a Complete Pre-Installation Review
Verify drawings, materials, and site conditions before work begins. A few hours of review prevents days of rework.
Never Skip Bridging
Temporary and permanent bridging are non-negotiable structural requirements — install them immediately and completely.
Follow the Spec — Always
Fastener types, spacing, and lumber grades are engineered decisions. Any substitution requires engineer approval.
Document Everything
Photographic records and inspection reports protect all parties and support future maintenance or modifications.
Professional Insight
Investing in detailed structural BIM coordination and shop drawing review before mobilization dramatically reduces field conflicts, change orders, and schedule delays on nailer joist projects of any complexity.
