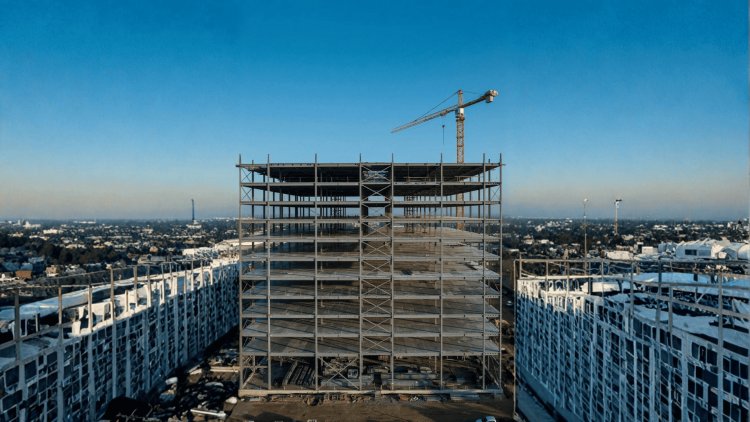

Steel Deck Design Coordination with Structural Bay Planning
Achieving a clean, efficient steel deck layout is not simply a matter of selecting the right deck profile and calling it done. The real complexity lives at the intersection of structural bay geometry, joist spacing, support framing orientation, and the cascading downstream effects those decisions create for detailers, fabricators, and project coordinators. This presentation breaks down the critical coordination disciplines required to align steel deck design with structural bay planning — covering span direction logic, edge-of-deck termination strategies, bay-level dimensional control, and the communication protocols that keep field installation on schedule and on spec.
Why Bay Geometry Drives Deck Layout Decisions
Before the first deck panel is placed, the structural bay grid determines nearly every downstream decision. Span direction, panel lengths, cuts, laps, diaphragm continuity, and field installation efficiency all originate from bay geometry.
Bay Geometry Controls Everything
Perpendicular to Joists
Most floor deck systems span across joists while remaining parallel to primary beams. This typically creates the most efficient load path, best composite behavior, and simplest erection sequence.
Complex Bay Geometry
Re-entrant corners, irregular columns, L-shaped floor plates, and framing direction changes often require special orientation analysis before deck detailing begins.
Bay Aspect Ratio & Panel Economy
Deck termination conditions affect bearing capacity, concrete containment, diaphragm continuity, and installation quality. Resolve them on the drawings—not during the pour.
Pour-stop height must match the total slab thickness above the deck flute. Cell closures or end closures must match the selected profile and be shown on the erection drawings to prevent concrete leakage and edge-depth deficiencies.
Sidelap fastener type and spacing—whether screwed, welded, crimped, or button-punched—are diaphragm design inputs. Show the required pattern explicitly instead of allowing a default installation pattern to replace the engineer’s assumptions.
Endlaps must align with joist or beam flange locations. A joint placed in midspan creates an unsupported connection, conflicts with installation requirements, and can invalidate diaphragm calculations. Coordinate lap length with the available support width and selected product.
Before release, check every termination, pour stop, closure, sidelap, and endlap against the structural drawings, deck profile, manufacturer requirements, and actual support layout.
Treat termination conditions as structural details. A deck panel that bears, laps, closes, and fastens exactly as designed is more likely to perform as assumed—and far less likely to generate installation RFIs or concrete-placement failures.
Deck Termination, Edge Conditions & Bearing Control
Coordinate Pour Stops and Closures
Use the Designed Fastening Pattern
Keep Panel Joints Supported
The Coordination Rule
Steel deck span capacity depends on profile, gauge, span condition, and applied loading. The relationship between joist spacing and allowable deck span creates a tight coordination loop between structural engineers and deck detailers.
Column spacing, beam layout, and design loads establish the framework. Joist spacing is selected based on demand and economy.
Detailer references SDI or manufacturer span tables to confirm the chosen profile spans the joist spacing under construction and service loads.
If span tables show inadequacy, options include increasing gauge, reducing joist spacing, or changing profile — each with cost and schedule implications.
Final drawings reflect confirmed span direction, panel layout, fastener patterns, edge conditions, and special details for openings and elevation changes.
During concrete placement, the deck carries wet concrete plus live load — often more demanding than in-service conditions. SDI’s Manual provides distinct construction load span tables. Compliance under both regimes must be confirmed to avoid ponding and overload.
Beams and joists are often cambered to offset deflection. Camber creates a convex bearing surface affecting deck seating and slab thickness uniformity. Coordinators must ensure combined effects of camber and deflection do not exceed ±3/8 inch in 10 feet per ACI 117 tolerances.
Joist Spacing, Deck Span Tables, and the Coordination Loop
Structural Engineer Sets Bay Grid
Deck Profile and Gauge Selected
Coordination Review & Conflict Resolution
Issued-for-Construction Deck Drawing
Construction Stage Loading — A Critical Checkpoint
Camber Coordination with Deck Flatness
Openings interrupt structural continuity, deck spanning behavior, and diaphragm force paths. Successful steel deck detailing depends on coordinating framing, deck termination, and lateral-force transfer around these high-risk zones long before construction begins.
Headers support cut deck edges and transfer interrupted deck loads back into the primary framing system. Opening dimensions on deck drawings must match structural header framing exactly.
Openings near joist lines can use existing framing members. Openings at mid-bay require larger standalone headers and typically increase structural steel tonnage.
Opening edges require dedicated termination details such as bent plates, edge angles, and closure elements. Rib direction must be evaluated independently on every opening edge.
Large openings remove effective diaphragm width. Additional fasteners, drag struts, and reinforced chord regions may be required to preserve lateral-force transfer.
Opening Coordination and Framing Headers in the Bay Grid
Openings Disrupt the Structural Network
Header Framing
Bay Grid Position
Deck Termination
Diaphragm Continuity
Opening Location Influences Framing Cost
Steel deck scopes most often fail at the handoffs between disciplines. A formal review cycle, shared document set, and clear RFI process protect the design from coordination seams.
Coordinate the deck drawing with approved joist and beam shop drawings, not just the structural design set. Fabricated dimensions, camber, connection details, and bearing plates can differ from the original design assumptions.
Align the forming plan, pour stops, placement sequence, and deck layout before concrete work begins. Placement sequence affects construction-stage loading, deflection, and ponding.
Maintain a dedicated deck RFI log tied to the affected bay, floor, and sheet. When an RFI changes an opening, joist spacing, header, or edge condition, propagate the revision to every affected document.
Bring the installer, GC superintendent, structural engineer, and concrete subcontractor together before the first panel is placed.
Good coordination is not a final administrative step. It is the mechanism that keeps design intent, fabricated geometry, deck installation, and concrete placement aligned from the first drawing revision through the final pour.
Communication Protocols and Drawing Coordination
Cross-Reference Fabricated Conditions
Coordinate the Pour
Manage RFIs Across the Document Set
90-Minute Agenda
The Coordination Principle
