Common Errors in Raster to CAD Conversion and How to Avoid Them
Converting raster images to CAD drawings is essential for modernizing legacy designs, but the process isn't without challenges. This presentation walks through the most common conversion pitfalls and provides practical solutions to ensure your projects maintain accuracy, quality, and usability

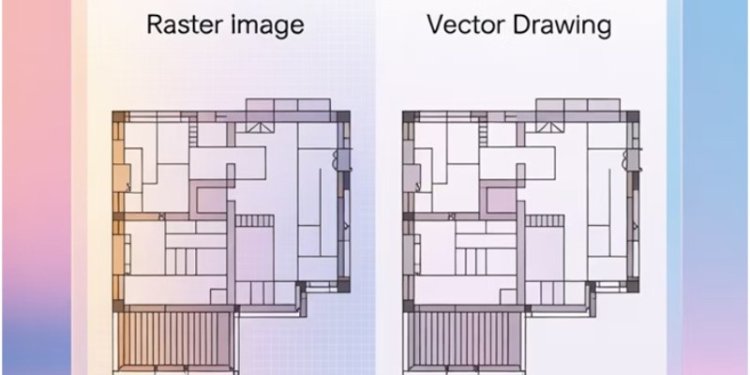

Understanding Raster vs. Vector Files
Raster Images
- Made of individual pixels (bitmap)
- Resolution-dependent
- Common formats: JPEG, PNG, TIFF
- Lose quality when scaled
Vector Files (CAD)
- Made of mathematical paths
- Resolution-independent
- Common formats: DWG, DXF
- Can be scaled infinitely
Top 5 Raster to CAD Conversion Errors
-
1. Poor Source Image Quality
Low-resolution scans, faded documents, or images with stains lead to misinterpretation during conversion.
-
2. Inaccurate Scale Calibration
Failing to properly set the drawing scale results in incorrectly sized elements that render the CAD file unusable for precise construction or manufacturing.
-
3. Line Work Misinterpretation
Automated conversion tools often struggle to distinguish between actual design elements and document artifacts like fold marks, coffee stains, or notes.
-
4. Text Recognition Errors
Dimensions, annotations, and labels frequently convert incorrectly, especially with handwritten notes or specialized technical symbols.
-
5. Layer Organization Problems
Conversion without proper layer planning creates disorganized CAD files that are difficult to work with and don't follow industry standards.
Solutions and Best Practices
|
|
|
Manual vs. Automated Conversion
| Consideration | Manual Redrawing | Automated Conversion |
|---|---|---|
| Time Required | High (days to weeks) | Low (hours to days) |
| Cost | Higher labor costs | Lower upfront cost |
| Accuracy | High with skilled drafters | Variable, requires QC |
| Best For | Complex, detailed drawings | Simpler drawings, high volume |
| Quality Control | Ongoing during creation | Required post-conversion |
Key Takeaways & Next Steps
-
Quality In = Quality Out
Invest time in preparing high-quality source images and clearly defining your project requirements. -
Use the Right Tools
Select conversion software appropriate to your project's complexity and budget. -
Verify Everything
Always perform thorough quality control checks after conversion, comparing against the original documents.
Ready to Start Your Conversion Project?
-
Audit your existing drawings and prioritize which to convert first.
-
Establish CAD standards for your organization (layers, line weights, text styles).
-
Create a test case with one representative drawing before proceeding with bulk conversion.
-
Develop a quality control checklist specific to your industry needs.
Your successful digital transition starts with getting the conversion right!
