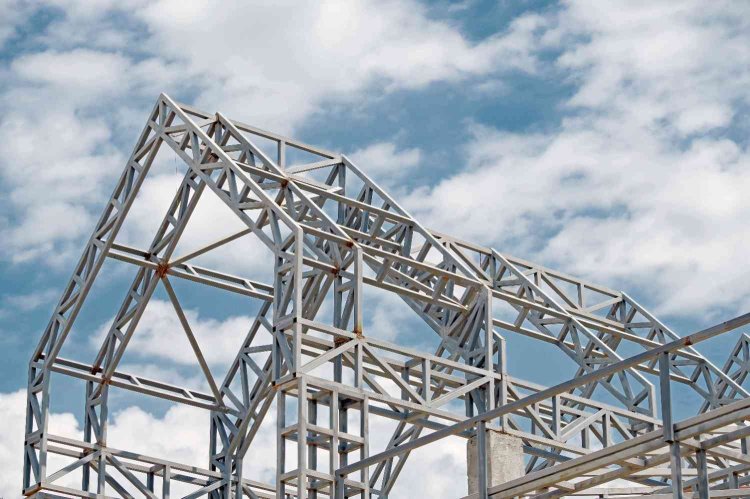

Advanced Connection Techniques for Light Gauge Steel Framing
Practical detailing insights for structural engineers working with light gauge steel systems in today’s demanding construction environment.
Why Connection Details Matter in Light Gauge Steel
Light gauge steel (LGS) framing has become a cornerstone of modern construction, offering exceptional strength-to-weight ratios, dimensional stability, and fire resistance. However, the performance of any LGS system hinges on one critical factor: the quality and appropriateness of its connections.
Unlike traditional structural steel with its robust welded or bolted connections, light gauge steel presents unique challenges. The thinner material requires specialized fastening techniques, careful load path consideration, and meticulous detailing to achieve true structural integrity.
Structural Integrity
Properly detailed connections ensure effective load transfer between framing members, maintaining overall system stability and preventing localized failures.
Code Compliance
Accurate connection detailing ensures compliance with AISI S100 and local building code requirements, supporting smooth approvals and inspections.
Screw Connection Fundamentals
Self-drilling and self-tapping screws remain the most common fastening method in LGS construction. Understanding proper screw selection, spacing, and installation techniques is essential for achieving design capacity and preventing connection failure.
Screw Selection
Choose appropriate screw diameter, length, and head style based on material thickness and connection type. #10 and #12 screws are most common for structural connections, with drill point length matched to combined material thickness.
Edge Distance
Maintain minimum edge distances of 3 times the screw diameter to prevent edge tear-out. For members in tension, increase to 1.5 inches from the edge. Proper edge distances prevent premature failure and ensure full connection capacity.
Spacing Requirements
Space screws to distribute loads without causing member distortion. Typical spacing ranges from 6–12 inches on center, depending on load magnitude and configuration. Avoid over-tightening, which can strip threads or dimple the steel.
Clinching and Fastening Alternatives
Mechanical Clinching
Clinching creates a mechanical interlock between steel sheets without additional fasteners. This cold-forming process uses specialized tooling to join materials through localized deformation, creating strong, permanent connections.
Advantages include elimination of screw costs, no pre-drilling requirements, and consistent quality when automated. However, clinching requires access to both sides of the connection and may not be suitable for all load conditions.
Resistance Welding
Spot welding and seam welding offer high-strength alternatives for factory-fabricated assemblies. While requiring specialized equipment, these methods provide excellent strength and durability for repetitive connection patterns in panelized construction.
Track-to-Stud and Stud-to-Sheathing Details
The intersection of tracks and studs represents a critical load path in LGS systems. Proper detailing at these locations ensures axial load transfer, prevents buckling, and maintains system integrity under lateral loads.
Track Connection Pattern
Fasten studs to tracks with a minimum of two screws per connection. Position screws through the stud flanges into the track, avoiding the web which can cause eccentric loading and premature failure.
Load-Bearing Considerations
At load-bearing walls, increase fastener density and consider using nested studs or back-to-back configurations. Reinforcement plates at concentrated load points help distribute forces effectively.
Sheathing Attachment
Structural sheathing provides lateral bracing and distributes diaphragm loads. Specify appropriate screw sizes: #8 for 33-mil studs, #10 for thicker members, with edge spacing of 6 inches and field spacing of 12 inches.
Panel Edge Details
Always provide blocking or continuous framing at panel edges to ensure proper load transfer. Edge nailing patterns are critical for diaphragm performance and must follow manufacturer specifications and code requirements.
Addressing Corrosion and Durability Concerns
Key strategies to protect steel connections in challenging environments
Light gauge steel connections face unique durability challenges, particularly in coastal, industrial, or high-humidity environments. The thin galvanized coating can be compromised during fabrication and installation, creating vulnerability to corrosion.
Protection Strategies
- Specify minimum G60 galvanized coating for standard applications and G90 for exterior or corrosive environments.
- Use compatible fasteners with appropriate coatings to prevent galvanic corrosion between dissimilar metals.
- Apply cold galvanizing spray to damaged areas where coating has been scratched or abraded during installation.
- Consider stainless steel fasteners for highly corrosive environments despite higher material costs.
Dissimilar Materials
Isolate steel connections from concrete, masonry, or treated wood using gaskets or barriers. Direct contact can accelerate corrosion through moisture retention and chemical interaction.
Moisture Management
Design connections to shed water and prevent ponding. Avoid horizontal surfaces where moisture can accumulate, and ensure adequate drainage paths in wall assemblies.
Seismic and High-Wind Connection Design
In regions subject to seismic activity or extreme wind events, connection design becomes even more critical. Standard connection details may prove inadequate for the cyclic loading and increased force demands present in these conditions.
Seismic Considerations
Ductility is paramount in seismic design. Connections must accommodate drift and cyclic loading without brittle failure. Specify hold-downs, shear anchors, and strap ties that meet tested performance criteria. Connection detailing should allow energy dissipation through controlled yielding rather than sudden failure.
Wind Uplift Resistance
High-wind regions require enhanced anchorage and continuous load paths from roof to foundation. Increase fastener density at critical locations, particularly at roof-to-wall and wall-to-foundation interfaces. Hurricane ties, straps, and holdowns must be properly sized and installed with attention to load path continuity.
Testing and Verification
For critical applications, specify tested and code-approved connection assemblies. Many manufacturers provide ICC-ES evaluation reports documenting connection performance. Reference these reports in construction documents to ensure proper product selection and installation procedures are followed on site.
Key Takeaways for Structural Engineers
Mastering light gauge steel connections requires understanding material behavior, code requirements, and practical installation constraints. The techniques discussed here form the foundation for reliable, durable LGS systems.
Detail Thoroughly
Provide clear, comprehensive connection details in construction documents. Specify fastener types, sizes, spacing, and installation requirements explicitly to prevent field errors.
Coordinate Early
Engage contractors, fabricators, and specialty consultants during design development. Early coordination prevents constructability issues and ensures design intent translates to the field.
Verify Compliance
Ensure all connections meet AISI S100 standards and local code requirements. Stay current with code updates and industry best practices through continuing education.
Inspect Carefully
Connection quality directly impacts structural performance. Implement inspection protocols to verify proper fastener installation, spacing, and edge distances during construction. By applying these advanced connection techniques and maintaining rigorous attention to detail, structural engineers can confidently design LGS framing systems that perform reliably throughout their service life.
