Introduction: Why Wood Nailer Detailing Matters
Small structural details often define project success. Wood nailers may appear simple, but they directly influence performance, durability, and constructability.
Design Accuracy
Precise wood nailer detailing prevents field conflicts, minimizes RFIs, and reduces costly rework during construction execution.
Structural Integrity
Properly specified nailers ensure roofing and wall assemblies perform safely under real-world loads, wind, and environmental conditions.
Long-Term Performance
Well-documented detailing improves maintenance efficiency, simplifies retrofits, and extends the lifecycle performance of building systems.
Structural Envelope Basics
What Are Wood Nailers — and Where Are They Used?
Wood nailers are small but critical structural elements that enable secure attachment of roofing and envelope systems to primary building substrates.
Common Applications
Roof edges and parapets, expansion joints, mechanical curbs, wall cladding systems, and skylight or roof penetration framing assemblies.
Why Industrial Buildings?
Industrial facilities face large spans, heavy mechanical loads, vibration, and thermal cycling — making nailer detailing more critical and complex than standard buildings.
Industrial Case Study

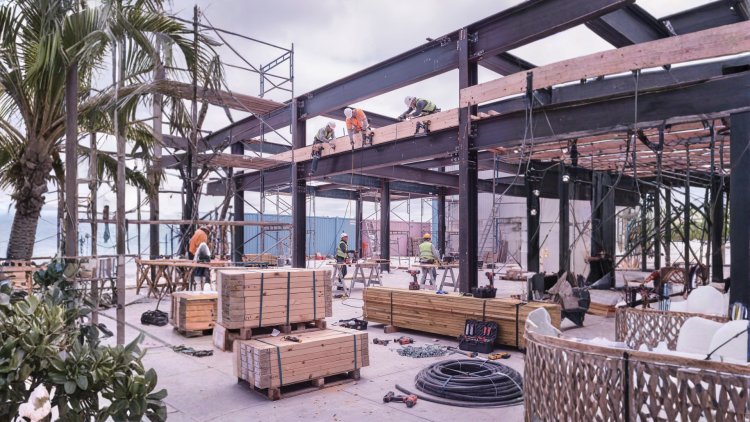

The Project Scenario: A Large-Scale Industrial Facility
A real-world warehouse project demonstrates how early detailing decisions directly influence construction efficiency and coordination success.
Project Discovery
Multiple roof edge conditions identified requiring unique wood nailer assemblies across varying parapet heights.
Initial Documentation
Early drawings lacked nailer sizing, species, and fastening schedules — flagged during constructability review.
Detailing Intervention
Structural detailing team produced complete shop drawings with connection details, specs, and coordination inputs.
Field Execution
Installation completed with zero RFIs and ahead of schedule due to fully coordinated detailing and documentation.
This sequence reflects a consistent industry pattern — early investment in detailing and coordination directly translates into faster, cleaner, and more predictable construction outcomes.
Site Engineering Challenges
Key Detailing Challenges Encountered on Site
Real-world industrial projects reveal recurring complexities that must be addressed through precise structural and BIM-driven detailing.
Parapet Height Variability
Varying parapet heights required unique nailer stack configurations to ensure continuous, code-compliant flashing termination across elevations.

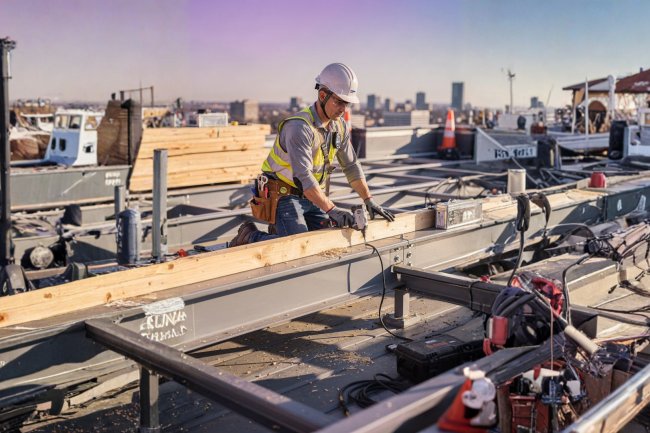

Thermal Movement at Steel Edges
Expansion and contraction in steel required slip joints and oversized fastener slots to prevent membrane cracking and connection failure.
Moisture & Decay Resistance
Pressure-treated lumber with specified preservative retention levels was required in all moisture-prone and concrete-adjacent locations.
Coordination with MEP Curbs
Over 40 mechanical curbs required precise cross-referencing with MEP drawings to ensure accurate nailer sizing and placement.
CAD / BIM Workflow
How Detailing Was Approached
A BIM-first workflow enabled precise coordination, reduced field uncertainty, and ensured fabrication-ready detailing for complex wood nailer conditions.
BIM Coordination First
A 3D BIM model was used to identify all nailer locations in context, resolving clashes with steel framing, decking, and MEP systems before shop drawings began.
Parametric Modeling System
Custom Revit families were developed for stacked, tapered, and single-ply nailer configurations, enabling fast revisions and consistent documentation across the model.
Fabrication-Ready Shop Drawings
Drawings included material specs, fastener schedules, substrate connections, expansion details, installation sequencing, and full code compliance notes.
Material Engineering
Material Specification: Getting the Lumber Right
In industrial wood nailer systems, correct material selection is critical to ensure durability, structural integrity, and long-term performance under environmental stress.
Species Selection
Douglas Fir and Southern Yellow Pine are preferred for their high density, superior nail-holding strength, and reliable performance in treated industrial applications.
Treatment Requirements
AWPA UC3B or UC4A pressure-treated lumber is required for moisture-prone conditions, ensuring long-term resistance against decay and biological deterioration.
Dimensional Stability
Kiln-dried lumber reduces post-installation shrinkage, preserving membrane adhesion, flashing integrity, and long-term system performance.
Fastener Compatibility
Hot-dipped galvanized or stainless-steel fasteners are required with treated lumber to prevent corrosion and ensure long-term connection reliability.
Best Practices
Lessons Learned: Best Practices for Wood Nailer Detailing
These insights reflect repeatable success patterns across industrial-scale roofing and structural framing projects where precision detailing directly impacts field performance.
Never Use Generic Details for Complex Conditions
Standard manufacturer details are reference points only. Variable parapets, steel edges, and irregular curbs always require project-specific detailing solutions.
Coordinate Early with Roofing Contractor
Early alignment with roofing teams ensures nailer assemblies match membrane systems, avoiding costly field modifications and redesigns.
Integrate Nailer Details into BIM Model
Embedding nailer systems into BIM enables clash detection, quantity take-offs, and clearer coordination — significantly reducing RFIs.
Address Code Compliance Explicitly
Nailer details must reference IBC, ASCE 7, and FM Global requirements explicitly to ensure smooth permitting and inspection approval.
Consac Capabilities
The Role of Consac in Delivering Precise Structural Detailing
High-quality structural detailing is driven by disciplined workflows, BIM integration, and engineering precision — ensuring design intent is accurately translated into construction reality.
Architectural & Structural Detailing
Shop-drawing-quality documentation bridging design intent and construction execution, covering assemblies, connections, and envelope systems with precision and code compliance.
BIM & CAD Integration
Advanced BIM workflows enable clash detection, parametric modeling, and quantity take-offs, reducing design errors before they reach the construction site.
Digital Engineering Solutions
End-to-end digital deliverables streamline communication between architects, engineers, contractors, and facility owners across complex industrial projects.
Industrial Takeaways
Practical Takeaways for Your Next Industrial Project
Wood nailer detailing directly impacts envelope performance, waterproofing reliability, and long-term maintenance costs. These best practices help eliminate downstream construction risks.
Start With a Nailer Audit
Audit all roof edges, parapets, and equipment curbs before design completion to identify unique nailer conditions early and prevent downstream redesigns.
Build a Cross-Discipline Team
Integrate structural, architectural, and MEP coordination early to eliminate silo-based detailing and reduce field conflicts during construction.
Write a Clear Specification Section
Define lumber species, fasteners, treatments, and tolerances explicitly in specifications to eliminate ambiguity and prevent unauthorized substitutions.
Plan for Inspection Hold Points
Include nailer installation as a formal inspection milestone before roofing membranes are installed to ensure compliance and installation quality.
Conclusion
Details Define Project Outcomes
The case study reinforces a core construction principle: project performance is determined in the details. Wood nailer assemblies sit at the intersection of structural integrity, waterproofing reliability, and code compliance — demanding the same rigor as primary structural systems.
From precise material specifications and coordinated BIM modeling to shop-drawing-level documentation, thorough wood nailer detailing consistently delivers measurable outcomes — fewer RFIs, faster installation, and long-term envelope performance.
Key Takeaway
Whether managing a new industrial project or retrofitting an existing facility, prioritizing accurate wood nailer detailing during documentation is one of the most cost-effective decisions a project team can make. Partnering with experienced detailing professionals ensures both technical precision and real-world constructability.
