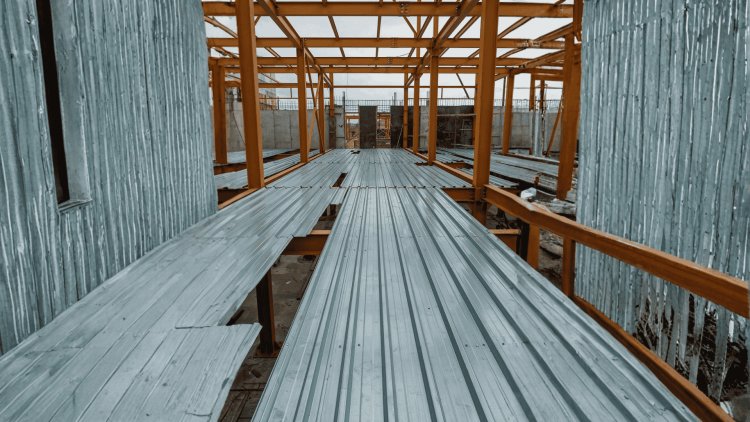

Steel Deck Design Assumptions That Should Be Clearly Noted
Every steel deck design rests on a web of engineering assumptions — load paths, diaphragm behavior, bearing conditions, and material properties that shape every subsequent calculation. When these assumptions go undocumented or are left ambiguous, they create risk downstream: detailers misinterpret intent, contractors substitute incompatible products, and inspectors have no baseline to verify against. This presentation identifies the critical design assumptions that must be explicitly noted on contract documents, shop drawings, and calculation packages — ensuring every stakeholder works from the same engineered foundation.
Why Undocumented Assumptions Create Downstream Risk
Assumptions that are never documented do not disappear. They travel through the project and eventually surface as risk, delay, or dispute.
The Assumption Cascade
Where Assumptions Travel
What Is Actually at Stake?
Before a deck profile is selected, the design must define the load and span assumptions that govern product choice, gauge, attachment spacing, and diaphragm contribution. These are engineering decisions, not defaults.
The key is simple: document the governing load case, identify any concentrated loads, match the span condition to the actual field layout, and define the SDL basis before the profile is selected. That keeps the deck design aligned with real construction conditions instead of optimistic assumptions.
Load and Span Assumptions: The Foundation of Every Deck Design
Steel deck often serves dual roles: gravity-carrying element and horizontal diaphragm. These functions carry independent design assumptions that must be explicitly documented to avoid coordination gaps between engineers, manufacturers, and erectors.
Minimum end bearing: 1½" on steel supports. Document assumed bearing length, especially at sloped conditions, skewed bays, or narrow flange members. Clarify whether deck attaches to all supports or selected supports, as skipping intermediate beams alters span assumptions.
Diaphragm chord forces must be resisted by identified chord members. Document which framing member serves as the chord and whether supplemental connection capacity is required. Omitting chord documentation is a common failure noted in peer reviews and plan checks.
Explicitly documenting diaphragm standards, fastener patterns, end bearing assumptions, and chord forces ensures coordination across engineering, manufacturing, and erection — preventing costly misinterpretations and structural failures.
Assumptions That Must Be Stated
Diaphragm Capacity Basis
Fastener Pattern and Type
End Bearing and Support Conditions
Perimeter and Chord Assumptions
Documenting specification assumptions early prevents substitution conflicts, RFIs, and unintended changes to structural performance.
Include a single deck schedule listing deck type, minimum gauge, steel grade, coating, and approved equivalents. One reference table can eliminate most substitution-related RFIs.
Material, Product & Substitution Assumptions
What Must Be Explicitly Defined?
What Happens When Assumptions Are Missing?
Critical design assumptions should appear explicitly on structural drawings, in general notes, or in the project specification — never left to inference. Use this as a quality-control tool before issuing for construction.
Documenting these assumptions is not administrative overhead — it is a professional responsibility. Clear, complete assumptions protect the structural system’s integrity, reduce construction-phase risk, and create a defensible record of engineering judgment.
When in doubt, note it. The cost of a single line in the general notes is orders of magnitude less than the cost of a design hold or a construction claim.
