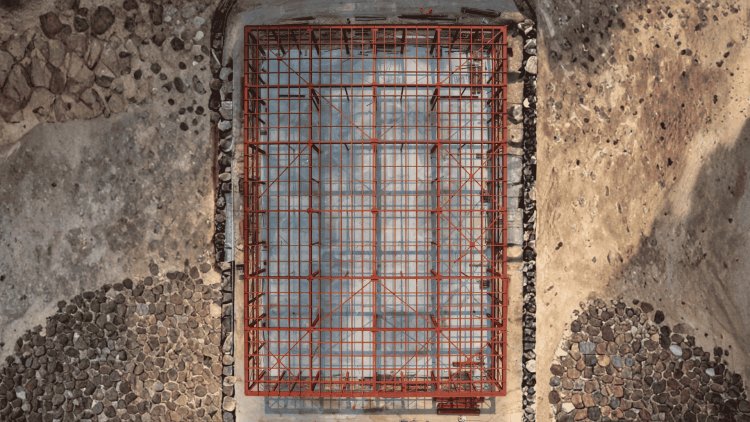

Roof Deck Support Conditions Around Perimeter Steel
A technical deep-dive into the critical interface between steel roof deck and perimeter structural members — covering bearing minimums, attachment sequences, edge trim selection, and the detailing decisions that determine long-term performance at the building envelope boundary.
Why Perimeter Support Conditions Demand Special Attention
The perimeter of a roof is where structural simplicity ends and risk begins. Interior panels benefit from continuous support and relatively predictable loading, but edge conditions introduce cantilevers, eccentric load paths, concentrated uplift forces, and complex roof-to-envelope interactions. As a result, perimeter detailing often governs overall roof system reliability and remains one of the most common sources of field failures when not properly addressed during design.
The Boundary Problem
At the building perimeter, roof deck panels terminate at the structure edge and lose the balanced support conditions found in the field of the roof. These locations must resist higher uplift forces while simultaneously transferring loads into beams, edge members, fascia systems, and enclosure components.
Continuous Support
• Balanced load distribution
• Lower uplift exposure
• Standard attachment spacing
• Predictable structural behavior
High-Risk Interface
• Cantilever effects
• Eccentric load paths
• Elevated wind uplift
• Complex enclosure connections
Edge Zones Experience Significantly Higher Uplift
Wind pressures at roof edges and corners routinely exceed those acting on the interior roof field. Attachment patterns that perform adequately in the field may be structurally insufficient at perimeter zones unless fastening layouts are recalculated specifically for those conditions.
Drainage and Ponding Risks Begin at the Edge
Improper perimeter slopes, missing edge cant details, or poorly coordinated tapered insulation systems can initiate chronic ponding conditions. Once water accumulation begins, additional dead load, membrane deterioration, and accelerated maintenance requirements often follow.
Perimeter details begin with verified bearing and end with the correct span assumption. Flange geometry, sheet termination, closure, laps, and load-table selection must describe the same physical condition.
Compare the panel end location with the actual beam flange width, skew angle, edge offsets, and any interference from fillets, clips, angles, or adjacent framing.
Where sheets meet at a perimeter support, specify whether they are butted or end-lapped. The choice affects closure, attachment, load transfer, installation, and the edge-angle interface.
Where continuity or load distribution requires it, the supplied criteria identify a standard 2-in. end lap. Coordinate lap location, rib alignment, fasteners, and support bearing on the placement plan.
The sheet terminates at the edge support and does not continue over another support. Treat it as a simple-span condition unless the approved design explicitly establishes another behavior.
A sheet continues over multiple supports and uses the corresponding continuous-span assumptions, attachments, sidelaps, and support-region checks.
Perimeter geometry is often less forgiving than typical interior framing.
Put the panel end on verified support, define whether the termination is butted or lapped, close and attach the final rib, and select the table that matches the actual single- or continuous-span behavior. Perimeter detailing is where geometry and structural assumptions must agree exactly.
Bearing Minimums, End Laps & Span Continuity
Verify Actual Flange Geometry
Define the Termination
Control End Laps
Perimeter Span Logic
Perimeter Review Workflow
Do Not Let the Edge Inherit an Interior Assumption
The Perimeter Principle
Perimeter deck attachment must satisfy wind uplift, diaphragm shear, and lateral force resistance simultaneously. Defaulting to interior field patterns like ASCE 7 defines three wind pressure zones: interior (Zone 1), edge (Zone 2), and corners (Zone 3). SDI DDM maps these to fastener patterns:
The edge beam acts as the diaphragm chord. Deck-to-beam connections transfer shear into the chord. Chord force and shear flow calculations must be documented on structural drawings — not left to subcontractor assumptions.
Fastener zone transitions must be shown explicitly on roof framing plans with legends. General notes alone are insufficient for quality control — engineered detailing at perimeter steel ensures structural reliability under wind and diaphragm demands.
Fastener Patterns & Attachment to Perimeter Steel
36/7 is insufficient — perimeter zones demand engineered detailing.
Puddle Welds vs. Mechanical Fasteners
Perimeter-Specific Attachment Zones
Diaphragm Shear at Perimeter Chords
Key Insight
Perimeter detailing is where structural engineering, roofing, enclosure design, and constructability intersect. While roof edge details may appear secondary compared to primary framing, many roof failures originate at this interface. Proper integration of edge angles, fascia systems, closure conditions, and wall support details is essential to ensure wind resistance, moisture control, structural stability, and long-term durability.
Typically detailed as a continuous structural angle such as L3×3×¼ or L4×3×¼ attached to the perimeter beam.
Serves as a weather barrier and architectural finish but should never be relied upon for primary structural load transfer.
One of the most common perimeter detailing errors is assuming architectural fascia systems can transfer deck uplift loads into the structure. Wind uplift resistance must be provided through engineered structural elements, not through roofing trim components.
Where roof deck extends beyond the perimeter beam to support architectural fascia systems, the deck becomes a cantilevered structural element. Cantilever length must be verified rather than assumed.
Edge Trim, Closure Conditions, and Fascia Integration
The Roof Edge Performs Multiple Functions Simultaneously
Edge Angle
• Transfers wind uplift loads
• Provides membrane termination support
• Creates reliable bearing conditions
• Part of the primary structural systemFormed Fascia Plate
• Conceals edge conditions
• Provides aesthetic appearance
• Supports weatherproofing
• Not a structural load pathFascia Metal Is Not a Structural Member
Architectural Fascia May Require Structural Analysis
The perimeter compresses bearing, uplift, chord force, shear flow, closures, membrane termination, and cantilever behavior into a narrow zone. Review it as a complete structural and roofing interface.
Verify that every perimeter panel achieves at least 1½ in. bearing on the supporting steel flange under the applicable SDI, product, and project requirements.
Calculate edge and corner uplift separately from the field condition using the adopted ASCE 7 provisions and project wind analysis.
Treat the perimeter angle as structural framing for bearing, wind-uplift transfer, chord force, and shear flow.
Provide rib closures at open perimeter ends and coordinate the closure type with the roofing assembly.
The membrane termination bar needs a continuous, structurally supported substrate.
Analyze any deck overhang beyond the perimeter beam using the actual cantilever condition and applicable product data.
Record the perimeter chord force in the structural calculations and cross-reference the governing edge detail on the drawings.
Show how deck-to-beam attachments transfer diaphragm shear into the perimeter frame; do not leave the connection capacity to the installer or fabricator.
If the answer depends on a general note or field judgment, the detail is not finished.
Verify support, zone the uplift, design the edge angle, close the ribs, support the membrane, check overhangs, and document the diaphragm load path. Perimeter quality is achieved when the structural calculation, shop drawing, installation plan, and roofing detail all describe the same edge.
Key Takeaways: Perimeter Support & Edge Control
Confirm Bearing
Zone the Attachments
Design the Edge Angle
Close the Ribs
Coordinate Membrane Termination
Check Cantilevers
Diaphragm Edge Documentation
Pre-Installation Perimeter Walkthrough
Would the Installer Know What Changes at the Edge?
The Perimeter Quality Principle
