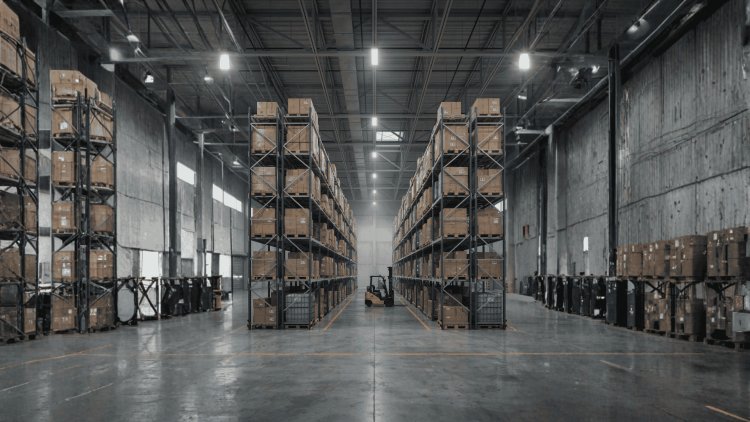

Composite Deck Detailing for Heavy Storage Areas

Heavy storage and industrial occupancies impose design demands that go far beyond the assumptions embedded in typical office or light-commercial composite deck specifications. Racking loads, forklift live loads, point loads from storage system uprights, and post-installed anchor demands all require a disciplined, detail-first approach — one where the structural engineer and detailing professional coordinate at every stage. This presentation unpacks the critical detailing considerations that govern composite deck performance in high-load storage environments, from slab thickness and deck profile selection to reinforcement strategies, shear connector placement, and connection details at supports.

Deck Design Sep 24, 2026 0 11 Add to Reading List

Composite Deck Detailing for Heavy Storage Areas

Heavy Storage • Composite Deck • Concentrated Load Design

Understanding the Load Environment: Why Standard Details Fall Short

Typical composite floor deck design references AISC, SDI, and ASCE 7 for uniform live loads in the range of 50–125 psf. Heavy storage occupancies routinely demand 250–500 psf or more — and often introduce concentrated loads that uniform-load design tables simply cannot address without modification.

Load Environment

Storage Quickly Moves Beyond Typical Floor Loading

50–125 psf

Typical Range

250–500 psf

Heavy Storage

500+ psf

Special Industrial

Storage Loading

Live Load Classes in Storage

125–150

PSF

Light Storage

Light storage: 125–150 psf — warehouse commodity storage, light racking

250–500

PSF

Heavy Storage

Heavy storage: 250–500 psf — pallet racking with full pallet loads, bulk storage

500+

PSF

Special Industrial

Special industrial: 500+ psf — paper rolls, liquid containers, heavy machinery

Structural Impact

Loading Drives the Entire Floor System

These loads directly dictate slab thickness, deck profile depth, joist spacing, and the extent of composite action required to achieve practical deflection limits.

Variable 01

Slab Thickness

Variable 02

Deck Profile

Variable 03

Joist Spacing

Variable 04

Composite Action

Localized Structural Demand

Concentrated Load Challenges

Storage rack uprights transfer their entire tributary load through a small base plate — commonly 4″ × 4″ to 6″ × 6″ — into the composite slab. This creates high punching shear stress demands at localized slab regions and often mandates post-installed anchor design per ACI 318-19 Chapter 17, independent of the composite beam design. Forklift dynamic loads introduce impact factors typically ranging from 25% to 100% of the static axle load, per ASCE 7-22 Section 4.7, and must be reflected in slab fatigue and bearing capacity checks. Detailers must clearly flag these load concentrations on structural drawings so that inspectors and contractors can ensure correct slab thickness, additional top reinforcement mats, and proper hardener or topping specifications are in place before pours.

Rack Load Transfer

Large Tributary Load. Very Small Footprint.

Rack Upright

4″ × 4″ to 6″ × 6″ Base Plate

Composite Slab

HIGH LOCALIZED PUNCHING SHEAR DEMAND

Uniform Loading

Distributed Across Area

Traditional published deck load tables commonly establish capacity for loads distributed across the floor surface.

Concentrated Loading

Focused Into a Small Area

Rack posts, forklifts, machinery, and similar loads require localized analysis beyond a simple uniform-load table check.

25–100%

Impact Factor Range Referenced in the Shared Design Criteria

Forklift Dynamic Loading

Forklift loading introduces a dynamic component beyond the static axle load. That additional demand must be reflected in slab fatigue and bearing capacity checks rather than treated as an ordinary stationary gravity load.

Drawing Coordination

Concentrated Loads Must Be Visible Before the Pour

Clearly flag concentrated load locations

Verify correct slab thickness

Show additional top reinforcement mats

Confirm hardener or topping specifications

Structural Reality

Heavy Storage Is Not Just a Higher Uniform Load

The defining challenge is the combination of elevated overall floor loading and severe localized demands from rack uprights, forklifts, industrial storage, and machinery. These conditions require deliberate analysis and explicit drawing coordination rather than simple selection from standard uniform-load tables.

Key Takeaway

Heavy Storage Floors Require Load-Specific Detailing

Standard composite deck details can fall short when storage loading rises far beyond ordinary occupancy demands and concentrated rack, forklift, or industrial equipment loads enter the floor system. Slab thickness, deck profile, joist spacing, composite action, reinforcement, bearing capacity, and localized load transfer must all respond to the actual storage environment. Clearly identifying these demands on structural drawings before concrete placement gives contractors and inspectors the information needed to construct the floor as designed.

Composite Deck Design

Deck Profile Selection and
Slab Thickness for High-Load Floors

Profile geometry and overall slab thickness are the two most consequential decisions in composite deck detailing for heavy storage. Both must be resolved early—before reinforcement or connection details can be finalized—because they establish the structural depth available, the effective concrete area in compression, and the deck's constructibility under construction loads.

1.5"

TYPE B

1.5″ Deck (Type B)

Suitable for lighter heavy-storage applications. Minimum total slab thickness of 4.5″ to 6.5″ recommended.

Key characteristics:

Limited rib geometry reduces effective composite section depth for high-moment demands
Typically requires closer joist spacing (≤8 ft) under heavy loads
Maintains beam deflection within L/360 with tighter framing
Best for lower end of heavy-storage load range

TYPE B/W

2″ Deck (Type B/W)

The most common profile for mid-range heavy storage (250–350 psf). Total slab thickness of 5.5″–7.5″ enables meaningful composite action.

Key characteristics:

Rib width and spacing allow adequate placement of shear stud connectors
Shear studs can be installed in single or paired configurations aligned with beam flange
Balances structural capacity with constructibility
Industry standard for 250–350 psf heavy storage floors

TYPE W

3″ Deck (Type W)

Preferred for deep composite sections in 400–500+ psf applications. Total slab thickness of 6.5″–9″+ accommodates heavy top reinforcement mats.

Key characteristics:

Accommodates heavy top reinforcement and post-installed anchor embedment depths
Longer spans between supports are achievable
Reduces joist count and connection complexity
Best choice for highest load demands and deepest composite sections

DESIGN PARAMETERS

Profile + Thickness = Structural Capacity

Resolve early

Profile Geometry Rib depth and spacing determine composite section depth and shear stud placement options.

establishes

Total Slab Thickness Sets effective concrete area in compression and available depth for reinforcement and anchors.

Both decisions must be resolved before reinforcement or connection details can be finalized.

MATERIAL SPECIFICATION

Concrete Strength Considerations

Normal-weight concrete (145 pcf) at f'c = 4,000–5,000 psi is the standard for heavy storage composite slabs. Lightweight concrete is generally avoided due to reduced punching shear capacity and lower modulus of elasticity—both detrimental under concentrated rack loads.

Critical requirement: Where post-installed anchors are critical, f'c ≥ 4,000 psi is recommended and should be explicitly noted on the general notes sheet and pour schedule.

CODE COMPLIANCE

Minimum Cover and Fireproofing

SDI and ACI 318-19 require a minimum of ¾″ concrete cover above the top of the deck flutes for structural slabs. For heavy storage with post-installed anchors, cover above top reinforcement must satisfy both structural and fire-rating requirements simultaneously.

Fire rating coordination: Where a 2-hour fire rating is required, total slab thickness must meet SDI fire-rating tables—coordinate with the deck manufacturer's tested assembly data to confirm.

Profile Selection Guide by Load Demand

Profile	Typical Load Range	Total Slab Thickness	Joist Spacing Guidance	Best Use Case
1.5″ Type B	Lighter heavy-storage	4.5″ – 6.5″	≤8 ft for heavy loads	Lower load demands, tighter budgets
2″ Type B/W	250–350 psf (mid-range)	5.5″ – 7.5″	Standard spacing	Most common heavy storage applications
3″ Type W	400–500+ psf (high-end)	6.5″ – 9″+	Longer spans achievable	Highest loads, deep composite sections, reduced joist count

DESIGN SEQUENCE

Resolve Profile and Thickness First

Profile geometry and slab thickness establish the structural depth available, the effective concrete area in compression, and the deck's constructibility under construction loads.

Design dependency chain Profile and thickness decisions must be finalized before reinforcement layouts can be detailed, before shear stud patterns can be specified, and before post-installed anchor embedment depths can be verified. Changing profile or thickness late in design triggers cascading revisions to reinforcement, connections, and fireproofing details.

The Capacity Principle

Profile geometry and total slab thickness are the foundation of composite deck capacity for high-load floors. Select 1.5″ Type B for lighter heavy-storage, 2″ Type B/W for mid-range 250–350 psf applications, and 3″ Type W for 400–500+ psf demands. Use normal-weight concrete at 4,000–5,000 psi, maintain minimum ¾″ cover per SDI and ACI 318-19, and coordinate fire ratings with manufacturer-tested assemblies. Resolve these decisions early—before reinforcement and connection details—because they set the structural depth, concrete area, and constructibility constraints for everything that follows.

Industrial Composite Floors

Reinforcement Detailing: Top Mats, Bottom Bars & Crack Control

Heavy-storage composite slabs experience greater negative moments, shrinkage restraint, and reflective cracking than conventional office floors. Reinforcement detailing must address structural strength, crack control, and long-term serviceability simultaneously.

Reinforcement
Strategy

Top Reinforcement Mats

Welded wire fabric alone is typically insufficient for heavy-storage applications. Deformed bar mats, commonly #4 @ 12" each way minimum, provide superior ductility and crack-width control. Additional #5 or #6 bars over beams and column lines resist negative moments and must extend beyond theoretical zero-moment locations per ACI 318 development-length requirements.

Crack Control Over Ribs

Reflective cracking along deck ribs is a common serviceability issue. Increasing shrinkage and temperature reinforcement to 0.0020bh, or installing dedicated #3 bars at 8" spacing transverse to the ribs, significantly improves long-term crack performance. Cross-sections should clearly show placement to avoid field interpretation errors.

Composite Deck • Support Connections • Heavy Storage Detailing

Connection Details at Supports: Beams, Girders, and Bearing Walls

The interface between the composite slab and its supporting structure is where load transfer is either achieved efficiently or where costly field problems originate. In heavy storage environments, connection detailing must account for elevated reaction forces, potential for uplift under eccentric rack loading, and the need for continuous load paths to the lateral system.

Critical Structural Interface

Support Details Complete
the Load Path

Heavy storage changes the demands placed on deck attachment, shear studs, wall bearing, and girder geometry. These interfaces should therefore be treated as engineered support conditions rather than repetitive standard details.

Deck-to-Beam

Shear Studs

Bearing Walls

Girder Flanges

Deck
Attachment

Deck-to-Beam Attachment

SDI specifies a minimum of one puddle weld or power-actuated fastener (PAF) per deck flute at supports, with a maximum fastener spacing of 12″. For heavy storage, this should be increased to every flute at end laps and at beams carrying concentrated rack loads, explicitly noted as "attach every flute — heavy storage" on the deck framing plan. Button punching in lieu of welds is acceptable at side laps per SDI D3.0, but field verification of completed connections is critical given the higher diaphragm demands in industrial buildings.

HEAVY
STORAGE

"attach every flute — heavy storage"

Make the increased attachment requirement visible directly on the deck framing plan rather than leaving the condition to interpretation in the field.

Connection Intent

Heavy Storage Requires Explicit Attachment

Concentrated Rack Demand

→

Increased Connection Demand

→

Explicit Deck Attachment

Composite Action

Shear Stud Placement Constraints

In 2″ and 3″ deck ribs, shear studs must be placed in the "strong position" (stud in the rib nearest mid-span of the beam) when ribs run perpendicular to the supporting beam. Pairing studs in wide ribs (≥6″ rib width) is permitted by AISC 360-22 Section I8.2c but triggers a stud strength reduction factor. For heavy composite beams, explicitly detail stud layout on the beam elevation — do not leave stud quantity and position solely to the fabricator's interpretation of a note.

Rib Orientation

Strong Position

When deck ribs run perpendicular to the supporting beam, stud position within the rib becomes an explicit composite-design consideration.

Wide Ribs

Paired Studs

Pairing studs in wide ribs requires the associated stud strength reduction to be incorporated rather than assuming the same capacity as an unrestricted stud layout.

Drawing Requirement

Show the Stud Layout

For heavy composite beams, explicitly detail stud layout on the beam elevation rather than leaving stud quantity and position solely to the fabricator's interpretation of a general note.

MASONRY &
CONCRETE

Bearing at Masonry and Concrete Walls

Where composite deck bears on concrete or masonry bearing walls, minimum bearing length per SDI is 1.5″, but heavy storage reaction forces frequently demand bearing pad design and verification of wall bearing capacity. Structural drawings should show the bearing detail in section, specifying bearing pad material (HDPE or elastomeric), thickness, and anchor requirements to prevent deck lift-off under dynamic loading. A grout bed or leveling angle may be required where wall top-of-wall tolerances exceed ±¼″.

Bearing Detail

What the Section Detail Must Resolve

Bearing

Minimum bearing length and available wall capacity

Pad

HDPE or elastomeric material and required thickness

Anchorage

Requirements to prevent deck lift-off under dynamic loading

Tolerance

Grout bed or leveling angle where top-of-wall variation exceeds ±¼″

Support Geometry

Girder Top Flange Width and Deck Continuity

At interior girders where deck spans in the same direction on both sides, the combined top flange must provide adequate bearing for both deck sheets plus room for shear stud placement. AISC recommends a minimum top flange width of 5¼″ for standard 2″ deck with paired studs. For heavily loaded girders with dense stud patterns, increase top flange width to 6″–7″ and note the minimum flange width on the framing plan — this is a coordination item with the steel fabricator that is frequently overlooked until erection.

Standard Reference

5¼″

Heavy Girder

6″–7″

One Flange Must Accommodate Three Functions

Deck Bearing
Side A

Shear Stud
Zone

Deck Bearing
Side B

Coordination Gate

Resolve Flange Width Before Erection

Girder top flange width is a coordination item with the steel fabricator. Deck bearing and dense stud layouts should be reviewed together before member geometry is finalized rather than discovering inadequate flange width after steel reaches the site.

Support Coordination

What Must Be Explicitly Detailed

Deck-to-beam attachment pattern

Heavy-storage end-lap attachment

Shear stud quantity and position

Bearing pad material and thickness

Wall anchorage requirements

Leveling / grout requirements

Girder top flange width

Deck continuity at interior supports

Critical Documentation Requirement

Do Not Hide Heavy Storage Connections in Standard Notes

All deck-to-support connection details should be called out explicitly on the structural plan — do not rely on "standard" footnotes for heavy storage applications.

Key Takeaway

Heavy Storage Support Connections Must Be Explicitly Engineered and Documented

Higher reactions, eccentric rack loading, dynamic effects, composite stud requirements, wall-bearing conditions, and dense girder attachment zones make support detailing a critical part of heavy-storage floor design. Deck attachment, stud placement, bearing pads, anchorage, leveling conditions, and girder flange width should all be coordinated directly on the structural drawings so the intended load path remains clear from engineering through fabrication, inspection, and field installation.

Quality Control

Key Takeaways and Detailing Checklist
for Heavy Storage Composite Floors

Composite deck detailing for heavy storage and industrial floors demands a systematic, detail-forward approach. Each consideration represents a documented source of field problems, RFIs, and structural deficiencies when left to assumption or standard practice alone.

SYSTEMATIC APPROACH

Five Critical Checks Before Issuing Any Composite Deck Package

QC checklist

01 / Loads Confirm design live load and classification early

02 / Profile Select deck profile based on span, load, and slab thickness

03 / Reinforcement Detail top reinforcement explicitly—do not default to WWF

04 / Fasteners Call out deck-to-support fastener pattern for heavy loading

05 / Anchors Coordinate post-installed anchor zones with composite design

CHECKLIST ITEM 01

Confirm Design Live Load and Load Classification Early

Document the governing live load (psf) and any concentrated or impact loads on the cover sheet and general notes. Verify that the geotechnical report, slab design, and deck/joist design are all using the same load basis.

Why this matters:

Misalignment on load basis is the most common root cause of redesign late in the project
Geotechnical report must support the assumed live load and concentrated loads
Slab design, deck selection, and joist design must all reference the same load values
Concentrated and impact loads must be explicitly documented, not assumed

Red flag: Different load values appearing in geotechnical, structural, and architectural documents without reconciliation.

CHECKLIST ITEM 02

Select Deck Profile Based on Span, Load, and Slab Thickness

Use 3″ deck for spans >10 ft under loads ≥350 psf. Verify that total slab thickness satisfies both structural demands (composite section capacity, punching shear, deflection) and fire-rating requirements using the deck manufacturer's tested assembly data.

Selection criteria:

3″ deck for spans greater than 10 ft under loads of 350 psf or higher
Total slab thickness must satisfy composite section capacity demands
Punching shear capacity must be verified for concentrated rack loads
Deflection criteria (typically L/360) must be met under full load
Fire-rating requirements must be satisfied using manufacturer's tested assembly data

CHECKLIST ITEM 03

Detail Top Reinforcement Explicitly — Do Not Default to WWF

Specify deformed bar mats over supports and in high-moment zones. Show bar size, spacing, cover, lap lengths, and chair heights on the reinforcing plan. Add transverse crack-control bars perpendicular to the deck ribs and show them in section.

Reinforcement requirements:

Deformed bar mats over supports and in high-moment zones (not welded wire fabric alone)
Show bar size, spacing, concrete cover, lap lengths, and chair heights on reinforcing plan
Add transverse crack-control bars perpendicular to deck ribs
Show crack-control reinforcement in section details
Heavy storage floors require explicit reinforcement—do not rely on standard WWF details

CHECKLIST ITEM 04

Call Out Deck-to-Support Fastener Pattern for Heavy Loading

Override the standard "12″ max" note where concentrated loads or diaphragm demands require every-flute attachment. Detail shear stud layout on beam elevations, not just a count in the schedule. Coordinate top flange widths with the steel fabricator before final shop drawing approval.

Fastener and shear stud requirements:

Override standard "12″ max" fastener spacing where concentrated loads or diaphragm demands require every-flute attachment
Detail shear stud layout on beam elevations—do not rely only on a count in the schedule
Coordinate top flange widths with the steel fabricator before final shop drawing approval
Heavy loading often requires closer fastener spacing than standard practice

CHECKLIST ITEM 05

Coordinate Post-Installed Anchor Zones with Composite Design

Flag all rack upright base plate locations and confirm that the composite slab has adequate thickness, reinforcement, and concrete strength (f'c ≥ 4,000 psi) to satisfy ACI 318-19 Chapter 17 anchor design requirements. Document these zones on the structural floor plan to guide inspection and special inspection requirements.

Anchor coordination requirements:

Flag all rack upright base plate locations on the structural floor plan
Confirm composite slab has adequate thickness for anchor embedment
Verify reinforcement layout does not conflict with anchor locations
Confirm concrete strength f'c ≥ 4,000 psi for post-installed anchors per ACI 318-19 Chapter 17
Document anchor zones to guide inspection and special inspection requirements

Heavy Storage Composite Floor Checklist Summary

✓ Load Basis Alignment Governing live load, concentrated loads, and impact loads documented and consistent across geotechnical, slab, deck, and joist design documents.

✓ Profile Selection 3″ deck for spans >10 ft at ≥350 psf. Slab thickness satisfies structural and fire-rating requirements per manufacturer's tested assemblies.

✓ Explicit Reinforcement Deformed bar mats detailed with bar size, spacing, cover, lap lengths, and chair heights. Transverse crack-control bars shown in plan and section.

✓ Fastener Patterns Every-flute attachment detailed where required. Shear stud layout shown on beam elevations. Top flange widths coordinated with fabricator.

✓ Anchor Zones Rack base plates flagged, slab thickness verified, reinforcement coordinated, f'c ≥ 4,000 psi confirmed, anchor zones documented for inspection.

✓ Documentation All requirements shown on cover sheet, general notes, reinforcing plan, beam elevations, and structural floor plan for clear communication to all parties.

TECHNICAL RESOURCES

Project-Specific Support

For project-specific composite deck detailing support or to discuss how these principles apply to your next heavy storage facility, visit consac.com/blogs for additional technical resources on deck and joist detailing.

Why use the checklist Each of the five checklist items represents a documented source of field problems, RFIs, and structural deficiencies when left to assumption or standard practice alone. Using this checklist as a starting point for quality control review helps catch misalignments early—before they become costly field corrections or structural deficiencies in heavy storage environments.

✓

The Quality Control Principle

Composite deck detailing for heavy storage demands a systematic, detail-forward approach. Confirm load basis early, select the right deck profile for span and load, detail reinforcement explicitly, call out fastener patterns for heavy loading, and coordinate anchor zones with composite design. Use the five-item checklist as a quality control review for any composite deck package destined for a high-load storage environment. Each item prevents documented field problems, RFIs, and structural deficiencies that arise when these decisions are left to assumption or standard practice alone.
