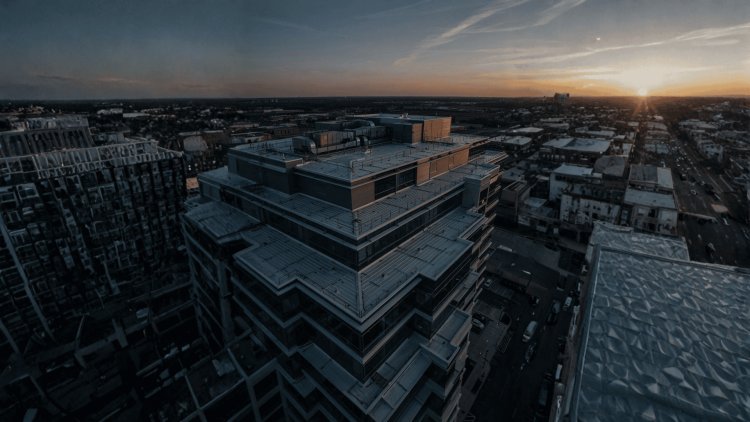

Roof Deck Layouts for Multi-Level Roof Conditions
Multi-level roof conditions are among the most demanding detailing challenges in structural steel design. When a building steps up or steps down — whether due to programmatic requirements, mechanical clearances, or architectural massing — the roof deck must transition cleanly across elevation changes while maintaining structural continuity, drainage integrity, and code compliance. This presentation breaks down the key layout principles, connection strategies, and coordination requirements that engineers, detailers, and design-build contractors must understand to detail multi-level steel roof deck systems correctly and efficiently.
What Makes Multi-Level Roofs Different
A single-level roof deck is a relatively controlled environment where span directions are predictable, load paths remain straightforward, and edge conditions repeat consistently throughout the structure. Multi-level roof systems introduce elevation transitions that disrupt those assumptions, forcing engineers and detailers to resolve structural, drainage, thermal, and constructability challenges at every roof step.
Every Roof Step Creates Multiple Engineering Problems
A roof elevation change affects structure, diaphragm behavior, drainage, fire protection, air barriers, detailing, fabrication, and erection simultaneously. Multi-level roofs are coordination-intensive systems rather than simple deck layouts.
Controlled Conditions
• Predictable span directions
• Repetitive edge details
• Simple drainage paths
• Straightforward load transfer
Transition Conditions
• Step beams and collectors
• Complex closure details
• Concentrated drainage zones
• Multi-directional load transfer
One Roof Step Affects Multiple Disciplines
The Most Important Early Decisions
Multi-Level Roofs Are Defined By Their Transitions
Most areas of a roof deck are repetitive and straightforward. The roof step itself is where structural capacity, diaphragm continuity, drainage performance, enclosure requirements, and construction coordination converge. That transition deserves the highest level of design attention.
Good Multi-Level Roof Design Prevents Problems Before Construction
Understanding elevation discontinuities, tributary load transfer, drainage behavior, fire and air barrier continuity, and deck attachment requirements allows engineers and detailers to resolve transition conditions before fabrication begins. The result is fewer RFIs, more accurate bids, faster steel erection, improved roofing coordination, and superior long-term roof performance.
At a multi-level roof step, flute direction controls where the deck bears, how the edge is restrained, how the step beam is loaded, and whether a supplemental support is required.
Flutes parallel to the step beam
Each panel terminates at the step beam and spans toward the next interior support. The step beam becomes a natural deck bearing line and usually provides a straightforward attachment condition.
Flutes perpendicular to the step beam
The deck runs along the step face and must terminate against framing that is perpendicular to the step. Without added support, the panel end can become a free edge, partial cantilever, or poorly restrained termination.
Subtract connection plates, bolts, braces, welds, stiffeners, and obstructions from the available bearing width.
Check upper and lower roof deck ends together, including tolerances and edge fastener access.
Review local flange bending, web effects, deck reactions, closure attachments, and concentrated loads.
Confirm that crews can place, align, fasten, inspect, and waterproof both roof levels.
When panels run parallel to the step, the step face does not automatically support their ends.
Step conditions combine framing, deck, roofing, parapet, drainage, and diaphragm interfaces in one narrow zone.
Prefer a deck direction that creates a genuine bearing line at the step beam, but verify that the support can receive both roof planes and carry the associated connections. When panels must run parallel to the step, design the edge support explicitly—because a free edge is a detail, not a solution.
Deck Span Direction at Step Conditions
Deck Spanning Perpendicular to the Step
Why it is often preferred
Deck Spanning Parallel to the Step
Why it is more demanding
Orientation Comparison
Criterion
Perpendicular to step
Parallel to step
Flute direction
Parallel to step beam
Perpendicular to step beam
Deck end
Terminates at step beam
Terminates at perpendicular framing
Typical edge support
Step beam often provides it directly
Edge angle or closure channel often needed
Primary risk
Insufficient flange width for both roof planes
Unsupported edge and reduced restraint
Detail complexity
Usually lower
Usually higher
Use case
Natural step bearing and conventional panel termination
Grid or architectural constraints requiring supplemental edge design
The Step Beam Capacity Check
A Free Edge Is Not a Bearing Line
Pre-Design Decision Checklist
Recommended Coordination Sequence
Do Not Let the Step Beam Become a Hidden Conflict
The Step-Condition Principle
The step beam is the structural linchpin at elevation transitions in multi-level roofs. It must support dual deck bearings, anchor vertical closure assemblies, and transfer diaphragm forces across the step. Proper detailing ensures both structural integrity and weatherproofing performance.
Upper-level deck bears on one flange, lower-level deck on the opposite. Misaligned elevations require haunch plates, bent plates, or secondary angles. Minimum end bearing width of 1½ inches must be confirmed per manufacturer tables. Wide-flange beams often suffice; HSS/tube sections typically need supplemental plates.
The step’s vertical face must be structurally and thermally closed. A welded or bolted steel closure plate provides substrate for roofing membrane termination, air barrier transition, and insulation wrap. Engineers must specify plate thickness, weld size, and attachment frequency to avoid field disputes.
Stepped roofs interrupt diaphragm planes. Lateral forces must transfer through the step beam acting as collector/drag strut. Deck-to-beam connections for gravity and shear must be explicitly detailed. Fastener schedules at the step beam should be distinct from field patterns to ensure code compliance.
Engineers must account for combined loads from both roof levels, plus closure framing, parapets, and equipment. Drift snow accumulation adjacent to the step wall adds significant load. A complete load takedown is essential before finalizing beam selection to prevent undersizing errors.
Step beams are more than elevation transitions — they are structural collectors, closure anchors, and diaphragm connectors. Proper detailing of bearing, closure, continuity, and sizing ensures safety, durability, and compliance in multi-level roof systems.
Connection Requirements for Multi-Level Roof Systems
Dual Bearing Condition
Vertical Closure and Step Wall Assembly
Diaphragm Continuity Across the Step
Step Beam Sizing Considerations
Key Insight
Multi-level roof systems introduce challenges that extend well beyond framing and deck layout. Every roof step becomes both a drainage concentration point and a potential snow accumulation zone. Upper roof runoff, ponding risks, overflow requirements, and ASCE 7 snow drift loads must all be evaluated together because these conditions frequently govern structural design on the lower roof level.
The same elevation change that creates a structural transition usually creates a drainage concentration zone and a snow drift accumulation zone. These effects often govern lower roof framing design.
When an upper roof discharges onto a lower roof, the lower roof must accommodate runoff from both contributing roof areas. Designing only for the lower roof area can result in undersized drainage systems and excessive ponding loads.
If primary roof drains become blocked, the lower roof structure must support accumulated water until overflow systems engage. This often requires roof joists, beams, and deck systems to resist substantial additional loading that was not anticipated during early planning.
Roof steps create abrupt wind flow changes that promote snow accumulation. Drift loads must be evaluated separately from balanced snow loads and frequently become the controlling design condition for lower roof framing.
Uniform design snow load across the roof area.
Frequently exceeds balanced roof snow loads and governs member sizing.
Drainage Design and Snow Drift at Elevation Steps
Roof Steps Collect Water and Snow
The Drainage Challenge
Ponded Water Can Govern Structural Design
Snow Drift Accumulation at Roof Steps
Balanced Snow Load
Drift Surcharge
Step conditions must be resolved jointly by the EOR, steel detailer, deck manufacturer, roofing designer, and MEP teams before permit or bid documents are issued.
Specify plate thickness, height, welds, fasteners, and continuity at the step face.
Provide a continuous edge angle, channel, shelf, or designed support where the deck does not bear directly.
Verify the actual end-bearing dimension after cuts, tolerances, obstructions, and closure geometry.
Show end-zone, perimeter, sidelap, and step-specific fastening requirements.
Calculate applicable step drifts for windward and leeward configurations and apply the governing case.
Size lower roof joists and beams for the drift-controlled load combination.
Check lower roof rainwater and ponding under the adopted IBC and ASCE 7 provisions.
Size primary and overflow drainage for the actual contributing area and step geometry.
Review elevations, reactions, flange width, edge members, collector forces, and connection access.
Review profile, bearing, edge conditions, fastening, closures, cuts, and fabrication limits.
Review substrate, insulation, membrane terminations, flashing, drainage, and installation sequence.
The field is the most expensive place to discover a missing support or incompatible elevation.
Confirm the direction, prove the bearing, design the edge, calculate the drift and rain loads, coordinate the roof and MEP interfaces, and document the complete condition before permit, bid, or fabrication release. A multi-level roof step performs as intended only when every trade shares the same geometry and load path.
Detailing Checklist and Coordination Summary
Make the Load Path Explicit
Detail the Physical Interface
Release One Coordinated Condition
Structural Layout Checklist
Deck Edge and Closure Checklist
Loads and Code Compliance
Coordination and Documentation Checklist
Three-Party Review Package
Joist and Steel Detailer
Deck Manufacturer
Roofing System Designer
Do Not Defer Step Conditions to the Field
The Coordination Principle
