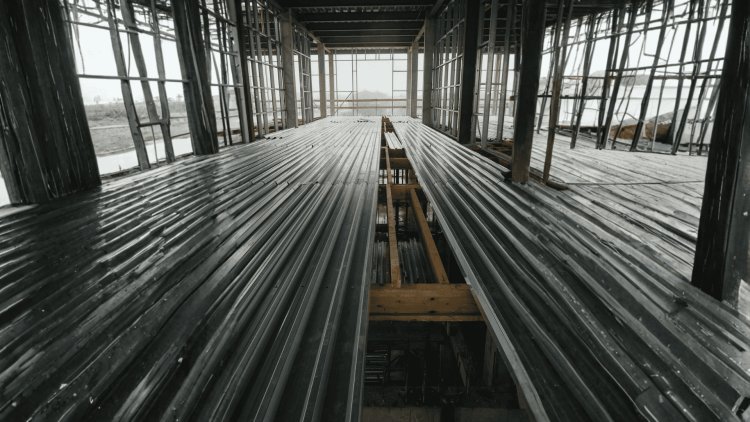

Steel Deck Serviceability Checks for Better Performance
Structural engineers and detailers know that strength design is only half the battle. A steel deck assembly that passes all ultimate limit state checks can still underperform in service — vibrating underfoot, deflecting excessively under live load, or ponding water on a flat roof. This presentation walks through the critical serviceability checks that separate a code-compliant deck from a truly high-performing one: live-load deflection limits, total and long-term deflection under combined loads, constructionstage ponding stability, floor vibration acceptance criteria, and the practical detailing decisions that tie them all together. Whether you are checking a composite floor deck during schematic design or finalizing sidelap fastener schedules for a low-slope roof, these checks belong on every project checklist — not as afterthoughts, but as primary performance gates.
Why Serviceability Controls Steel Deck Design More Than You Think
Most deck systems satisfy strength requirements long before they satisfy occupant comfort, vibration, deflection, and long-term performance expectations.
The Serviceability Risk Ladder
Common Serviceability Failures
Why Problems Develop
Serviceability Design Gates
Strength Checks Are Not Enough
A deck can fully satisfy code-required strength criteria and still fail in service due to excessive vibration, deflection, ponding, or finish damage. Serviceability must be evaluated as an independent design requirement.
Occupants Experience Serviceability, Not Strength
The most successful steel deck designs are not merely safe. They are quiet, stable, comfortable, and durable. Experienced designers treat serviceability checks as primary decision gates because that is ultimately what building occupants notice every day.
The correct limit depends on the load case, construction stage, supported finishes, and project criteria. Always confirm the governing requirement with the structural engineer of record.
Common for floor decks in offices, healthcare, and retail. It is applied to unfactored live load acting on the composite section. Exceeding L/360 can damage brittle finishes such as ceramic tile or gypsum-board ceilings. [web:374][web:375]
This check considers the full service load, including sustained superimposed dead load and long-term concrete effects. Roof systems commonly use L/240 for total load, while sensitive floor partitions may require a tighter project-specific limit such as L/480. [web:371][web:374][web:375]
Before composite action develops, the steel deck alone carries its own weight, wet concrete, construction live load, and any additional ponding effects. The applicable limit is the lesser of L/180 or 3/4 inch. [web:372][web:377]
Adjacent deck sheets at end laps can deflect differently when they carry unequal tributary loads. Review the support and connection condition when relative movement approaches 1/8 inch, particularly where thin-set finishes or sensitive partitions are present.
Do not place a single deflection ratio on the drawings without identifying the corresponding load case. Label live-load, total-load, construction-stage, and differential-deflection checks separately so the deck selection and detailing remain traceable.
Live-Load and Total Deflection Limits
Live Load Only
L/360Total Load Including Long-Term Effects
L/240Construction Stage — Unshored
L/180 or 3/4"Differential Deflection at End Laps
1/8"Detailing Rule
Ponding is the progressive accumulation of water on flat or low-slope roofs. Initial deflection creates a dish that collects water, causing further deflection and more water — a feedback loop that can lead to collapse. Numerous failures in the U.S. have been traced to ponding after heavy rain or blocked drains.
ASCE 7 §8 and AISC 360 Appendix 2 require ponding checks when slope is less than 1/4" per foot after deflection under dead load plus 5" water.
Stability criterion uses Cp (primary framing) and Cs (deck):
Where Cp = 32SLp⁴ / (10⁷Ip) and Cs = 32SLs⁴ / (10⁷Is). If not satisfied, increase depth, confirm slope adequacy, or perform rigorous numerical analysis.
Never assume tapered insulation substitutes for structural slope. AISC requires the framing itself to provide stable geometry or ponding stability must be explicitly verified. Detailers should flag any roof deck layout relying solely on insulation for slope.
Ponding Stability on Roof Decks: A Critical Check
When Ponding Governs
AISC Simplified Ponding Check
Critical Warning
A floor may satisfy every strength and deflection requirement yet still feel uncomfortable to occupants. Vibration performance is ultimately a human-comfort design problem.
Low-frequency floor systems can align with walking-induced excitation frequencies and harmonics, creating perceptible vibration even when strength and static deflection checks pass.
Floor Vibration: Human Comfort on Composite Deck Systems
The Vibration Control Panel
fn < 4 Hz = Resonance Risk Zone
What Increases Floor Stiffness?
Deflection, vibration, ponding, and finish performance are influenced by shop-drawing and field-installation decisions—not only by calculations.
Continuous spans can deflect substantially less than equivalent simple spans, but that assumption is valid only when end laps are correctly located over supports and minimum bearing is achieved. Confirm the actual support condition before using continuous-span tables. [web:283]
Rib direction affects composite stiffness, effective concrete area, drainage, and load distribution. If ribs run parallel to the primary framing span, use the reduced effective slab stiffness required by the applicable calculation method.
For roof deck, coordinate rib direction with drains and gutters to avoid trapped water.
Joist camber can offset dead-load deflection, but excessive camber may force the deck into reverse bending during the pour. Confirm that the deck can conform without buckling, separating from the chord, or creating unintended support conditions.
Pre-cambering is normally achieved through the supporting structure, not by mill-cambering deck sheets.
Run serviceability checks early and in sequence: deflection, ponding, vibration, and finish sensitivity. Resolve conflicts before shop drawings begin rather than redesigning after structural documents are issued.
Coordinate these findings among the structural engineer of record, deck supplier, and detailer. Serviceability should govern deck selection proactively—not appear as a costly correction after the drawings are complete.
Detailing Decisions That Impact Serviceability
End Bearing & Support
Deck Orientation
Camber & Sequence
Deflection, Ponding & Vibration
