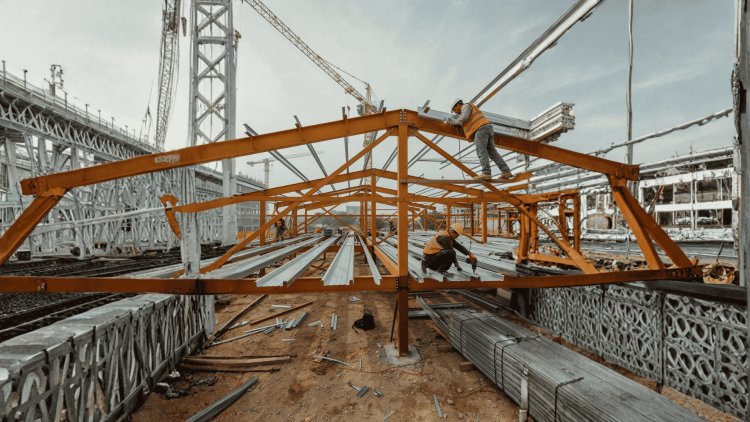

How Deck Camber and Framing Deflection Should Be Coordinated
A practical guide for structural engineers, detailers, and BIM coordinators navigating one of the most consequential — and frequently mishandled — coordination challenges in steel framing: aligning beam camber values with real-world deck behavior and composite system deflection.
Why Camber and Deflection Coordination Matters
Camber is not merely a fabrication detail. It is a coordinated structural strategy intended to control final floor elevations after deck installation, concrete placement, and composite action develop. When assumptions break down between disciplines, the result is often a floor system that performs differently than the design intended.
Camber Exists to Balance Future Deflection
Under-Cambered Beam
• Roof drainage ponding risk
• Excess slab thickness at mid-span
• Additional dead load accumulation
• Serviceability concerns
Over-Cambered Beam
• Floor ride-quality issues
• Partition cracking
• Door and window misalignment
• Architectural tolerance conflicts
The Responsibility Chain
No single trade controls the finished elevation outcome. Success depends on alignment of assumptions, sequencing, and load-stage expectations across the entire project team.
Composite Action Changes Everything
Camber is a calculated response to a defined load condition—not a guarantee of a perfectly level deck. Design assumptions, shop tolerances, erection loads, and construction sequence all affect the final profile.
Shop fabrication does not produce an exact theoretical value. For beams up to 50 ft, the supplied guidance identifies a typical ±⅛-in. camber tolerance; longer members may have proportionally larger tolerances.
Erection point loads from workers, equipment, bundled deck, or concrete buggies can partially reduce camber before placement begins.
A deliberate upward geometry intended to offset a defined portion of expected dead-load deflection.
A promise that the erected framing will remain at the theoretical camber through handling, deck loading, and concrete placement.
Design camber against a clearly stated load condition, communicate realistic fabrication tolerances, and protect the intended geometry through erection sequencing. Camber is a coordinated construction parameter—not merely a number on a beam schedule.
Understanding Camber: Design Principles & Fabrication Realities
Fabrication Tolerances Matter
Camber Can Change on Site
What the Camber Number Does—and Does Not—Mean
Camber Coordination Workflow
The Practical Principle
Steel deck behavior must be modeled across multiple stages: pre-composite deflection during the wet concrete pour, post-composite stiffness after curing, long-term creep effects, and differential settlement at supports. Each stage governs different checks and camber derivations.
Pre-Composite: Deck acts as a form, carrying steel self-weight, deck weight, and wet concrete. Camber offsets ~75–80% of this deflection. Non-composite inertia governs calculations.
Post-Composite: Once concrete cures and studs engage, transformed section inertia is 2–3× higher. Live load deflections occur against this stiffer section.
Metal deck is continuous over supports. Cambered beams alter span geometry dynamically. Differential camber between adjacent beams can cause localized bearing issues or gaps. Detailers must verify tolerances against manufacturer limits.
Governed by steel + deck + wet concrete load. Camber sized to offset ~75–80% of deflection. Non-composite inertia applies.
Governed by live and superimposed dead loads on cured composite section. Transformed inertia typically 2–3× non-composite stiffness.
Sustained loads (partitions, MEP, finishes) produce creep deflection. ACI 318 recommends multiplier of 2.0 on sustained live load component.
Column shortening in high-rise and foundation settlement in low-rise structures introduce secondary deflections. Must be modeled explicitly, especially at transfer beams and long spans.
Accurate deck modeling requires capturing pre-composite, post-composite, creep, and settlement effects. Each stage governs different checks, ensuring camber calibration and serviceability compliance across the structure’s lifecycle.
Deck Behavior Under Load: What the Model Must Capture
Pre-Composite vs. Post-Composite Deflection
Deck Span Direction & Camber Interaction
Pre-Composite Deflection
Post-Composite Deflection
Long-Term Creep Effects
Differential Settlement at Supports
Key Insight
A coordinated camber workflow connects engineering calculations, structural modeling, fabrication, and field verification so that theoretical elevations and real-world conditions remain aligned throughout construction.
Each handoff should be explicitly documented in the BIM model and contract package. This creates a traceable chain from engineering assumptions to fabrication and field verification.
BIM models operate in theoretical space, while field conditions introduce real-world variation. The coordination protocol should define how surveyed top-of-steel elevations are compared with predicted model elevations at each construction stage.
If surveyed elevations exceed the applicable project tolerance, document the deviation and obtain engineering review before concrete placement proceeds. Particular attention is required at re-entrant corners, transfer beams, and heavy equipment pad locations where deflection profiles can become more complex.
Treat camber as structured engineering data throughout the BIM lifecycle — not as a note added at the end. When model parameters, fabrication details, surveys, and field reports remain connected, the project team can identify deviations early and maintain reliable elevation control through concrete placement.
BIM Coordination Workflow: Linking Camber to the Structural Model
Elevation Control & Survey Integration
The Coordination Principle
Successful camber coordination does not depend on a single calculation. It depends on consistent assumptions, disciplined documentation, accurate model data, and field verification throughout construction. The most successful projects treat camber as a shared project responsibility rather than an isolated engineering task.
Clearly identify which load combinations, construction stages, and section properties govern each camber value. Distinguish between non-composite and composite behavior so fabricators and detailers are not forced to assume design intent.
Adjacent beams framing into shared supports should be reviewed for excessive mid-span camber differences. Variations greater than ⅜ inch typically require an engineered leveling or reconciliation strategy.
Store camber values, section properties, and composite assumptions as embedded model attributes rather than notes or text callouts. Structured data reduces fabrication errors and improves automation opportunities.
Require documented field verification before critical milestones. Deviations exceeding ±¼ inch should trigger review and resolution before concrete placement proceeds.
These three practices eliminate a large percentage of slab-elevation errors, deck-plane conflicts, fabrication misinterpretations, and post-placement corrective work.
Camber coordination succeeds when engineering assumptions remain visible throughout detailing, fabrication, installation, and verification. Projects that document load stages, manage adjacent beam geometry, maintain structured BIM data, and enforce field survey checkpoints consistently achieve better floor tolerances and reduce costly rework.
Camber and deflection coordination is most successful when every project participant shares the same assumptions, the same model data, and the same verification process. Clear documentation and disciplined execution transform camber from a potential source of conflict into a powerful tool for achieving accurate finished elevations.
Key Coordination Checklist & Takeaways
The Camber Coordination Framework
Document Load Stages
Check Differential Camber
Use Native BIM Parameters
Establish Survey Hold Points
Field Verification Timeline
Why Model-Based Coordination Matters
The Three Biggest Coordination Wins
Bottom Line
Coordinate Early. Verify Often. Pour Once.
