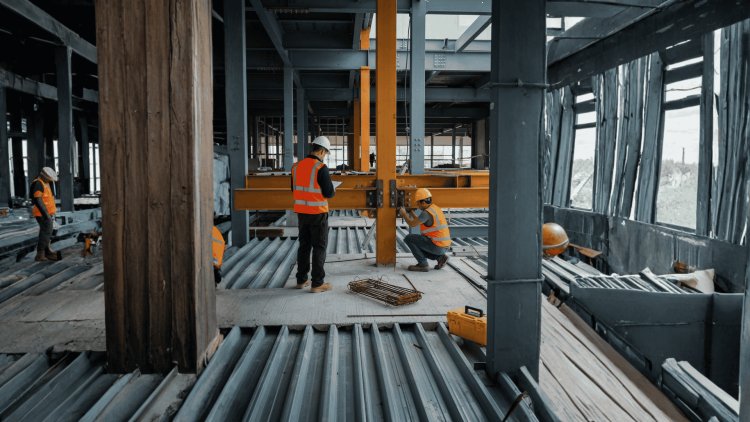

How Building Occupancy Influences Steel Deck Design Choices

Occupancy type is one of the most consequential — and often underappreciated — variables in steel deck specification. Long before a structural engineer selects a deck profile, gauge, or span, the intended use of a building imposes a layered set of performance demands: live load magnitude, vibration sensitivity, diaphragm stiffness, construction sequencing constraints, and code-driven fire resistance requirements. A hospital floor system serves a fundamentally different master than a warehouse slab or a hotel corridor, even when the structural bays look identical on paper. This presentation examines how occupancy-driven loading and performance criteria should drive every major steel deck design decision — from profile depth and flute geometry to attachment patterns and composite vs. non-composite detailing — giving structural engineers and design professionals a practical, decision-ready framework grounded in real-world trade-offs.

How Building Occupancy Influences Steel Deck Design Choices
Occupancy-Driven Deck Design

Occupancy Categories and Their Structural DNA

Before selecting deck profiles, gauges, spans, composite designs, or fire assemblies, engineers must first understand the occupancy. Every building type carries a unique structural fingerprint that drives specification decisions.

The Structural DNA Sequence

Live Load
+
Vibration Response
+
Composite Action
+
Fire Resistance
=
Occupancy DNA

Office

Live Load: 50 psf
Vibration: High
Composite Priority: Moderate–High
Fire Rating: 2-Hour

Healthcare

Live Load: 60–80 psf
Vibration: Very High
Composite Priority: High
Fire Rating: 2–3 Hour

Retail / Assembly

Live Load: 75–100 psf
Vibration: Moderate
Composite Priority: Moderate
Fire Rating: 1–2 Hour

Industrial / Warehouse

Live Load: 125–250+ psf
Vibration: Low
Composite Priority: Low–Moderate
Fire Rating: 1-Hour

Parking Structure

Live Load: 40–50 psf (vehicles)
Vibration: Low
Composite Priority: Low
Fire Rating: 1–2 Hour

Residential / Hotel

Live Load: 40 psf
Vibration:

Profile Selection

Matching Deck Geometry to Occupancy Demands

Profile depth, rib width, pitch, gauge, and concrete depth must be evaluated together with occupancy loading, span, composite behavior, and construction-stage demands.

1.5
WR

1.5″ Wide-Rib

A common choice for office, residential, and light-commercial floors. The wide top opening accommodates headed shear studs efficiently for economical composite design.

Typical fit: approximately 50–75 psf live load, 3.5–5.5 in. concrete above flute, and roughly 10–11 ft unshored spans depending on the selected product and loading.
2.0
IR

2″ Intermediate / Narrow Rib

Bridges light-commercial and moderate-industrial requirements, offering greater unshored span capability and diaphragm stiffness than lighter WR profiles.

Typical fit: retail or similar occupancies around 75–100 psf live load where a WR deck would require shoring or a heavier gauge.
3.0
DD

3″ Deep Deck

Suited to industrial, warehouse, and heavy-assembly occupancies. The deeper rib supports greater concrete volume and can reduce joist count over longer bays.

Typical fit: approximately 125 psf and above, with unshored spans that may reach 14–16 ft depending on gauge, profile, and design assumptions.

Gauge Is the Second Decision

Once the profile is selected, gauge must be checked for both the wet-concrete construction stage and the final in-service condition. The governing case changes with occupancy, span, slab weight, and shoring constraints.

Construction:
deck + wet concrete + construction load
Service:
occupancy live load + superimposed loads

Construction Loading Can Govern

Unshored span tables commonly account for wet concrete plus a construction load, often 20 psf or a specified concentrated load. The concrete placement plan and equipment loads must remain within those assumptions; otherwise, the deck needs reanalysis or shoring. [web:405][web:406][web:409]

Do not select a deck only from the final occupancy load. Check the pour stage first.

Selection Principle

The right profile is the lightest, most economical section that satisfies construction-stage strength and deflection, final serviceability, composite requirements, diaphragm demands, and the actual occupancy loading. Confirm every span and capacity against the governing SDI or manufacturer table for the selected product.

Design Decisions

Composite vs. Non-Composite Design by Occupancy

When Composite Design Pays Off

Composite deck-and-slab systems, where shear studs connect beams to slabs, reduce steel beam weight by 20–40%. They are favored when:

  • Live loads exceed 50 psf and spans ≥ 25 ft
  • Deflection and vibration criteria are stringent (offices, healthcare)
  • Camber control is critical for finishes/equipment
  • Future live load intensification is anticipated

Office towers, hospitals, and science buildings consistently benefit. Even partial composite ratios (25–50%) capture most stiffness benefits with fewer studs.

When Non-Composite Design Is the Right Call

Non-composite detailing is correct in several contexts:

  • Parking structures: chloride exposure degrades composite interfaces
  • Short-span industrial bays: spans <20 ft make studs uneconomical
  • Cantilevers/transfer structures: tension in bottom flange negates composite benefit
  • Low-rise retail with slab-on-deck over grade: no framing benefit

Engineers must weigh material savings against stud installation labor, inspection costs, and long-term serviceability.

Key Insight

Composite design delivers efficiency in high-load, long-span, vibration-sensitive occupancies. Non-composite design ensures durability and economy in short-span, exposed, or structurally unique contexts. The right choice depends on occupancy-driven performance and lifecycle economics.

Floor Vibration Design

Vibration, Serviceability & Occupancy Sensitivity

Strength checks determine whether a structure is safe. Vibration checks determine whether occupants perceive the structure as comfortable. Different occupancies demand dramatically different vibration performance targets.

Occupancy Vibration Sensitivity Spectrum


Industrial

Retail

Office

Residential

Healthcare
Low Sensitivity Extreme Sensitivity
Highest Sensitivity

Healthcare

  • Operating rooms
  • MRI & CT suites
  • ap/g ≤ 0.5% or lower
  • Maximum composite stiffness
  • Equipment vibration evaluation
High Sensitivity

Office

  • Open-plan layouts
  • Long-span floor systems
  • DG11 target ≤ 0.5% g
  • Walking-induced vibration
  • Beam & girder stiffness critical
Comfort Sensitive

Residential

  • Unit-to-unit isolation
  • Hotel guest room comfort
  • Low-frequency control
  • Isolation mats common
  • Mass improves performance

Diaphragm Detailing

Diaphragm Action, Attachment Patterns & Occupancy

Deck attachment is a diaphragm design decision. Occupancy, building geometry, lateral-system demands, openings, and edge conditions must all inform the fastening pattern.

01

High-Rise & Mixed-Use

Cores, shear walls, transfer levels, and irregular load paths can create high local diaphragm demands. Intensified fastening may be necessary near these zones; never extend a default floor-wide pattern without checking the demand diagram.

Coordinate the attachment schedule with the governing diaphragm design standard and project-specific calculations.
02

Industrial & Warehouse

Large flexible roof plates may have modest diaphragm demand per unit area but significant total force because of their plan dimensions.

Use zoned attachment schedules where appropriate instead of applying one intensive pattern across the entire roof.
03

Retail & Assembly

Large open areas and reentrant corners can concentrate diaphragm stresses and require localized attachment intensification.

Mark these zones on structural drawings; do not leave the location or extent to field interpretation.

Three Detailing Checkpoints

01 · Deck Orientation

Rib direction changes diaphragm efficiency, load paths, and composite stud placement options. Coordinate orientation with the lateral system before detailing.

02 · Edge Conditions

Perimeter angles, closure plates, and pour stops must transfer diaphragm chord forces into perimeter framing, especially at complex floor-plate boundaries.

03 · Openings

MEP penetrations reduce effective diaphragm area. Identify service-specific openings early and provide local reinforcement where continuity is interrupted.

Identify Demands

Translate occupancy, geometry, and lateral-system conditions into diaphragm forces.

Detail Diaphragm

Specify profile, gauge, attachment patterns, edge transfers, and serviceability limits.

Select Strategy

Iterate the composite, vibration, diaphragm, and occupancy decisions as one system.

The Occupancy-First Principle

Do not optimize profile, gauge, composite ratio, vibration performance, or fastening in isolation. Anchor every decision to the actual performance demands of the occupancy to produce a system that is efficient, defensible, and reliable in service.
