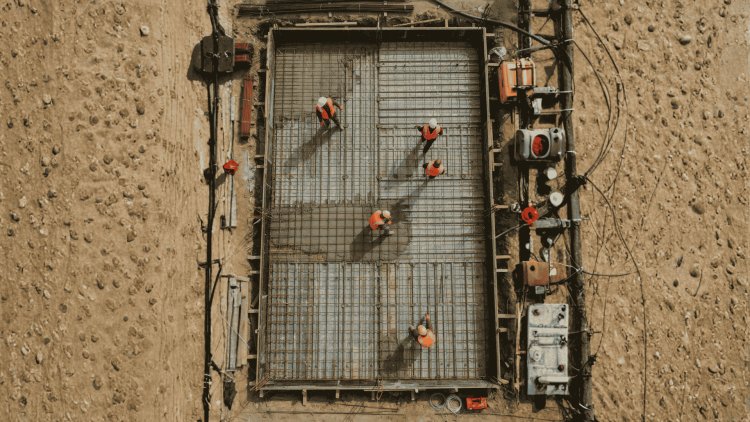

Form Deck Detailing for Concrete Slab Support
A precision guide for structural engineers and detailers working with form deck systems in composite and non-composite concrete slab-on-deck construction — covering geometry, fastening, edge conditions, reinforcement interface, and field-ready coordination practices.
What Is Form Deck — and How Does It Differ from Composite Deck?
Concrete
Live Loads
Soffit Substrate
Form Deck ≠ Composite Deck
Decisions
Understanding this distinction is critical at the detailing stage. Form deck selections directly govern: slab thickness above the top flute, shoring requirements for longer spans, edge condition treatment, and the reinforcement mat placement relative to the deck surface. Misidentifying form deck as composite deck in a model or shop drawing leads to incorrect diaphragm assumptions, erroneous load path documentation, and potential RFI cascades during erection.
One Wrong Deck Classification Can Cascade
Form deck carries wet concrete as temporary formwork only. It contributes zero composite action unless specifically engineered and detailed as such — always verify with the EOR's composite designation on the structural drawings.
Key Form Deck Designations
Narrow Rib vs. Wide Rib
Uncoated vs. Galvanized
Identify the Deck. Verify the EOR Designation. Detail the System Correctly.
Correct form deck detailing requires precise coordination across four interconnected technical areas. Each parameter below carries direct implications for structural adequacy, code compliance, and constructability on site. Slab thickness must be dimensioned from the top of the steel deck rib to the top of concrete; deck must be fastened to every support framing member per SDI DDMO3; end laps must occur over supports with minimum 2" bearing; and pour stops at slab perimeters must be selected by height to match total slab thickness and fastened at max 12" o.c.
Standard pour stops may not have sufficient stiffness for cantilever conditions. The pour stop must be designed to resist wet concrete hydrostatic pressure without deflecting—requiring heavier gauge or additional stiffening.
Correct form deck detailing requires precise coordination across four interconnected technical areas. Each parameter carries direct implications for structural adequacy, code compliance, and constructability on site: (1) Slab Thickness & Rib Fill Geometry—total slab thickness must be dimensioned from the top of the steel deck rib to the top of concrete, not from the deck soffit; minimum concrete cover above the top flute is typically 3.5" for structural slabs per ACI 318-19 Table 26.4.1 (interior exposure) and should be verified against fire-rating assembly requirements; detailers must clearly annotate both the total slab thickness and the concrete fill thickness above flute on all slab plans and sections to eliminate field ambiguity. (2) Deck Fastening Patterns to Supporting Members—form deck must be fastened to every support framing member (steel joists, beams, or bearing walls); standard practice per SDI DDMO3 requires fasteners at maximum 12" on-center along supports in interior zones and tighter spacing (6" o.c.) at end laps and diaphragm chord regions; power-actuated fasteners (PAFs), puddle welds, or screws are all acceptable—selection depends on substrate type (open-web joist top chord vs. wide-flange beam), deck gauge, and required uplift resistance; specify fastener type, diameter, and penetration depth explicitly on details. (3) End Laps, Side Laps & Sheet Orientation—form deck panels should be oriented perpendicular to the primary supporting members (joists or beams) to maximize spanning efficiency; end laps must occur over a support, with a minimum 2" bearing; side lap fasteners (screws or button punches) at max 36" o.c. in the field are typical; diaphragm design may require closer spacing; panel orientation and lap locations must be shown explicitly on deck layout plans, especially at re-entrant corners and irregular bays. (4) Edge Conditions: Closure Plates, Slab Edges & Pour Stops—at slab perimeters, pour stops (edge forms) and closure plates are required to contain wet concrete and define the slab edge profile; closure plates fill open rib ends at beam flanges or walls; pour stops are typically L-shaped or Z-shaped sheet metal, selected by height to match total slab thickness, and must be fastened to the supporting member at max 12" o.c.; detailers should call out pour stop gauge (typically 16 ga. or 18 ga.), height, fastener type, and whether the pour stop is to remain in place or be removed after cure; cantilever slab edges require special attention—the pour stop must be designed to resist wet concrete hydrostatic pressure without deflecting.
Critical Detailing Parameters:
Geometry, Fastening & Edge ConditionsCritical Detailing Parameters Summary
Parameter
Key Requirement
Code/Standard Reference
Common Error
Slab Thickness & Rib Fill
Dimension from top of deck rib to top of concrete; minimum 3.5" cover above top flute for structural slabs
ACI 318-19 Table 26.4.1 (interior exposure); verify against fire-rating assembly requirements
Dimensioning from deck soffit instead of top of rib; omitting concrete fill thickness annotation on plans
Deck Fastening Patterns
Fasten to every support; max 12" o.c. in interior zones; 6" o.c. at end laps and diaphragm chord regions
SDI DDMO3 standard practice
Skipping fasteners at some supports; using uniform spacing instead of tighter spacing at end laps and chord regions
End/Side Laps & Orientation
Panels perpendicular to supports; end laps over supports with min 2" bearing; side laps max 36" o.c.
SDI best practices; diaphragm design may require closer side lap spacing
End laps between supports (not over supports); orienting panels parallel to supports; omitting lap locations on layout plans
Edge Conditions
Pour stops and closure plates at perimeters; pour stops fastened at max 12" o.c.; specify gauge, height, fastener type, and removal status
SDI DDMO3; typical pour stop gauge 16 ga. or 18 ga.
Omitting closure plates at open rib ends; not specifying pour stop removal status; using standard pour stops at cantilever edges without hydrostatic pressure design
Correct Form Deck Detailing Requires Precise Coordination Across Four Interconnected Technical Areas
Cantilever Slab Edges Require Special Attention: Pour Stop Must Resist Wet Concrete Hydrostatic Pressure Without Deflecting
The Critical Detailing Principle
Field-ready detailing depends on coordinated reinforcement placement, reliable deck bearing, framed openings, and early identification of deflection and ponding risks.
Temperature and shrinkage reinforcement in form deck slabs is typically WWF (welded wire fabric) or deformed bar mats, placed at or near middepth of the concrete fill above the top of deck flute.
Cover control: ACI 318-19 Section 26.6.2 requires minimum 3/4″ clear cover to the top of the reinforcement from the slab top surface for interior protected conditions, and 1.5″ for exterior exposure.
Chairs or bar supports must be specified by the detailer with the correct height to maintain cover — never assume field personnel will interpret cover correctly without explicit callouts on the reinforcement plan.
Where shrinkage-temperature bars run parallel to the deck ribs, ensure bar placement does not fall into the rib void. Bars must bear on a solid concrete surface, which means cross-bars or stand-alone chairs are often necessary.
At open-web steel joist seats, form deck must bear on the top chord extension or bridging angle with minimum 1.5″ bearing length.
Small penetrations (≤6″ diameter) through form deck slabs are typically handled by field cutting after concrete cure, with added bar reinforcement around the perimeter per the structural engineer's standard detail.
Larger openings (>6″) require framed header conditions — either trimmer angles welded or bolted to adjacent joists/beams, or supplemental framing sized for the tributary concrete load.
Do not span unframed openings: Never allow deck to span across an unframed opening wider than the manufacturer's published unshored span table allows.
Form deck spanning between joists or beams must be checked for wet concrete ponding — the condition where initial deflection under wet concrete weight causes additional concrete to pool, increasing load, which causes further deflection in a compounding cycle.
SDI and AISI S310 provide calculation methods for ponding amplification. Detailers should flag any bay where the form deck span exceeds 8 feet at 22 gauge or 10 feet at 20 gauge (approximate thresholds — always verify against manufacturer span tables) for ponding review by the EOR.
Shoring requirements, if any, must be called out on both the structural drawings and the erection sequence notes.
Coordination principle: Reinforcement, deck bearing, openings, camber, and temporary support conditions must function as one coordinated structural detail.
Reinforcement Interface & Structural Coordination Details
Reinforcement Mat Placement Above Form Deck
REBAR Deck-to-Joist Bearing & Seat Interaction
Openings, Penetrations & Trimmer Details
Camber, Deflection & Concrete Ponding Risk
RISK Four Checks Before the Deck Plan Moves Forward
Producing a complete, field-ready form deck submittal requires systematic cross-referencing between the structural drawings, joist shop drawings, deck manufacturer's span tables, and the concrete subcontractor's pour sequence plan. The following checklist covers the minimum content expected on a coordinated form deck shop drawing package.
Show panel orientation (direction arrow), sheet lengths, end and side lap locations over all supports, bay dimensions, and grid reference. Highlight any bays requiring shoring with a clear legend symbol. Confirm all deck runs terminate on a support — no cantilevered free ends beyond 12″ without explicit EOR approval.
Tabulate fastener type, size, and spacing for: (a) deck-to-support at interior bays, (b) deck-to-support at perimeter/diaphragm zones, (c) side lap fasteners in field, and (d) side lap fasteners at diaphragm edges. Reference the applicable SDI DDM03 or AISI S310 design table used to determine spacing. Note any special fastening zones flagged by the diaphragm design engineer.
Provide section cuts at all slab perimeter conditions: pour stop type and gauge, closure plate at beam flange ends, and bearing wall top-of-wall termination. Detail any thickened slab edge conditions. Confirm pour stop height matches total slab thickness shown on structural plan, including any topping slab allowance.
List all openings by mark number, size, location, and trimmer framing requirement. Cross-reference to structural framing plan and note if supplemental framing is by the steel fabricator, miscellaneous metals subcontractor, or mechanical contractor. Flag any opening that interrupts a diaphragm chord or collector for EOR special detailing.
Shop Drawing Coordination & Field-Ready Detailing Checklist
Deck Layout Plan
Fastening Schedule
Edge & Closure Details
Opening & Penetration Schedule
Common Detailing Errors to Avoid
Key Reference Standards
