Steel Deck Quality Control
Why Pre-Submission Review Matters
Every Drawing Must Pass Through a Quality Gate
Pre-submission review is the final opportunity to identify detailing errors, missing information, coordination conflicts, and code deficiencies before the drawing package reaches the Engineer of Record. A few minutes spent reviewing can prevent weeks of rework later.
The Review Funnel
COMPLETE SHOP DRAWING PACKAGE
Technical Review
Coordination Review
Code & Specification Check
APPROVED SUBMITTAL
Issues Discovered Before Submission
Deck Profile Errors
Incorrect depth, gauge, profile type, or rib designation.
Support Condition Issues
Bearing lengths, end laps, and support assumptions.
Attachment Omissions
Missing welds, fasteners, or SDI references.
Edge & Opening Gaps
Pour stops, closures, edge angles, and penetrations.
Coordination Conflicts
Structural steel, joists, BIM, and MEP clashes.
Where Is It Cheapest to Find an Error?
QC
Quality Principle
Review Once. Build Once.
Every error discovered during pre-submission review removes downstream risk. The earlier an issue is identified, the cheaper it is to correct, the faster approvals move, and the lower the probability of costly field rework.
Verification Checklist

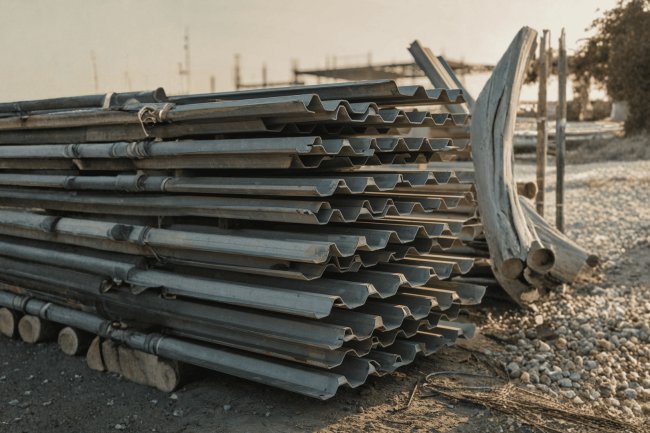

Deck Profile, Gauge & Material Verification
The first pre-submission check is confirming that the deck product on the shop drawings matches the contract documents exactly. Mismatches here cascade through every downstream check [web:45][web:48].
A
Profile Designation & Depth
Verify the deck profile type, rib depth, rib width, and pitch against the structural drawings and SDI deck references. Composite and non-composite profiles must be clearly differentiated [web:45][web:48].
- >Confirm profile type, such as 1.5" Type B, 2" Type IR, or 3" Deep Rib. >Check rib geometry against manufacturer literature and SDI tables. >Separate composite deck from non-composite deck in the callout.
B
Steel Gauge & Base Metal Thickness
Confirm the design gauge against the minimum base metal thickness. Gauge is nominal, so the drawing should also state minimum uncoated BMT in inches to avoid confusion with coating thickness [web:49].
C
Steel Grade & Coating
Verify yield strength and coating specification so the drawing matches project exposure requirements. G60 vs. G90, and primer-painted vs. galvanized, must align with the project specification and intended environment [web:45].
D
Manufacturer & Product Listing
If a manufacturer is named, confirm the product series is approved as an equal, has current ICC or IAPMO evaluation documentation where needed, and is listed in the SDI diaphragm design tables used for the structural calculations [web:40][web:44][web:48].
Why This Review Comes First
These checks lock the product identity before the rest of the package is reviewed, which prevents rework and avoids propagating the wrong deck selection through the set [web:45][web:48].
Steel deck standards reference: SDI / ICC-ES / ASTM context
Technical Standards
Structural Attachment & Diaphragm Detailing
Strength & Stiffness
Attachment details govern diaphragm structural integrity. These must be explicitly shown on shop drawings to prevent field interpretation errors.
Fastener Schedules
Shop drawings must define fastening patterns at supports (e.g., 36/7, 36/4). Patterns must match diaphragm calculations—avoid pulling high-shear patterns into interior zones.
- • 5/8" Puddle Welds (SDI)
- • Mechanical Fastener Type
- • Sidelap Spacing
- • Zone Designations
Bearing & End Conditions
Satisfy SDI minimums: 1.5" on steel, 3.5" on concrete. Review end laps (min 2"), side laps, and cantilever conditions at every support.
Pro-Tip: Composite deck ribs must run perpendicular to joists unless specifically detailed otherwise.
Perimeter Zone
High shear, tight fastening at edges.
Edge Zone
Intermediate spacing and reinforcement.
Interior Field
Standard fastener pattern for panel field.
Zoning Verification
Diaphragm design governs attachment—never apply a single fastener pattern uniformly across the entire floor or roof without zoning verification.
Steel Deck Coordination Review
Edge Conditions, Openings & Coordination
Most Field Problems Start at Interfaces
Openings, slab edges, penetrations, expansion joints, fireproofing zones, and structural transitions represent the highest-risk coordination areas on steel deck projects. These conditions require detailed review before approval and fabrication.
Deck Coordination Crossroads
DECK
LAYOUT
Perimeter Edges
Pour Stops & Edge Angles
Openings
Headers, Angles & Reinforcing
Structural Plan
Beams, Joists & Bearings
Closure Strips
Flute Closures & Cell Fill
Fireproofing & Camber
SFRM, Deflection & Haunches
High-Risk Coordination Checks
✓ Pour Stop Height
Verify edge condition matches slab depth and structural requirements.
✓ Opening Coordination
Cross-check mechanical, plumbing, and electrical penetrations.
✓ Deck Support
Confirm deck never bears on unsupported or unstiffened conditions.
✓ Expansion Joints
Verify termination and continuity requirements are detailed.
✓ Closure Details
Ensure flute closures and cell fill requirements are specified.
✓ Fireproofing Compatibility
Confirm deck attachments remain accessible where welding is required.
Every Condition Requires Cross-Discipline Validation
Structural
↔
Deck Detailing
↔
BIM / MEP
↔
Constructible
EDGE
Coordination Principle
Every Opening, Edge, and Transition Is a Coordination Zone
Deck failures rarely occur in standard field areas. They occur at interfaces where structure, MEP systems, fireproofing, and detailing converge. Thorough coordination at these zones dramatically reduces RFIs, field modifications, concrete placement issues, and installation delays.
Final Review
Submittal Package Completeness
Before submitting the shop drawing package, run one final completeness audit. A technically correct drawing that is missing required information will still be rejected.
PKG
Required Submittal Documents
Cover sheet with project name, address, architect/EOR contact, drawing revision level, and date.
Material certifications, including mill certs for steel and ASTM compliance statements.
Manufacturer product data sheets and current ICC evaluation reports where required.
Diaphragm calculations or reference to pre-engineered SDI tables.
General notes sheet referencing IBC, AISC, SDI, and AWS D1.3.
Deck layout plans at minimum 1:50 scale with grid lines, column marks, and north arrow.
Detail sheets covering edges, openings, cantilevers, and transitions.
1
Pre-Submission Sign-Off Checklist
- Deck profile, gauge, and material grade verified against contract documents.
- Diaphragm attachment zones and fastener schedules match structural calculations.
- All bearing lengths and lap conditions meet SDI minimums.
- Pour stops, edge angles, and closures detailed at all perimeter conditions.
- All openings dimensioned, located, and reinforced per structural requirements.
- Deck layout coordinated with framing plan and MEP penetrations.
- Manufacturer data, mill certs, and evaluation reports included.
- Drawing revision block current and all sheets consistently numbered.
- Internal senior detailer review signature obtained before release.
2
Why the Final Gate Matters
A complete, well-coordinated submittal package signals professionalism and builds EOR confidence, which helps accelerate approval and keeps the project on the critical path.
Final Rule
If a sheet, cert, calculation, or signature is missing, the package is not ready — even if the drawings are technically correct.
