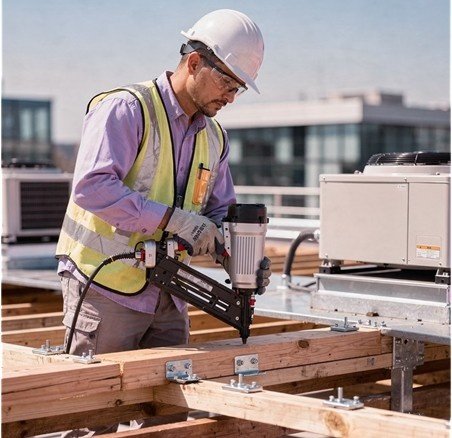

Optimizing Wood Nailer Placement for Mechanical Equipment Support
A practical guide for design engineers, project managers, and construction professionals navigating one of the most detail-sensitive aspects of building systems integration—getting wood nailer placement right the first time.
Introduction: Why Wood Nailer Placement Matters
In commercial construction, small components often carry critical responsibilities. Wood nailers — embedded in roofing systems, parapets, and structural decks — play a vital role in supporting mechanical equipment and maintaining system performance.
When properly placed, nailers ensure structural continuity and long-term durability. When overlooked, they can lead to misalignment, membrane failure, costly rework, and safety risks.
Structural Reliability
Proper nailer placement distributes mechanical loads evenly, preventing localized stress and structural failure.
Roofing System Integrity
Nailers provide a secure interface for membranes and curbs, ensuring watertight and durable roof assemblies.
Code & Safety Compliance
Correct placement ensures compliance with building codes and manufacturer standards, reducing inspection risks.
Understanding the Role of Wood Nailers in Mechanical Equipment Support
Wood nailers serve multiple structural and functional roles in mechanical support systems. Their placement, sizing, and fastening directly impact performance, durability, and system integration.
Substrate for Fastening
Provides a reliable base for anchoring curbs, equipment supports, pipe brackets, and conduit systems where direct fastening to steel or concrete is impractical.
Membrane Transition Support
Acts as a backing surface for roofing membrane terminations and flashing at penetrations, ensuring proper sealing and long-term waterproofing performance.
Height & Slope Adjustment
Allows leveling of mechanical equipment by tapering or shimming nailers to match roof slopes, ensuring proper drainage and equipment operation.
Vibration Isolation Buffer
Works with isolation pads to reduce vibration transfer from mechanical units, protecting structural elements and improving long-term system performance.
A well-designed wood nailer system ensures proper load transfer, waterproofing integrity, and equipment stability.
Key Factors That Influence Wood Nailer Placement
Wood nailer placement depends on multiple variables — structural loads, equipment geometry, and roofing assembly depth — all of which must be coordinated together for optimal performance.
Equipment Load
Mechanical unit weight determines nailer size and spacing. Heavier equipment requires wider or doubled nailers to distribute loads effectively across the structure.
Equipment Footprint
Nailer layout must extend beyond curb edges (typically 1.5–2 inches) to allow proper fastening, flashing continuity, and secure attachment.
Roof Assembly Thickness
Nailer height must match insulation, cover boards, and membrane layers to maintain flush transitions and prevent uneven curb conditions.
Insulation & Compression
Account for insulation compression, membrane thickness, and layering. BIM coordination helps ensure accurate nailer dimensions and alignment.
Structural Deck Compatibility and Fastening Strategy
Wood nailers must be compatible with the structural deck they are attached to. Proper fastening strategies depend on substrate type, load requirements, and code compliance.
Steel Deck
Fastened using powder-actuated fasteners or screws through deck ribs. Spacing and penetration depend on uplift resistance and deck gauge.
Wood Structural Panels
Nailers are lag-bolted or through-bolted into framing members, ensuring efficient load transfer to supporting structural elements.
Concrete Deck
Uses expansion anchors or cast-in-place bolts. Proper embedment and pre-drilling are critical for seismic and high-wind performance.
Hybrid Assemblies
Requires coordination with structural framing layouts to ensure fasteners engage solid bearing members—not just deck infill areas.
Never assume nailer placement — always verify structural framing beneath using coordinated drawings.
Common Nailer Placement Mistakes — and How to Avoid Them
Even experienced teams can fall into predictable traps when it comes to wood nailer placement. Recognizing these patterns is the first step toward eliminating them from your workflow.
1. Misalignment with Structural Framing
Placing nailers based solely on mechanical equipment layout—without verifying that fastener locations align with structural members—results in inadequate load transfer and potential deck damage. Always overlay structural framing plans before finalizing nailer coordinates.
2. Incorrect Nailer Height
Specifying nailer height based only on nominal insulation thickness—without accounting for actual installed depth, compression, and membrane thickness—leads to mismatched curb heights and flashing failures. Use confirmed as-built assembly depths wherever possible.
3. Inadequate Nailer Width
Undersized nailers that don’t extend sufficiently beyond the equipment curb leave inadequate edge distance for fasteners and membrane termination, creating weak points in the waterproofing assembly. Follow manufacturer specifications and roofing consultant recommendations for minimum extension dimensions.
4. Missing Fire-Treated Lumber Specification
In commercial construction, building codes typically require fire-retardant-treated (FRT) lumber for nailers used in roofing assemblies. Omitting this specification—or substituting untreated lumber in the field—can trigger code violations and require costly replacement work.
Best Practices for Wood Nailer Specification and Detailing
Accurate nailer placement requires more than layout — it demands disciplined specification, coordinated detailing, and clear documentation across all project drawings.
Specification Essentials
- Specify species & grade (No. 2 DF or SYP)
- Use FRT lumber for commercial rooftops
- Define preservative treatment for moisture exposure
- Match nailer height with roof assembly drawings
- Include engineered fastener schedules
Detailing Best Practices
- Show nailers in plan and section views
- Dimension width beyond curb edges clearly
- Align with roofing manufacturer requirements
- Use BIM for 3D validation and clash detection
- Issue coordinated drawing packages
Coordination Strategy
Integrate structural, roofing, and architectural drawings to eliminate conflicts. Consistency across disciplines is essential to avoid RFIs and field errors.
Documentation Discipline
Avoid isolated details. Issue nailer layouts as part of a coordinated documentation set to ensure clarity during procurement and installation.
Field Installation Considerations
Even the most precisely detailed nailer placement plan can fall short if field installation practices aren’t aligned with design intent. Bridging the gap between drawing and execution requires clear communication, qualified supervision, and a few non-negotiable installation standards.
Before Installation
- Verify delivered lumber matches specification—species, grade, treatment type, and moisture content.
- Confirm nailer dimensions against the approved shop drawings before cutting begins.
- Mark structural framing locations on the deck surface using structural drawings as a reference before positioning nailers.
- Check roof assembly depth at multiple points to confirm nailer height is consistent with the design.
During and After Installation
- Use a torque specification for fasteners—hand-tight is not sufficient for wind uplift resistance.
- Inspect all fastener penetrations to confirm they land on structural members, not just deck infill.
- Document installed nailer locations photographically before roofing membrane installation conceals them.
- Conduct a pre-membrane inspection with the roofing contractor to verify nailer height, alignment, and fastening are acceptable before proceeding.
Pro Tip:
Photographic documentation of nailer placement—showing fastener locations, lumber dimensions, and deck interface conditions—is invaluable for warranty claims, insurance purposes, and future facility modifications. Make it a standard part of your quality control protocol.
The Role of BIM and CAD in Optimizing Nailer Placement
BIM and advanced CAD workflows transform nailer coordination by resolving conflicts, improving accuracy, and enabling better documentation across the project lifecycle.
1. 3D Clash Detection
Identify conflicts between nailers, framing, and mechanical systems before construction begins.
2. Coordinated Drawing Sets
Ensure consistency across architectural, structural, and mechanical drawings using linked BIM models.
3. Accurate Quantity Takeoffs
Generate precise material schedules for lumber size, quantity, and treatment specifications.
4. As-Built Documentation
Maintain accurate records by updating BIM models to reflect real-world installation conditions.
BIM-driven coordination reduces RFIs, minimizes rework, and improves construction efficiency.
Key Takeaways for Your Next Project
Wood nailer placement rewards careful planning and punishes improvisation. Apply these principles to reduce risk, improve coordination, and elevate documentation quality.
Coordinate Early
Resolve nailer placement during design development. Align structural, mechanical, and architectural drawings before issuing for permit.
Leverage BIM and CAD
Use 3D modeling to validate placement and detect conflicts early, reducing costly field rework and coordination issues.
Specify Precisely
Clearly define species, grade, treatment, dimensions, and fastener requirements. Ambiguity leads to field errors.
Inspect and Document
Verify nailer placement, fastening, and alignment before roofing installation conceals the work permanently.
Optimizing wood nailer placement is an exercise in integration — combining structural engineering, roofing systems, mechanical coordination, and construction execution into one precise, well-documented solution.
