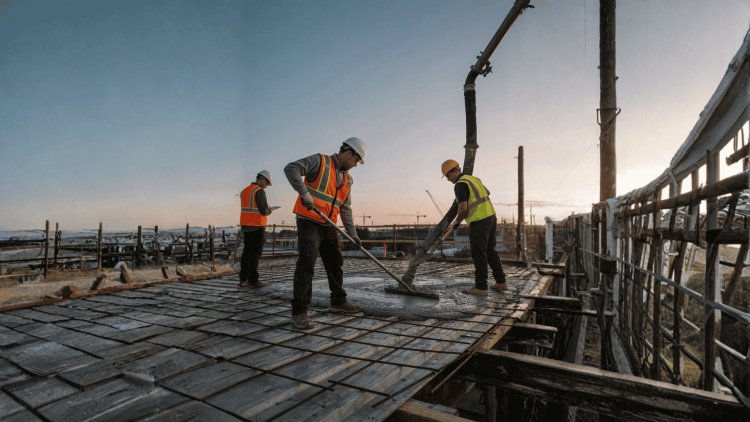

Floor Deck Notes for Concrete Placement Coordination
A practical field reference for construction project engineers, concrete contractors, and site superintendents managing composite floor deck pours — covering load limits, sequencing, shoring, finishing, and crew coordination checkpoints from pre-pour through final cure.
Know Your Deck Before the Truck Rolls
The single most costly mistake on a composite deck pour is treating the metal deck as a neutral substrate. It is a structural element with defined load limits, specific bearing conditions, and deflection tolerances that directly govern how concrete can be placed. Before the first mixer backs in, every member of the placement crew — from the pump operator to the screeding gang — must understand what the deck can and cannot carry.
Loading
Construction-Stage Load Limits
Metal deck is designed for two distinct loading phases: construction stage (before concrete cures) and composite stage (after cure). During construction, the deck alone carries wet concrete, workers, and equipment. Typical construction-stage live load is 20 psf, but always verify against the structural drawings. Wet concrete alone can exceed 75–100 psf depending on slab thickness, leaving very little margin for equipment.
Verify the Construction Load Envelope
Density Directly Changes Construction Demand
Distributed Capacity Does Not Equal Point-Load Capacity
Pump lines, buggies, placement equipment, workers, and temporary accumulations of wet concrete can concentrate construction load within a small deck region. Placement planning must account for where those loads actually occur, not only the overall average floor load.
Composite Deck
Profiles such as 3VLI or 3VS carry additional concrete within the deeper flute volume.
Formlok Deck
A shallower flute geometry changes both concrete volume and deck capacity assumptions.
Wrong Fill Volume Creates Two Different Risks
Under-Order Concrete
Placement is interrupted when the calculated quantity does not account for actual flute volume.
Stockpile Surplus
Surplus wet concrete concentrated in one bay can overload deck that was never designed for that temporary load condition.
Know Exactly What Has Been Installed
Structural Geometry Affects Placement Logistics
Deck ribs, shear studs, beams, temporary equipment, and pump hose routing occupy the same construction surface. Knowing the deck layout before the pour allows placement crews to avoid creating unsafe concentrated loads or damaging structural attachments.
What the Placement Crew Must Know
The Pour Plan Starts With the Deck
Before concrete placement begins, the team needs a shared understanding of the temporary structural condition beneath the pour. Deck capacity, concrete weight, flute volume, equipment loading, rib direction, attachment geometry, and pump routing all influence whether concrete can be placed safely and predictably.
Know the Deck Before Loading the Deck
Composite deck is not simply permanent formwork beneath a concrete slab. During placement, it is the structure carrying wet concrete, workers, pump lines, buggies, and other construction loads before composite action exists. Verifying project-specific construction-stage capacity, concrete density, deck profile, fill volume, rib orientation, manufacturer data, and placement logistics before the first truck arrives is essential to preventing overload, material shortages, unsafe stockpiling, and avoidable field problems.
A structured pre-pour checklist prevents the kind of reactive firefighting that derails pours mid-bay. Coordinate across trades at least 72 hours before placement, and conduct a final walk-through the morning of the pour. The following checkpoints represent minimum due diligence for safe, efficient concrete placement on composite floor decks.
The morning-of-pour walk-through should confirm structural approval, shoring conditions, equipment staging, and utility coordination together. Treat the deck as a complete temporary-and-permanent structural system, not simply as a surface ready to receive concrete.
Pre-Pour Coordination Checkpoints
72 Hours → Pour Morning
Four Conditions to Clear Before Placement
Release the Bay Only When All Four Gates Are Clear
Placement sequence is not merely a logistics preference—it is a structural decision. Improper sequencing can induce unintended differential deflections in the deck, cause wet concrete to migrate toward mid-span, and overload individual bays or beams beyond their construction-stage capacity. The EOR's placement sequence plan must be followed exactly, and any deviation requires re-approval. [804][842]
Composite deck deflects under wet concrete load. When adjacent bays are poured without accounting for cumulative beam reactions, mid-span deflection can pool concrete—a phenomenon known as concrete ponding. Ponding adds concrete volume and dead load beyond the nominal design thickness; it can become self-amplifying as additional deflection attracts more concrete. [804][842]
A disciplined bay-by-bay sequence controls temporary reactions and prevents partial pours from introducing uneven loading, cold joints, or unplanned construction-stage demand.
Begin placement at the bay farthest from the pump to allow continuous hose advancement toward the truck. This supports a controlled, progressive placement path rather than repeated repositioning and localized stockpiling.
Finish striking off one bay before moving the pump to the adjacent bay. Partial pours create cold joints and can introduce uneven construction loading across adjacent bays.
Structural steel beams may have engineered camber to counteract expected dead-load deflection. Do not fill the camber with extra concrete; screed to the design elevation, not to the steel surface.
Record time, bay number, and approximate yardage placed in each bay for the project record. This information is critical if slab thickness, flatness, or construction-load disputes arise later.
Finishing a slab to a fixed datum without considering deck and framing deflection can add concrete at mid-span. This added volume is additional dead load, not harmless tolerance. [842][844]
Concrete placement on multi-bay composite deck is a structural operation, not just a logistics exercise. Follow the EOR-approved sequence, avoid localized stockpiling, complete and level each bay before advancing, respect engineered beam camber, monitor screed elevations, and document actual placement. When multiple floors are poured, trace shoring loads to the foundation and verify lower-level strength before adding demand from above. Controlled sequencing protects the deck, supporting steel, slab thickness, and final floor performance. [804][838]
Concrete Placement Sequencing
on Multi-Bay DecksWhy Sequence Matters Structurally
Pour, Strike Off, Level, Then Advance
Trace Shoring Loads All the Way to the Foundation
Recommended Sequencing Rules
Start at the Far End
Complete Each Bay Fully
Monitor Beam Camber
Document Actual Pour Sequence
Screed to Design Elevation—Not to Deflected Steel
The Placement Sequencing Principle
Achieving specified floor flatness (FF) and floor levelness (FL) on composite deck requires deliberate coordination between the placement crew, the finishing crew, and the testing team. Unlike slab-on-grade construction, composite deck systems continue to deflect as concrete is placed, requiring screed control to adapt to a constantly changing profile. Additional attention must also be given to vibration practices, edge forming, and curing compound compatibility.
Internal vibrators must reach into deck flutes to consolidate concrete around shear studs and reinforcement. Use a 1.5-inch pencil vibrator in the ribs and a standard 2-inch vibrator in the slab above. Avoid over-vibration near the surface to prevent segregation. Maintain insertion spacing of no more than 18 inches and keep the vibrator continuously moving during placement.
Screed rails and laser screed targets must be established from the structural slab top elevation, not the deck surface. Beam camber must be considered because slab thickness varies across the span. Wet checks using rod-and-level procedures or digital elevation equipment should be performed on a maximum 10-foot grid throughout the pour.
Elevated slab edges require continuous edge angles, closure plates, or engineered edge forms capable of resisting wet concrete pressure. Forms should be inspected immediately before the pour and at every elevation transition. A failed edge form during placement represents a major life-safety hazard due to falling concrete loads.
Select curing compounds compatible with future floor finishes, coatings, and adhesives. Solvent-based compounds may interfere with epoxy systems, while white-pigmented compounds are often preferred during hot-weather pours due to their heat-reflective properties. Coordination with architectural finish specifications must occur before placement because curing products cannot be changed afterward.
Finishing, Flatness & Cure Coordination
Vibration Practice
Screed and Elevation Control
Edge Form Integrity
Curing Compound Selection
