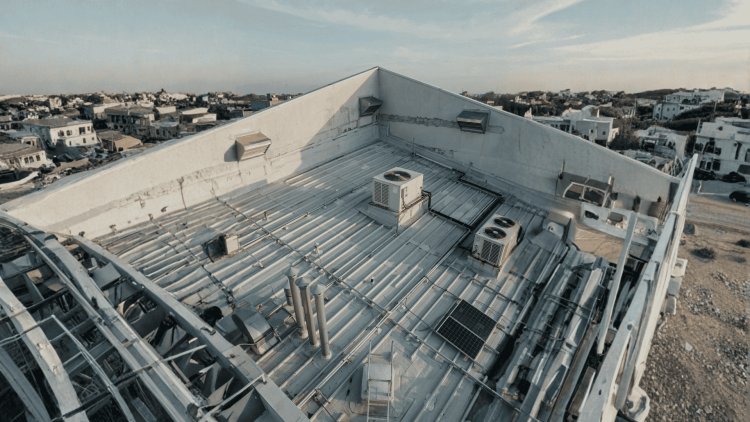

Deck Layout Planning Around Roof Drainage Zones

Why Drainage Zones Must Drive Deck Layout — Not Follow It

Successful roof systems are designed around water movement first and structural repetition second. When drainage planning is deferred until after deck orientation and framing layouts are finalized, the result is predictable: costly redesigns, field modifications, compromised drainage performance, and increased ponding risk. The most efficient projects treat drainage geometry as a primary design input from the beginning rather than a coordination task performed near the end of design development.

The Core Coordination Problem

Water does not adapt to structural drawings. Structural systems must adapt to how water naturally drains across the roof surface. Ignoring this principle shifts coordination problems from design offices to construction sites.

What Happens When Drainage Is an Afterthought?

The Correct Sequence

Early Multi-Disciplinary Coordination Is Essential

Drainage Geometry Is a Design Input, Not a Coordination Output

Primary drains, overflow systems, slope paths, and ponding zones should be established before deck orientation decisions are locked in. When drainage drives layout planning, the structural system becomes simpler, more efficient, and easier to construct.

Water Should Define the Roof Before Steel Does

Every roof ultimately succeeds or fails based on its ability to remove water efficiently. By starting with drainage zone geometry and then coordinating framing, deck orientation, and detailing around that geometry, project teams avoid costly redesigns, reduce construction risk, and deliver roof systems that perform as intended throughout their service life.

Drain locations are not isolated plumbing points. Each one defines a catchment zone that must be coordinated with slopes, deck ribs, joists, framing, insulation, overflow paths, and ponding behavior.

Every Drain Defines a Structural and Hydraulic Territory

Draw the drainage boundaries before fixing the deck layout. The goal is to ensure that every slope reaches its intended outlet without ribs, beams, edge closures, insulation transitions, or framing geometry creating unintended dams or low pockets.

How Zones Drive Deck Layout

Coordination Sequence

The Coordination Principle

Treat each drain as the center of a coordinated geometric system. When catchment boundaries, slope paths, overflow routes, deck orientation, and deflected framing are resolved together, drainage becomes a controlling input to the structural layout—not a late-stage opening to be fitted into it.

How Flute Direction Interacts With Drainage

The most consequential deck layout decision for roof drainage performance is flute orientation relative to slope direction. This choice impacts water movement, insulation layout, pour stop detailing, and drain sump integration.

Flutes Parallel to Slope — Preferred

When flutes run parallel to slope, water flows unobstructed toward drains. This minimizes ponding, simplifies tapered insulation, and allows clean sump positioning. Structurally, this orientation means deck spans perpendicular to joists or beams — the standard configuration.

Flutes Perpendicular to Slope — Complications

Perpendicular flutes act as dams, trapping water between ribs until overtopping. On low-slope roofs (<¼" per foot), this creates shallow ponding, accelerates membrane wear, and increases tributary load. Requires increased slope and sump details bridging rib valleys. Always coordinate with roofing manufacturer before finalizing.

Standard Workflow

• Determine Slope Direction: Map slope from drain layout.
• Align Deck Flutes: Orient flutes parallel to slope when structurally feasible.

This two-step sequence ensures drainage is a primary design driver, not an afterthought.

Key Insight

Flute orientation directly governs drainage efficiency. Parallel alignment simplifies performance, while perpendicular requires compensating measures. Always integrate slope mapping and flute orientation early in roof deck design.

Framing Grid Coordination Joists, Beams, and Drain Locations

Roof drainage design and structural framing cannot be developed independently. Drain bodies require physical space, structural bays determine drainage catchment areas, joist camber influences final roof slopes, and overflow systems create localized framing demands at parapet walls. Successful roof systems emerge when drainage requirements are incorporated into framing grid development from the earliest stages of design rather than being coordinated after the structure is defined.

Drain Locations Are Structural Decisions

Every drain location must simultaneously satisfy hydraulic, structural, roofing, and constructability requirements. Treating drain placement as a late-stage plumbing exercise almost always creates downstream coordination problems.

Bay Size Directly Influences Drainage Area

Structural bay geometry determines the effective catchment area contributing runoff to each roof drain. As bays become larger, drainage capacity and overflow requirements become increasingly important design controls.

A coordinated roof deck layout begins with the drainage plan and continues through structural modeling, detailing, fabrication, and shop drawing approval.

The Drainage Plan Is a Structural Input

Do not treat drains, scuppers, slopes, and overflow elevations as downstream MEP information. They establish openings, local loads, framing clearances, deck orientation, and the geometry required for positive drainage.

Information Required at Each Milestone

The Coordination Principle

Obtain the drainage plan early, map it onto the structural model, resolve clearances before detailing, document rain loads explicitly, and carry every opening and overflow condition through shop drawing approval. A roof deck layout is complete only when it works hydraulically, structurally, and in the field.
