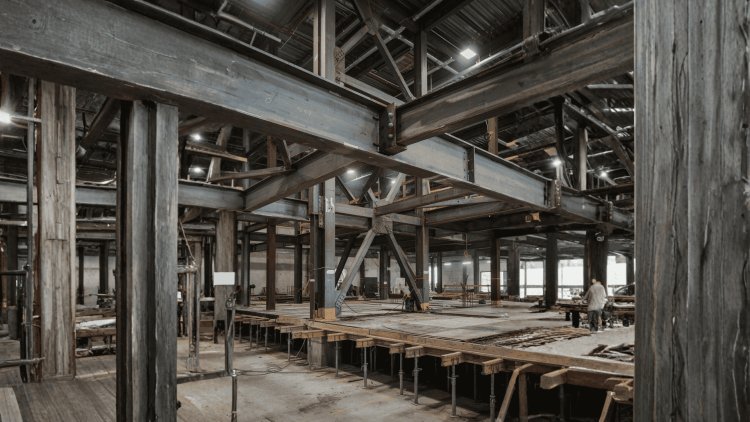

Floor Deck Detailing at Transfer Beam Locations
Transfer beams are among the most structurally demanding elements in a building frame — and the floor deck connections at these locations require a level of detailing precision that goes well beyond standard framing conditions. Where a transfer beam collects and redirects significant gravity loads from columns or walls above, the deckto- beam interface becomes a critical junction for both structural continuity and constructibility. This guide addresses the specific detailing challenges that arise at transfer beam locations, covering connection geometry, load path considerations, reinforcement strategies, and common field coordination issues that structural and detailing engineers must navigate.
Why Transfer Beam Locations Demand Special Attention
The Transfer Beam Interrupts the Normal Hierarchy
Demand
Elevated Reaction Forces
Transfer beams experience significantly higher end reactions than typical members. The deck attachment at the top flange must account for elevated uplift and horizontal shear demands that standard puddle weld patterns may not adequately address without supplemental detailing.
Differential Deflection Risk
Because transfer beams are typically deeper and more heavily loaded than adjacent framing, they deflect differently under load. This differential movement can impose secondary stresses on the deck at the interface, particularly if the deck spans continuously across the beam top flange without proper accommodation for rotation or slip.
Why the Deck Interface Matters
Camber Coordination
Transfer beams are often heavily cambered to offset dead load deflection. The deck installer must account for the beam's pre-erection geometry and the final in-place profile when determining attachment elevations and flute orientation — a detail often missed in standard shop drawing review.
Review
Coordinate Beam Geometry Through the Installation Sequence
Transfer beam locations should be explicitly identified during deck layout and shop drawing review so the connection, movement, bearing, camber, attachment elevation, and flute orientation can be evaluated as a special structural condition rather than treated as part of the repetitive floor framing.
What the Detailer Must Resolve
Transfer Beam Locations Require Dedicated Deck Coordination
Transfer beams interrupt the predictable load path used in standard floor framing and introduce elevated reactions, localized deck attachment demands, differential deflection, and significant camber into the deck-to-beam interface. These conditions must be explicitly recognized during layout and shop drawing review so that attachment patterns, movement compatibility, bearing, elevations, and flute orientation are coordinated before construction. Treating the transfer beam as a special structural zone prevents repetitive standard details from being applied where the structural behavior is fundamentally different.
Effective detailing at transfer beam locations requires coordinating structural intent with practical field conditions. The following strategies represent best practice for structural detailers working in these high-demand zones.
At transfer beams, standard 5/8" puddle welds at 12" o.c. are frequently insufficient. Detailers should confirm with the EOR whether a closer weld spacing (e.g., 6" o.c.) or supplemental arc spot welds are required along the full beam length, particularly within the high-shear zones near supports.
When floor deck terminates at a transfer beam rather than continuing over it, the edge condition must be carefully detailed. A formed steel edge angle or closure plate is required to contain the concrete slab and provide a bearing surface.
The orientation of deck flutes relative to the transfer beam axis significantly affects the effective concrete slab thickness available for composite action and diaphragm transfer. Flutes running parallel to the beam (deck spanning perpendicular) result in a thinner concrete topping contribution, while flutes perpendicular to the beam allow deeper slab engagement.
The concrete slab over a transfer beam often requires additional bottom reinforcing bars or wire reinforcement to control cracking driven by the beam's deflection profile. Detail drawings should clearly show the extent, bar size, and lap requirements for this supplemental steel.
The deck-to-transfer beam interface should be treated as a coordinated structural zone rather than an isolated deck condition. Weld density, termination details, flute orientation, slab reinforcement, diaphragm continuity, and stud placement should all be resolved together before shop drawings are finalized.
Key Detailing Strategies at the Deck-to-Transfer Beam Interface
Increased Weld Density at Top Flange
Deck Termination and Edge Conditions
Flute Orientation Relative to Beam Axis
Supplemental Slab Reinforcement
Transfer beam composite design requires careful coordination between structural requirements and deck geometry. Stud counts, spacing, flange width limitations, and obstruction zones must all be resolved before fabrication.
Shear studs are installed within deck valleys after deck attachment. Wide transfer beam flanges often require multiple studs per rib, but AISC and SDI limits typically restrict configurations to two studs per rib. Required composite ratios must be verified against the actual deck geometry modeled.
Two-stud-per-rib layouts require minimum lateral offsets to achieve proper concrete engagement. Narrow beam flanges can conflict with rib geometry, making early review essential. Any incompatibility should be resolved with the Engineer of Record before fabrication release.
Clip angles, shear tabs, moment plates, and framing connections often obstruct stud installation. These stud-free zones must be identified during detailing and compensated by redistributing studs elsewhere along the beam while maintaining the required composite capacity.
AISC 360 requires studs to extend at least 1.5 inches above the deck rib. Deep-rib profiles often require 4.5-inch studs or longer, which may conflict with fireproofing systems or underside clearances. Final stud schedules must be coordinated with all assembly requirements.
Shear Stud Layout & Composite Action Considerations
Stud Placement in Fluted Deck
Stagger & Offset Requirements
Stud-Free Zones & Conflicts
Deck-to-Stud Height Coordination
Even experienced detailers encounter recurring errors at transfer beam locations. Understanding these failure modes — and the conditions that produce them — is the most direct path to clean, constructible shop drawings that survive field review without costly RFIs or rework.
Transfer beam conditions combine edge geometry, camber, diaphragm demands, bearing requirements, and erection tolerances. Each must be explicitly resolved before the detailing package reaches the field.
Common Detailing Errors and How to Avoid Them
Most Field Problems Begin as Small Drawing Omissions
Transfer beam deck detailing sits at the intersection of structural engineering intent, fabricator capability, and field constructibility. The details discussed in this guide — weld density, stud coordination, closure conditions, camber accommodation, and slab reinforcement — are not independent line items on a checklist. They are interrelated decisions that must be resolved in a coordinated sequence, ideally during the early shop drawing preparation phase before any fabrication begins.
Resolve geometry first, then diaphragm requirements, stud conflicts, and closure conditions before the detail reaches fabrication.
Obtain final cambered beam geometry, top flange width at all connection points, and confirmed bearing elevations before starting deck layout in the model.
Identify zone-specific weld and fastener requirements from the EOR's diaphragm design. Do not default to minimum SDI patterns at high-demand transfer zones.
Map all incoming beam connections along the transfer beam top flange and identify stud-free zones before the stud schedule is finalized. Submit any redistribution for EOR review.
Every deck edge at a transfer beam — whether terminating, lapping, or butting — requires a named detail on the shop drawing. Never rely on field judgment for closure conditions at these locations.
Consac provides specialized structural detailing services for complex steel framing conditions, including transfer beam systems, composite deck layouts, and coordination-intensive floor framing. Our detailing teams are experienced with the specific demands of high-load transfer zones and work in close coordination with engineers and fabricators to produce shop drawings that are accurate, complete, and constructible from the first submission.
Whether you are detailing a one-story podium transfer or a multi-level high-rise redistribution system, Consac's expertise in steel deck and joist detailing ensures that critical connection details are resolved — not deferred to the field.
