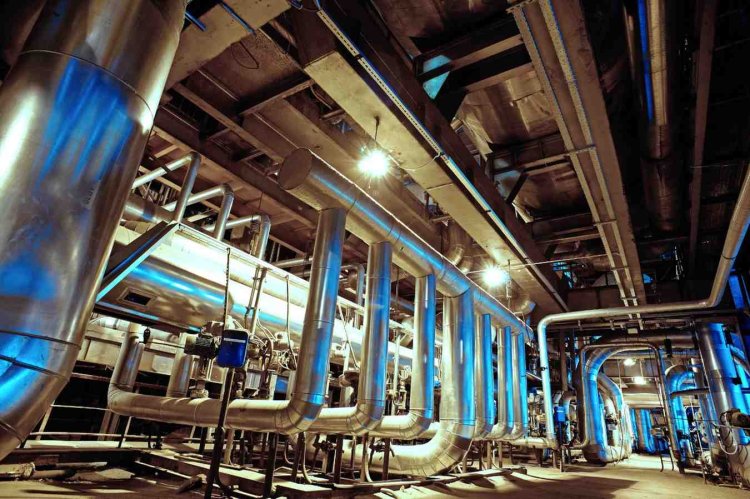

Coordinating Steel Joists with MEP Systems: Avoiding Design Clashes
In commercial and industrial construction, steel joists form the backbone of structural support—but they don't work in isolation. Above, below, and around them runs a complex network of mechanical, electrical, and plumbing systems that must share the same spatial envelope. When coordination fails, the result is costly rework, schedule delays, and on-site conflicts that could have been avoided during design.
Why Steel Joist and MEP Coordination Matters
The Cost of Clashes
Design clashes between steel joists and MEP systems create ripple effects throughout a project. Structural modifications during construction can cost 5-10 times more than resolving issues in the design phase. Delays cascade through schedules, impacting subcontractor sequencing and project delivery timelines.
The Coordination Challenge
Steel joists occupy vertical space that MEP trades also need for ductwork, piping, cable trays, and conduit runs. Without proactive coordination, these systems compete for the same zones, leading to field conflicts that halt work and require emergency redesign under pressure.
Common Clash Points Between Steel Joists and MEP
HVAC Ductwork
Large rectangular ducts often require 24-36 inches of clear vertical space and prefer direct, unobstructed runs. Steel joist webs and chords frequently block these pathways, especially in spaces with tight floor-to-floor heights.
Plumbing Risers
Vertical plumbing chases must align across multiple floors. When steel joists shift locations between levels, riser coordination becomes complex, forcing pipes to angle or requiring costly beam penetrations.
Electrical Distribution
Cable trays, bus ducts, and conduit bundles need continuous pathways from electrical rooms to end points. Steel joist layouts that don't anticipate these routes create bottlenecks requiring expensive field modifications.
Fire Protection
Sprinkler systems require specific spacing and coverage patterns. Steel joists can interfere with sprinkler head locations and main distribution piping, particularly in areas with complex ceiling geometries or architectural features.
Proper early coordination between steel joists and MEP systems ensures clash-free design, smoother fabrication, and efficient installation.
Define vertical zones for structure and MEP early in schematic design. Assign dedicated space for ductwork, piping, and electrical runs before steel joist layouts are finalized.
Develop composite plans and sections showing steel joists, MEP mains, and branch routing together. These drawings reveal conflicts before they reach fabrication or the field.
When MEP must penetrate joist webs, plan openings during design with appropriate reinforcement. Document size, location, and structural requirements in both structural and MEP drawings.
Bring structural engineers, MEP designers, and contractors together throughout design development. Address conflicts when changes are easiest and least expensive to implement.
Best Practices for Early Coordination
Establish Clear Spatial Zones
Create Coordination Drawings
Plan Joist Penetrations Strategically
Hold Regular Coordination Meetings
Leveraging BIM for Clash Detection
Building Information Modeling has transformed how teams coordinate steel joists with MEP systems. By creating detailed 3D models of all building elements, BIM software can automatically detect clashes before they become field problems.
Regular clash detection runs throughout design development identify conflicts between steel joists and MEP components. The software generates reports prioritizing clashes by severity, allowing teams to focus on critical issues first. This process catches problems that might be missed in 2D coordination drawings, particularly in complex ceiling areas or mechanical rooms.
Consac employs advanced BIM coordination workflows that integrate structural and MEP models, enabling real-time conflict resolution. This collaborative approach ensures steel joist layouts work harmoniously with building systems from the earliest design stages.
Strategic Design Solutions
|
Structural Strategies
|
|
|
|
MEP Strategies
|
Documentation and Communication
Coordination Submittals
Require detailed coordination drawings showing steel joists and MEP systems together before fabrication begins. Include composite plans, sections, and 3D views of congested areas, with clear dimensions and clearances marked.
Field Installation Sequences
Document the installation sequence for steel joists and MEP systems. Specify which trades work first in each area and identify hold points where coordination must be verified before proceeding to the next phase.
Change Management Protocols
Establish clear procedures for handling field changes that affect coordination. Any modification to steel joist locations or MEP routing must be reviewed for impacts on other systems before implementation.
Moving Forward with Confidence
Effective coordination between steel joists and MEP systems isn't just about avoiding clashes—it's about creating buildings that work efficiently from design through occupancy. By implementing proactive coordination strategies, leveraging BIM technology, and maintaining clear communication across disciplines, project teams can eliminate costly conflicts and deliver projects on time and within budget.
The key is starting early, thinking three-dimensionally, and treating coordination as an integral part of design rather than an afterthought. When structural and MEP teams work together from the beginning, steel joists and building systems coexist harmoniously, creating spaces that function exactly as intended.
Ready to improve coordination on your next project? Invest time in planning, use the right tools, and foster collaboration between all trades. The result will be smoother construction, fewer surprises, and buildings that perform better for years to come.
