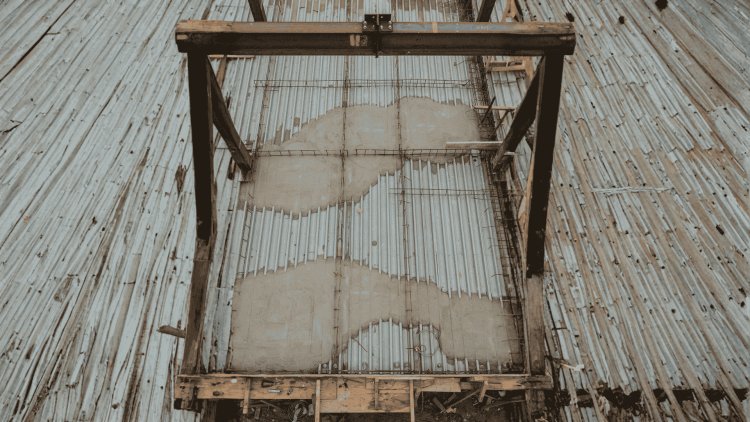

A rigorous examination of how gravity and lateral forces travel through composite and non-composite steel deck systems — from slab surface to foundation — and the critical detailing decisions that govern safe, efficient load transfer at every interface.
Every Structural Force Needs a Route to the Ground
A load path is the continuous sequence of structural components that carries forces from where they are applied to where they are ultimately resisted. In steel deck systems, loads rarely travel through a single member. Instead, they move through an interconnected network of slabs, deck panels, connectors, framing members, columns, walls, and foundations. The strength of a structure depends not only on individual members but on the continuity of this force-transfer chain.
The Structural River System
Applied Loads
People • Equipment • Snow • Wind • Partitions
↓
Concrete Slab
↓
Steel Deck
↓
Beams & Joists
↓
Columns & Frames
↓
Foundation
The Three Questions That Define Every Load Path
①
How Does Load Enter?
Floor loads, walls, equipment, mechanical units, occupancy, and environmental loads.
②
How Is Load Transferred?
Through spanning deck panels, composite action, welds, shear connectors, and framing.
③
How Does Load Exit?
Through beam reactions, collectors, columns, shear walls, and foundations.
Core Load Types in Steel Deck Systems
1. Gravity Loads
Dead load, superimposed dead load, and live load drive floor deck design. These loads determine deck spans, support spacing, and composite slab requirements.
2. Lateral / Diaphragm Loads
Wind and seismic forces act horizontally and must travel through the steel deck diaphragm to collectors, braced frames, or shear walls.
3. Construction Loads
Before composite action develops, the bare deck supports wet concrete, workers, equipment, and temporary construction loads.
Why Detailing Decisions Matter
Deck Orientation
Bearing Length
Weld Patterns
Shear Studs
Pour Stops
Diaphragm Connections
Every one of these details exists for a single purpose: maintaining continuous force transfer. If any link becomes weak, missing, or incorrectly detailed, the load path is interrupted and forces must redistribute elsewhere in the structure.
Structural failures rarely occur because a single beam was undersized. More often, they occur because load could not travel where designers intended. Understanding and preserving the load path is therefore one of the most important responsibilities in steel deck design, detailing, and construction.
Load Path
The Gravity Load Path: From Slab Surface to Column Base
Gravity loads move through a clear hierarchy in a composite floor system. Each hand-off point changes how the load is carried, and each one demands specific detailing attention.
01
S
Slab Surface
Applied gravity load enters the concrete slab, which distributes force in two directions before transferring it to the deck below.
02
D
Steel Deck
The deck spans between supports and channels load one way to the beams, acting as the primary form during construction.
03
B
Composite Beam
Shear studs welded through the deck to the beam top flange create the composite interface that increases stiffness and reduces long-term deflection.
04
C
Girder to Column
The girder transfers concentrated reactions into the column, where connection eccentricity, prying action, and local capacity must be checked carefully.
Detailing Focus at Each Transfer
The load path does not stop at the framing. Column loads accumulate floor by floor and are resolved at the foundation through base plates, anchor rods, and grade beams or pile caps.
PRE
Pre-Composite Behavior
During construction, before concrete reaches design strength, the bare deck carries wet concrete dead load plus construction live load on its own. This often governs deck thickness and deflection control.
POST
Post-Composite Behavior
After composite action activates, superimposed dead loads and live loads are resisted by the composite section. Partial composite ratios can reduce stud count, but they increase deflection and vibration risk.
Key Design Trade-Off
Lower composite ratios may be acceptable structurally, but they require explicit engineering judgment because performance, long-term deflection, and vibration behavior all change with the reduction.
Diaphragm Action: How the Deck Transfers Lateral Forces
Understanding Force Flow & Detailing
Gravity load transfer is straightforward, but lateral load transfer through the steel deck diaphragm is more nuanced. Acting as a horizontal diaphragm, the deck collects inertial forces and routes them to the lateral force-resisting system (LFRS) — whether moment frames, braced frames, or shear walls. Conceptually, the diaphragm behaves like a deep beam: the deck corrugations resist shear, while collector beams act as flanges accumulating chord forces.
Deck-to-Beam Welds
Side-lap and end-lap weld patterns must match calculated diaphragm shear demand, not just minimum code. The SDI Diaphragm Design Manual provides tabulated strengths for button-punch, screw, and weld fasteners.
Collector Elements
Beams parallel to lateral force act as collectors, accumulating drag force and delivering it to the LFRS. Connection design must include collector axial load combined with beam shear — a frequent detailing oversight.
Chord Members
Perimeter spandrel beams or slab reinforcement serve as chord elements. In composite systems, concrete slabs carry chord compression, while spandrel beams or edge angles must be detailed for chord tension anchorage.
Engineering Reconciliation
Diaphragm shear demands per ASCE 7 load combinations must be reconciled with SDI-DD tabulated capacities for the specific deck profile, gauge, and fastener pattern. This reconciliation is a required engineering deliverable, not a detailer assumption.
Proper diaphragm detailing ensures lateral forces are safely transferred to the LFRS. Explicit reconciliation of design loads with tested deck capacities is essential to prevent under-design and guarantee structural reliability.
Load Transfer Integrity
Critical Interface Details That Govern Load Transfer Integrity
Connections Are Where Design Intent Becomes Reality
Structural members rarely fail because loads exist. Failures occur when forces cannot move efficiently from one component to the next. In steel deck systems, a handful of critical interfaces govern whether gravity loads, diaphragm forces, collector demands, and composite actions remain continuous throughout the structure.
The Structural Control Board
INTERFACE 01
Deck Bearing & End Conditions
Governs reaction transfer from deck to supporting steel.
INTERFACE 02
Through-Deck Shear Studs
Controls composite interaction between slab and beam.
INTERFACE 03
Beam Connections
Transfers gravity, collector, and diaphragm forces.
INTERFACE 04
Perimeter Anchorage
Delivers diaphragm force into the lateral system.
Interface 01: Deck Bearing & End Conditions
Adequate bearing is required for load transfer, weld effectiveness, and connection stability. Insufficient bearing introduces eccentricity, reduces available connection capacity, and can create localized overstress. Cantilevered conditions and uplift zones require additional anchorage considerations.
Interface 02: Shear Stud Through-Deck Welding
Shear studs create composite action between slab and beam. Their performance depends heavily on flute geometry, rib dimensions, and stud position within the deck profile. Weak-position studs can significantly reduce available capacity compared with optimized placement.
Connections that appear adequate for gravity loading alone frequently become undersized once diaphragm collector forces and axial demands are incorporated into the design.
Interface 04: Pour Stops, Edge Angles & Perimeter Anchorage
Edge angles and pour stops are often part of the diaphragm force-transfer mechanism. Weld spacing and anchor requirements should be determined by calculated chord and collector forces—not by standard spacing rules applied universally across the project.
LINK
Structural Engineering Principle
A Structure Transfers Load Through Connections, Not Members
Deck bearing, shear studs, beam connections, and perimeter anchorage are the four interfaces where load transfer is either preserved or compromised. Successful steel deck design depends on treating these locations as engineered load-transfer systems—not installation details.
Load Path Checklist
Common Load Path Failures and Best-Practice Detailing
Most load path problems in steel deck systems do not come from member sizing alone. They come from incomplete or disconnected detailing at transfer interfaces, where forces are handed off from one element to the next.
01
Unresolved Force Transfers at Re-entrant Corners
Changes in deck direction or floor plate geometry create diaphragm discontinuities. Without explicit chord and collector detailing, forces accumulate with no defined transfer mechanism and can show up as slab cracking or connection distress.
02
Collector Connections Designed for Gravity Only
Shear tabs sized only for vertical reaction can fail to account for axial collector demand. Under seismic or wind loading, the combined force interaction can exceed connection capacity by a large margin at LFRS boundaries.
03
Deck Fastening Below Diaphragm Demand
Minimum SDI button-punch patterns may look compliant, but they still need to be verified against calculated diaphragm shear. Otherwise the deck can appear correct while lacking the in-plane capacity needed to transfer lateral forces.
04
Inadequate Bearing at Supports
Short bearing lengths reduce effective weld length and introduce rotational eccentricity. In seismic regions, that can lead to deck uplift or pull-off during reversals if positive attachment is not provided.
CHECKLIST
Best-Practice Engineering & Detailing Checklist
1. Define the Complete Load Path First
Trace the full gravity and lateral load path from point of application to foundation, and assign a responsible connection detail to every transfer interface.
2. Reconcile Diaphragm Demand with SDI Capacity Tables
Calculate diaphragm shear at each level per ASCE 7, then select deck gauge, profile, and fastener pattern from SDI-DD tables to meet or exceed that demand.
3. Design Collectors for Combined Loading
Design collector connections for the vector sum of shear and axial force under the governing LRFD combination, including the overstrength factor where required.
4. Verify Composite Stud Placement Geometry
Confirm stud layout coordinates with deck flute geometry, specify strong-position placement on drawings, and account for reduction factors where weak-position placement is unavoidable.
5. Detail Perimeter Anchorage to Calculated Demand
Size and space edge angle welds and pour stop connections from calculated chord and collector force demands. Vary spacing as required rather than applying one uniform pattern across the entire perimeter.
A structurally complete set of drawings shows how every force gets from where it originates to where it is resisted, with no gaps, assumptions, or deferred engineering left to field personnel.
