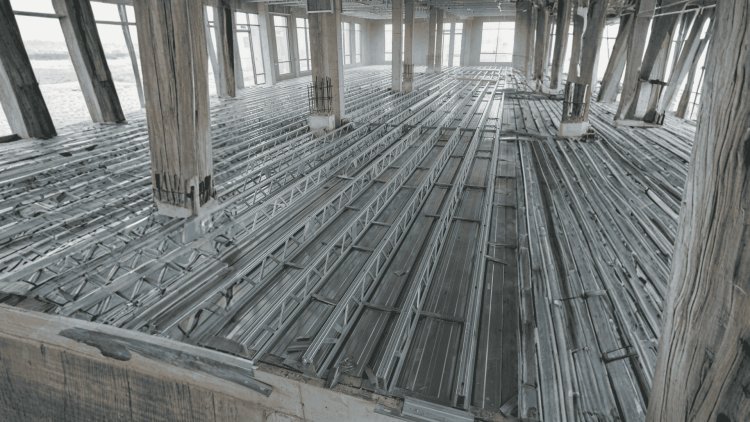

Understanding Allowable Deck Spans in Commercial Projects

One Dimension Controls the Entire System

Deck span appears to be a simple geometric choice, yet it influences serviceability, construction performance, framing efficiency, material cost, composite action, and structural risk. A span selected without fully understanding its consequences can create cascading problems throughout the building. A well-selected span, however, improves both structural performance and project economics simultaneously.

The Structural Domino Effect

Why Span Selection Is High Stakes

Five Variables Shape Allowable Span

Span Begins With Section Geometry

The Critical Span May Occur Before Occupancy

Not All Supports Behave the Same

Composite Action Changes the Span Equation

Composite deck gains stiffness from the hardened slab, while non-composite deck relies entirely on the steel section for long-term performance.

Strength May Pass. Deflection May Not.

The Question Designers Should Ask

Identify Deck Profile

Start with the deck profile designation — commonly 1.5", 2", or 3" rib heights for composite floor deck (type "B" or "IR") and 1.5" wide rib for non-composite roof deck (type "A" or "N"). Profile selection drives the available gage range and base moment of inertia.

Select Load Condition

Tables are organized by total uniform load (psf), typically in 25 or 50 psf increments. For composite floor deck, check construction-phase load (wet concrete plus 20 psf construction live load per SDI) independently from in-service loading. Both states may govern at different gages.

Single vs. Multi-Span

Most tables present single-span (simply supported) and multi-span (continuous) conditions separately. Multi-span configurations benefit from moment redistribution, yielding spans roughly 15–25% longer than single-span at the same gage and load. Always confirm the actual framing layout before selecting a column.

Check Deflection

Even when a span satisfies strength criteria, it may fail deflection limits. For composite deck under construction loads, SDI recommends checking that mid-span deflection under wet concrete does not exceed L/180 or 3/4" — whichever is less. Excessive deflection causes concrete ponding, increasing slab thickness and dead load beyond design assumptions.

Phase 1: Construction Loading (Unshored)

• Deck acts as formwork for wet concrete.
• Dead load: ~12.5 psf per inch of concrete (150 pcf).
• Construction live load: minimum 20 psf per SDI.
• Ponding risk on spans >10–12 ft; deflection must stay within L/180.
• Often controls gage selection for 8–12 ft spans with heavier slabs.

Phase 2: In-Service Loading (Composite)

• Composite section resists superimposed loads.
• Dead loads: mechanical, electrical, ceiling (~10–20 psf).
• Live loads: office (50 psf), assembly (100 psf), storage (125+ psf).
• Vibration checks per AISC DG11 may govern sensitive occupancies.
• Shear studs transfer horizontal shear between deck/slab and beams.

Span Determines the Question. Profile and Gage Provide the Answer.

Every steel deck selection begins with a span requirement. As spans increase, the deck must develop greater stiffness and bending resistance. Engineers can achieve this through deeper profiles, heavier gages, or a combination of both. The challenge is not finding the strongest deck, but finding the most efficient profile-gage combination for the structural demands of the project.

The Deck Selection Gearbox

1.5" Composite Deck (Type B / IR)

As Span Increases, Geometry Must Evolve

2" and 3" Deep Rib Deck

Gage Selection Is the Fine-Tuning Mechanism

Roof Deck Behaves Differently

For roof deck systems, uplift forces frequently govern gage selection before gravity span capacity is exhausted.

The Selection Sequence

Confirm Support Framing Layout Before Final Deck Selection

Deck span tables assume uniform support spacing. In practice, joist or beam spacing varies at perimeter bays, cantilevers, and around openings. Before finalizing gage and profile, verify that every span in the framing plan — not just the typical bay — is covered by the selected deck capacity.

Specify Concrete Unit Weight and Slab Thickness Explicitly

Do not rely on the deck manufacturer's standard table assumptions. Lightweight concrete (110 pcf) versus normal-weight (145–150 pcf) changes the construction-phase load by 25% or more over the same slab depth. Specify both concrete unit weight and finished slab thickness (measured from top of deck) on the structural drawings and in CSI Division 03 and 05 specifications.

Cross-Check Manufacturer's Published Tables Against SDI Standards

Manufacturer-specific span tables may use proprietary testing data and present values slightly different from SDI C-2011 (composite deck) or SDI RD-2017 (roof deck). Always note which standard governs on the structural drawings. When in doubt, require certified test data or an ICC evaluation report supporting the published values.

Document the Governing Load Case on Contract Drawings

Include a clear note on the structural deck plan identifying the governing load combination — construction-phase or in-service — along with the design total load (psf), span used in design, minimum gage, and applicable span condition (single vs. multi-span). This reduces substitution errors and supports code compliance during inspections.
