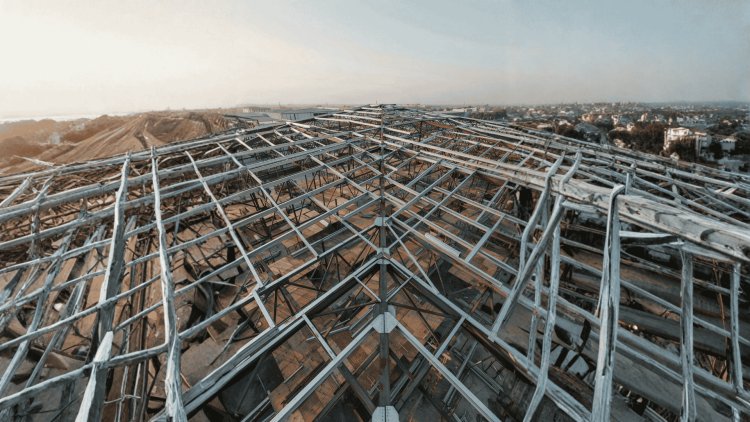

Roof Deck Detailing Around Ridge and Valley Conditions

Advanced Roof Deck Detailing

Why Ridge and Valley Conditions Demand Special Attention

Most steel roof deck systems are designed around simple assumptions: continuous panel runs, repetitive spans, uniform fastening, and predictable diaphragm behavior. Ridge and valley intersections disrupt every one of those assumptions. These locations concentrate structural, geometric, and drainage complexity into a small area, making them some of the most detail-sensitive zones on an entire roof system.

The Core Problem

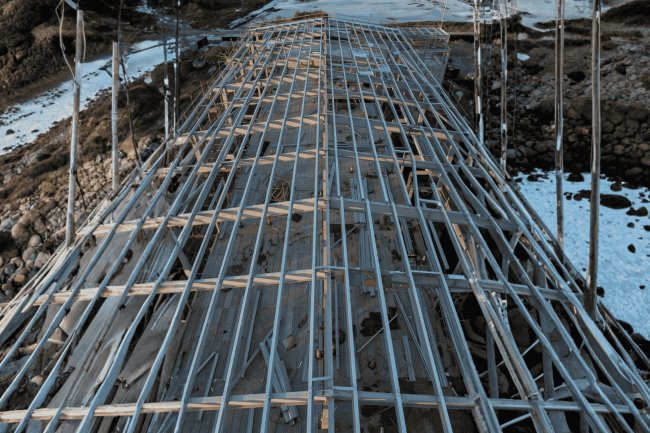

Sloped Roof Plane

Structural Framing

Drainage Requirements

Ridge & Valley Complexity

At ridges, opposing roof planes meet at a peak. At valleys, those same planes converge into a drainage trough. In both situations, deck panels terminate at non-standard angles, disrupting the repetitive geometry assumed throughout the remainder of the roof structure.

Ridge Condition

Planes Meet at a Peak

• Decks converge upward
• Non-perpendicular panel terminations
• Interrupted fastening patterns
• Potential diaphragm discontinuities
• Specialized ridge support requirements

Valley Condition

Planes Meet at a Trough

• Concentrated water collection
• Complex panel geometry
• Drainage component conflicts
• High fastening demands
• Valley beam load concentration

Scope of Impact

Diaphragm Integrity

Ridge and valley zones interrupt otherwise continuous roof diaphragms. Missing connections, insufficient bearing, or poorly detailed transitions directly reduce lateral force transfer capacity.

Panel Geometry

Panels must often be field-cut at compound angles. Accurate shop drawings and clear erection instructions become essential to avoid fit-up problems in the field.

Water Management

Crickets, saddles, tapered insulation, valleys, and drainage pathways must integrate seamlessly with structural deck details without creating unsupported roofing zones.

Structural Bearing

Ridge beams, valley beams, and hip members receive concentrated reactions from multiple converging deck panels and must provide adequate support length.

Lateral Force Transfer

Diaphragm Performance Cannot Stop at the Ridge

Roof diaphragms depend on continuous fastening and uninterrupted shear transfer. Ridge and valley transitions frequently become weak points unless the structural drawings explicitly define connection requirements.

Deck Fasteners

Side-Lap Connections

Closure Plates

Collector Continuity

Fabrication Challenge

Compound Cuts Demand Accurate Documentation

Unlike standard field areas where panels repeat predictably, ridge and valley details frequently require triangular cuts, skewed end conditions, non-standard closures, and custom trim pieces. Poor detailing often results in field measurements, re-cut panels, and installation delays.

Ridge Beams

Support converging roof planes.

Valley Beams

Combine drainage and structural demands.

Hip Rafters

Require detailed deck support checks.

Roof Deck Ridge Detailing

Ridge Conditions: Terminate Panels on Purpose

Ridge detailing depends on three decisions made together: panel run direction, the actual supporting member, and the required structural and diaphragm connection at the termination.

⌃

⌁

FIRST PRINCIPLE

Establish Panel Run Direction Before Drawing the Ridge

The ridge is not one universal detail. A panel that terminates perpendicular to the ridge can generally bear directly on a ridge support, while a panel running parallel to the ridge may leave a cut edge or final rib requiring a closure angle, clip, or supplemental member.

Run direction

Bearing surface

Rib closure

Fastener pattern

⊥

RUN A

Panels Perpendicular to the Ridge

Each roof plane can terminate at the ridge support, allowing the panel ends to bear on the ridge beam, wall, or purlin. This is often the cleanest condition when the support flange is wide enough and the deck ends can be aligned with the framing.

Typical advantage
Direct end bearing and simpler panel termination.

Primary check
Flange width, end bearing, edge fastening, and ridge closure.

Confirm whether the ridge member is designed for two-sided deck reactions, diaphragm transfer, local deck web crippling, and any concentrated closure or flashing attachments.

∥

RUN B

Panels Parallel to the Ridge

The deck may approach the ridge along its length, leaving a final rib, cut edge, or transition condition that is not automatically supported by the primary ridge member.

Typical response
Closure angle, standoff clip, edge member, or supplemental support.

Primary check
Final rib bearing, edge stiffness, closure attachment, and access.

Never assume the cut deck edge can transfer load merely because it is near the ridge. Show the supporting load path and detail how the final rib or sheet edge is restrained.

Bearing Surface: Resolve the Geometry

Identify the Actual Support

Is the deck bearing on a beam flange, bearing wall, tube, angle, purlin, or a dedicated ridge member? Each support changes the available width, connection, access, and closure detail.

Measure Bearing Correctly

On sloped roofs, check the deck support geometry in the actual section. Do not infer adequate bearing from a plan view or from the apparent contact length of a sloped sheet.

Check the Steep-Slope Case

At steeper slopes, small plan or section errors can materially change bearing, fastener edge distance, closure fit, and local support behavior.

Do not state that bearing is always measured horizontally without checking the governing deck standard, manufacturer data, and the actual support geometry. Published requirements vary: some specifications call for 2 inches minimum end bearing, while SDI-based manufacturer literature commonly identifies 1.5 inches at end supports and 3 inches at interior supports. [647][651][652]

⌃

CLOSURE CONDITION

Cap Plate or Ridge Closure

Open deck ribs at the ridge need a deliberate closure strategy. Closures can limit pest entry, reduce concrete intrusion where a topping is present, and support continuity of the roofing, thermal, and air-barrier assemblies.

Identify the deck profile and rib geometry.
Specify flexible or rigid closures as appropriate.
Show attachment to the deck flanges or supporting member.
Coordinate movement between two sloped roof planes.
Confirm the closure does not obstruct drainage or flashing.

Closure plates at ridges, valleys, and transitions are often supplied by the deck manufacturer, but they must be specifically indicated and located on the design drawings. [648]

⌖

SUPPORT CONDITION

Beam, Wall, or Purlin?

The same panel termination behaves differently depending on what supports it. The detail must identify the support line, flange or bearing width, elevation, deck attachment, closure, and any supplemental steel.

Beam
Check flange width, reactions, access, and connection congestion.

Wall
Coordinate bearing, cap, flashing, air barrier, and attachment.

Purlin
Check local support, continuity, and deck-to-purlin fastening.

Fastener Pattern at the Ridge

End row

Show the end fastener row and its distance from the deck edge on the fastening plan.

Diaphragm demand

Increase connection density only when required by calculated shear transfer and the approved diaphragm design.

Pattern notation

Clearly distinguish field, end-bay, perimeter, sidelap, and ridge-specific patterns.

Installation limits

Verify weld, screw, or PAF compatibility with the deck, coating, support, and approved installation method.

Do not apply a 36/4 or 36/7 pattern as a universal ridge rule. Fastener spacing is governed by the diaphragm analysis, deck system, support conditions, edge distance, and project specifications. Manufacturer tools show these patterns as variable layout options rather than one mandatory condition. [650]

Ridge Detail Approval Checklist

□ Panel run direction identified.

□ Ridge support member identified.

□ End bearing verified against governing criteria.

□ Sloped section checked.

□ Final rib or cut edge supported.

□ Closure profile and attachment shown.

□ Thermal and air-barrier continuity coordinated.

□ Movement and differential slope addressed.

□ Fastening pattern shown.

□ Diaphragm transfer checked.

□ Manufacturer closure availability confirmed.

□ Roofing and deck trades reviewed.

DETAILING CAUTION

Do Not Copy a Generic Ridge Detail

Deck profile, support geometry, slope, connection type, diaphragm role, and roofing assembly all affect the correct detail.

SDI’s current standards are the 2022 editions, but the project’s adopted specification, deck manufacturer literature, structural calculations, and approved shop drawings control the final bearing and fastening requirements. [6]

The Ridge Principle

A sound ridge detail makes the load path, bearing, closure, movement, and diaphragm connection explicit. Set the panel direction first, verify the sloped support geometry, close every open rib intentionally, and document the ridge fastening pattern from the actual design—not from a generic sketch.

Valley Conditions

The Most Geometrically Complex Detail Zone

Valleys are where two downward-sloping deck planes intersect, forming a trough. They demand precision: panels must achieve bearing, compound-angle cuts are required, and drainage concentration makes waterproofing coordination critical.

Valley Beam Sizing and Deck Bearing

A valley beam must provide bearing for deck runs from both sides. For 1.5-inch-deep deck, SDI requires 1.5 inches of bearing. Often, a W-shape with 4–6 inch flange width or a welded bearing plate is necessary. Hip conditions demand individualized detailing for obtuse side panels.

Compound-Angle Panel Cuts and Field Tolerances

Panels require bevel cuts (vertical slope) and miter cuts (valley angle). Orthogonal roofs with equal slopes yield 45° valleys; non-equal slopes require trigonometrically calculated angles. Tolerances of ±¼ inch are typical, but must be verified against bearing width. Coordination with fabricators and installers is essential.

Sump Pan / Cricket Integration

Valleys must align with roofing contractor requirements for crickets and sump pans. Crickets divert water; sump pans collect drainage. Deck termination often sits back from the valley low point to allow cricket formation above the deck plane.

Diaphragm Continuity Through the Valley

Shear forces must transfer across valleys. If treated as separate diaphragms, collectors and drag struts are required. For continuous diaphragms, fastening patterns must ensure shear transfer, and the valley beam must act as a chord or collector element.

Side-Lap Fastening Near Valley

Side-lap fasteners must extend within one spacing of the valley cut. Panels cut short without final side-lap connections reduce diaphragm stiffness. Specify at least one fastener within 12 inches of the cut edge, and note this explicitly in fastening schedules.

Key Insight

Valley conditions combine structural, geometric, and waterproofing challenges. Success depends on precise bearing design, accurate compound cuts, coordinated sump/cricket integration, and explicit diaphragm fastening details.

Structural Deck Engineering

Fastener Schedules, Diaphragm Loads, and SDI/AISC Coordination

Ridge and valley conditions place some of the highest detailing demands on a steel roof diaphragm. While the field area of the roof often follows repetitive fastening patterns and predictable load paths, transition zones require project-specific engineering analysis. Fastener spacing, panel geometry, diaphragm continuity, and support member capacity must all be evaluated together to ensure the diaphragm performs as intended under wind and seismic loading.

Transition Zones Change the Diaphragm Rules

Cut Panels

New End Zones

Disrupted Load Paths

Special Fastener Design

Ridge and valley intersections create localized diaphragm conditions that differ substantially from standard field zones. Applying generic fastening schedules without considering cut geometry and load redistribution can result in unconservative diaphragm behavior.

Diaphragm Design at Transition Zones

SDI diaphragm procedures provide the analytical framework, but transition zones require additional engineering judgment. Each ridge and valley must be reviewed individually to verify that diaphragm strength, stiffness, and continuity remain intact through the geometric interruption.

Reduced Panel Widths

Cut ridge and valley panels often possess smaller tributary widths, requiring recalculation of fastener demand rather than assuming standard field conditions.

End Zone Expansion

Panel terminations at ridges and valleys create additional end-zone conditions where enhanced fastening patterns may be required.

Load Redistribution

Shear flow frequently changes around geometric transitions, requiring verification of fastener patterns and collector continuity.

Critical SDI Consideration

Ridge and Valley Cuts Create New End Zones

Under standard diaphragm behavior, only panel ends create end-zone fastening requirements. At ridge and valley cuts, the deck effectively terminates at both sides of the transition, potentially extending the length of roof requiring tighter fastener spacing.

Standard Field Zone

→

Ridge Cut

→

Additional End-Zone Fastening

Diaphragm Aspect Ratio Verification

Multiple ridges, valleys, hips, and intersecting roof forms can divide a roof diaphragm into smaller sub-diaphragms. These localized diaphragm regions may possess significantly different proportions than the primary roof area.

4 : 1

Aspect Ratio Threshold Requiring Special Attention

Unfavorable diaphragm geometry may require supplemental framing, collector reinforcement, or alternate load transfer strategies.

Fastener Type Selection at Ridge & Valley Conditions

Puddle Welds

• Highest diaphragm strength
• Common structural application
• Place in rib valley flats
• Avoid welds on cut flute slopes

PAF Fasteners

• Fast installation
• Verify flange thickness
• Manufacturer limitations apply
• Washers may be required

Self-Drilling Screws

• Ideal for side laps
• Suitable at trimmed edges
• Preferred at valley cuts
• More adaptable than punches

Preferred

Hex-Head Screws

Maintain positive connection capability even where deck sheets terminate at irregular cut conditions near ridges and valleys.

Limitation

Button Punches

Require panel overlap conditions that may not exist at trimmed deck edges and skewed geometric transitions.

Documentation Requirement

Fastener Schedules Must Be Explicit

Generic notes such as "fasten per manufacturer" are not adequate for ridge and valley conditions. Fastener type, spacing, edge distances, side-lap requirements, transition zones, and diaphragm-specific exceptions must be clearly documented on both structural drawings and deck shop drawings.

Required SDI / AISC Coordination

SDI Diaphragm Design

AISC Member Design

Fastener Schedule

Shop Drawings

The Fundamental Principle

Every ridge and valley condition with a modified fastener pattern must be explicitly represented in both the diaphragm calculations and the deck fastening schedule.

Fasteners Are Part of the Structural System

Ridge and valley zones are not merely detailing challenges. They are structural diaphragm transition regions where geometry, shear transfer, support conditions, and fastening strategies converge. Successful designs coordinate SDI diaphragm analysis, AISC support verification, fastening schedules, and shop drawing documentation as one integrated package rather than treating these elements as separate disciplines.

BIM Coordination · Ridge and Valley Zones

Model the Cut, Coordinate the Detail

Ridge and valley coordination cannot be reduced to generic deck objects. The model must communicate actual panel geometry, bearing, closures, fastening, openings, and interfaces with steel, roofing, and MEP systems.

BIM

⌗

MODEL TO FIELD RELEASE

A Detail That Cannot Be Built Should Not Survive the Model

At ridges and valleys, the BIM model is a constructability test. It should reveal whether the cut panel can bear, whether the closure can be installed, whether the fasteners are accessible, and whether roofing and MEP components physically fit before steel is erected.

Actual geometry

Bearing path

Trade interfaces

Approved release

✂

MODEL 01

Modeling Cut Panels

Each ridge or valley cut panel should be represented with its actual trimmed geometry rather than as a full panel accompanied by “cut to fit.”

Constrain panel edges to structural grids and support lines.
Drive cuts from roof slope, ridge angle, valley geometry, and framing position.
Use reference planes or equivalent parametric controls where the platform supports them.
Model panel types, end conditions, and unique cuts as identifiable components.

A parametric family can reduce rework when the ridge beam or slope changes, but it must still be validated against the actual manufacturer’s deck profile and fabrication tolerances.

⊞

MODEL 02

Model Closures and Sumps Separately

Closure strips, cap plates, valley plates, sump pans, receiver assemblies, and supplemental angles should be separate model elements with clear ownership and attachment information.

Host each accessory to the correct deck, beam, wall, or opening.
Show the interface with insulation, membrane, flashing, and clamping components.
Give each critical accessory a type, material, size, and detail reference.
Make elements visible in the coordination views used by all affected trades.

Manufacturer BIM families can accelerate modeling, but downloaded content should be checked for correct dimensions, level of development, attachment behavior, and project-specific tolerances. [663]

Minimum Shop Drawing Content

Plan layout

Identify each unique panel, cut line, orientation, support, splice, and opening.

Sections

Provide representative ridge and valley sections showing slope, closures, bearing, and roofing interfaces.

Bearing details

Dimension the support width, bearing length, edge condition, and any supplemental steel.

Fastening schedule

Show end-zone, perimeter, sidelap, closure, and cut-panel fastening requirements.

“Coordinate in field” is not an acceptable substitute for a resolved ridge or valley condition where bearing, opening reinforcement, closure, or fastening affects safety or performance. Government specifications commonly require cuts and openings to be shown on approved deck submittals before cutting. [657]

Multi-Trade Clash Detection

Structural steel

Check beams, purlins, flanges, connection plates, braces, and access around ridge and valley supports.

Roofing assembly

Check insulation thickness, tapered insulation, crickets, membrane turns, termination bars, and flashing.

MEP systems

Check drains, sumps, overflow paths, pipe penetrations, curbs, equipment, and service clearances.

Installation access

Check whether crews can place panels, install closures, weld or fasten, inspect, and complete membrane work.

Navisworks Clash Detective and comparable coordination tools can identify and report interferences before construction, but the test setup must use aligned models, appropriate tolerances, and clearly assigned issue ownership. [657][660]

Sequential Coordination Workflow

Set grids

→

Model slopes

→

Cut panels

→

Clash test

Structural setup: establish shared coordinates, grids, levels, framing, slopes, ridge and valley supports.

Panel geometry: model actual cuts, bearing edges, splices, closures, sump pans, and openings.

Trade coordination: federate steel, roofing, architectural, plumbing, and mechanical models.

Release: close issues, publish approved details, and prevent field cutting outside the approved submittal.

Zone Ownership and Issue Control

⌖

Assign One Zone Owner

Name a BIM coordinator responsible for the ridge and valley model, issue register, meeting decisions, and final coordination status.

Set a Project Tolerance

A ±1/2-inch test may be appropriate for selected critical interfaces, but tolerance must reflect fabrication, erection, roofing, and manufacturer requirements.

✓

Close Before Release

No unresolved critical clash, bearing ambiguity, missing closure, or unapproved cut should remain before the model or shop drawings are released for construction.

Ridge and Valley Release Checklist

□ Shared coordinates and structural grids verified.

□ Ridge and valley slopes modeled accurately.

□ Unique cut panels modeled individually.

□ Bearing width and length documented.

□ Closure strips, plates, and sump pans modeled.

□ Fastener schedule provided for cut zones.

□ Roofing assembly coordinated.

□ Structural steel and connection plates coordinated.

□ Drains and penetrations coordinated.

□ Critical clash tests completed.

□ Issue ownership and closure dates recorded.

□ Approved shop drawings match the model.

FIELD RELEASE CONTROL

No Unapproved Field Cutting

A model is useful only when it controls the work that reaches the field.

Require scaled drawings for additional openings or changed conditions, identify nearby supports and reinforcement, and obtain approval before cutting. Cutting with torches or making undocumented openings can compromise both deck performance and the approved load path. [657]

The BIM Coordination Principle

Set accurate grids, model actual cut geometry, represent closures and sumps as real components, run targeted multi-trade clash tests, and release only coordinated shop drawings. At ridges and valleys, BIM is not a visualization exercise—it is the controlled handoff between design intent and field execution.
