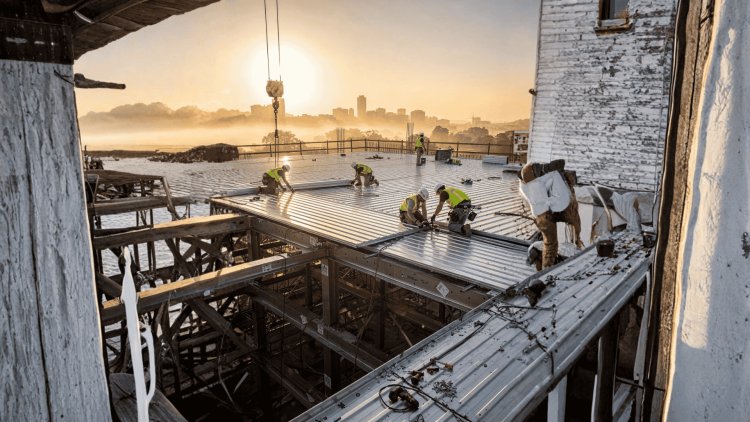

Key Information Required for Accurate Steel Deck Layouts

A Missing Input Can Affect the Entire Floor System

Unlike many fabrication activities that can tolerate minor assumptions, steel deck layouts require complete geometric, structural, and specification information before the first sheet is placed. Incorrect inputs can lead to RFIs, fabrication changes, installation delays, and potential code compliance issues.

More Than a Drawing

A steel deck layout is not simply a graphical drawing. It serves as a fabrication and installation directive that defines sheet lengths, support conditions, attachment requirements, panel orientation, perimeter treatments, and field installation sequencing across the entire deck surface.

Six Essential Input Categories

If the Inputs Are Incomplete, Stop the Layout

Every category listed above is essential for producing accurate, fabrication-ready deck layouts. Missing information in any one area is sufficient reason to pause detailing, resolve outstanding questions, and confirm project requirements before layout production proceeds.

Critical Geometry Verification Items

Geometry Errors Multiply Across the Entire Layout

Every sheet length, bearing calculation, attachment location, and edge condition originates from the framing geometry. Taking time to validate structural framing data before detailing begins significantly reduces RFIs, field corrections, fabrication changes, and installation delays.

Deck Span Condition

Confirm whether each bay is designed as a simple span, two-span continuous, or multi-span continuous condition. Span behavior directly impacts load capacity, gauge selection, end lap locations, support spacing, and detailing requirements. Continuous systems can often improve structural efficiency but require careful coordination of support locations and sheet joints.

Always Cross-Check Specifications Against Drawings

Before issuing layouts for fabrication, compare deck requirements shown on the structural drawings against the project specification section (typically Division 05 31 00 – Steel Decking). Any discrepancy involving profile, gauge, coating, attachment, or material grade should be resolved through an RFI before detailing proceeds.

The Engineer of Record should define deck-to-structure attachment requirements, including fastener type, spacing, and support locations. Deck attachment may consist of puddle welds, powder-actuated fasteners, or screws depending on project requirements. Areas subjected to enhanced diaphragm shear, wind uplift, or seismic demands often require supplemental attachment patterns that must be clearly incorporated into the layout documents.

Side lap connections between adjacent deck sheets must be specifically identified and coordinated with diaphragm design requirements. Fastener type, spacing, and location should be shown clearly enough that field installation crews can execute the work without interpretation.

Perimeter & Edge Conditions

Every deck edge requires a defined condition. Slab edges, elevator cores, wall lines, expansion joints, openings, and perimeter transitions should all be reviewed before layouts are released.

Closure & Infill Pieces

Rib closures, end closures, wall closures, edge infill strips, and partial-width deck pieces should never be treated as secondary items. These components require fabrication dimensions, material specifications, and installation sequencing. Confirm whether closure materials are included as part of the deck supplier's scope or furnished by another trade before detailing begins.

Attachment Review Workflow

Every Connection and Edge Must Be Defined

Accurate layouts require more than geometry and deck selection. Attachment patterns, side lap fastening, perimeter treatments, closure details, and infill components all contribute to a complete fabrication package. When these conditions are defined early, detailing becomes faster, fabrication becomes cleaner, and installation proceeds with fewer field questions and revisions.

Verify wet concrete loads, construction live loads, material staging loads, equipment loads, and occupancy-related live loads for each deck zone. Every bay must be checked against the applicable span tables for the specified profile and gauge before layout release.

Confirm maximum unshored spans and any temporary shoring requirements. For composite systems, review service-load span limitations, post-composite performance criteria, and any deflection requirements that influence layout configuration.

For roof deck systems, identify corner, edge, and field uplift zones. Each zone may require different attachment patterns and fastening densities. Boundaries must be clearly dimensioned on layout drawings to eliminate field interpretation.

All mechanical, electrical, plumbing, and structural openings should be fully coordinated before layout production. Opening dimensions, framing requirements, reinforcement details, and reference locations must be confirmed. Field-cut openings outside approved details should be explicitly prohibited in project notes.
