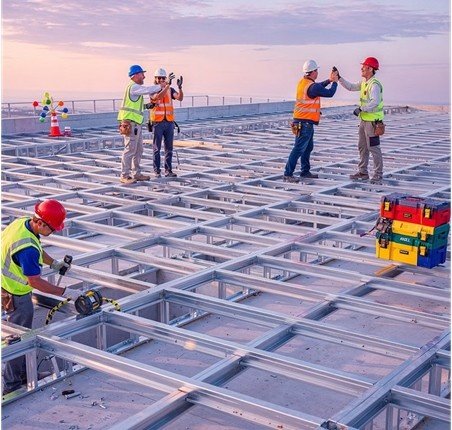

Structural Load Distribution in Light Gauge Steel Floors
Understanding how loads move through light gauge steel (LGS) floor systems is fundamental to creating safe, efficient, and cost-effective structural designs. This technical guide explores the mechanics, challenges, and best practices that structural engineers need to master for successful LGS floor applications
Understanding Load Path Fundamentals
Primary Load Types
Light gauge steel floors must effectively handle multiple concurrent loads. Dead loads include the self-weight of structural members, floor sheathing, ceiling materials, and mechanical systems. Live loads vary by occupancy type—residential floors typically require 40 psf, while office spaces demand 50–80 psf depending on usage.
Point loads from concentrated equipment, partitions, or fixtures require special attention in design calculations.
Distribution Principles
Loads flow from the point of application through floor sheathing to joists, then to load-bearing walls or beams, and ultimately to the foundation. The effectiveness of this load path depends on proper joist spacing, adequate connection details, and appropriate member sizing.
Understanding tributary areas helps engineers calculate the actual load each structural member must carry.
Critical Elements in LGS Floor Systems
Floor Joists
C-shaped or track sections spanning between supports, typically ranging from 6 to 12 inches in depth. Joist selection depends on span length, load requirements, and deflection limits. Standard gauges range from 20 to 12, with heavier gauges supporting greater loads.
Sheathing
Structural panels like plywood or OSB distribute concentrated loads across multiple joists. Proper attachment creates composite action, significantly improving system stiffness. Panel thickness and fastening patterns must align with engineering specifications for optimal performance.
Connections
Self-drilling screws, welds, or structural fasteners transfer forces between members. Connection capacity often governs overall system performance. Proper fastener spacing and edge distances are critical for achieving design strength and preventing premature failure.
Bearing Supports
Load-bearing walls, beams, or ledgers that provide vertical support at joist ends. Bearing length must be adequate to prevent web crippling—typically 1.5 to 3 inches minimum. Support conditions dramatically influence joist capacity and deflection characteristics.
Load Distribution Mechanisms
Light gauge steel floors distribute loads through several interconnected mechanisms. Direct load transfer occurs when forces move perpendicular to the floor surface through sheathing into joists. The sheathing acts as a two-way spanning element, spreading concentrated loads to adjacent joists and reducing peak stresses.
Load Application
Forces applied to floor surface from occupancy, equipment, or dead load.
Joist Transfer
Individual joists carry tributary loads to bearing points at supports.
Sheathing Distribution
Structural panels spread loads across multiple supporting joists.
Foundation Delivery
Loads ultimately transferred to foundation through walls and columns.
Lateral load distribution through diaphragm action helps stabilize the structure against wind and seismic forces. Properly fastened floor sheathing creates a horizontal structural plane that resists in-plane shear forces and distributes them to vertical lateral-force-resisting elements.
Common Design Considerations and Solutions
Deflection Control
LGS members are lightweight and can experience serviceability issues if not properly designed. Industry standards typically limit deflection to L/360 for floors with plaster ceilings or L/240 for other conditions. Increasing joist depth, reducing spacing, or adding bridging can improve stiffness without significant cost increases.
Vibration Performance
Floor vibrations can cause occupant discomfort even when structural capacity is adequate. Natural frequency calculations help predict dynamic response. Solutions include increasing mass, improving stiffness through deeper joists or closer spacing, and incorporating damping materials in floor assemblies.
Web Crippling Prevention
Concentrated loads or reactions can cause local buckling of thin steel webs at bearing points. Web stiffeners, bearing plates, or load-distributing angles prevent this failure mode. Proper bearing length calculations per AISI S100 specifications ensure adequate load distribution at support locations.
Thermal Bridging
Steel's high thermal conductivity can create energy efficiency concerns. Continuous insulation layers, thermal breaks at penetrations, and strategic detailing minimize heat loss. Consac's engineering teams regularly integrate thermal performance considerations into structural design to meet increasingly stringent energy codes.
Code Compliance and Engineering Resources
AISI S100 Standard
North American Specification for Cold-Formed Steel provides design provisions including load distribution, member strength, and connection requirements for LGS.
IBC Requirements
Establishes minimum design loads, occupancy classifications, and safety factors. Engineers verify compliance with the latest adopted editions.
Quality Assurance
Plan review, special inspections, and material certifications ensure installed systems match engineering intent, supporting verification.
Design Software
Modern engineering software automates calculations, generates detailed drawings, and integrates with BIM workflows for improved accuracy and coordination.
Mastering Load Distribution in LGS Floors
Successful light gauge steel floor design requires understanding how loads flow through interconnected structural elements. Engineers must balance strength, serviceability, constructability, and cost-effectiveness while meeting all applicable code requirements.
System Thinking
Effective load distribution depends on proper coordination between joists, sheathing, connections, and supports. Optimizing one element without considering the complete system can lead to suboptimal performance or unexpected failures.
Deflection Matters
Meeting strength requirements alone doesn't guarantee acceptable performance. Serviceability criteria including deflection limits and vibration characteristics often control design decisions for light gauge steel floor systems in occupied spaces.
Details Drive Success
Connection design, bearing conditions, and construction sequencing significantly impact structural performance. Clear communication through detailed drawings and specifications ensures field installation matches engineering assumptions and achieves intended load distribution behavior.
By applying these principles and leveraging modern design tools, structural engineers can create efficient, reliable light gauge steel floor systems that meet performance expectations while optimizing material usage and construction efficiency across diverse project types.
