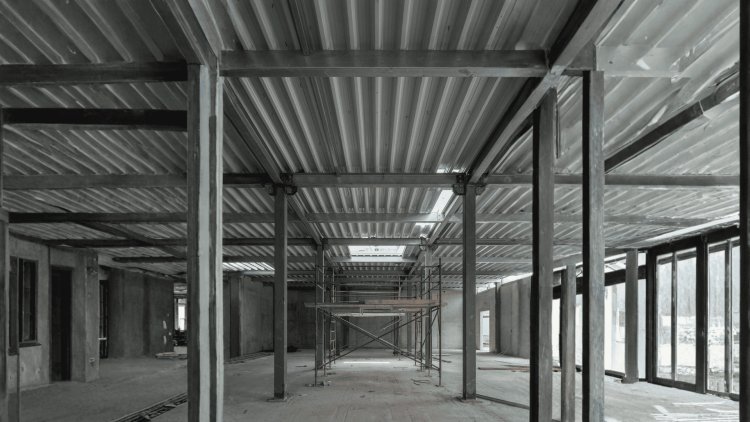

How Deck Continuity Affects Structural Behavior
Metal deck systems are rarely analyzed in isolation. The way individual deck sheets connect across supports — whether they act as simple spans or as continuous members — fundamentally changes how loads are distributed, how deflections accumulate, and how the overall diaphragm performs. Understanding deck continuity is essential for engineers making informed decisions about structural safety, economy, and long-term serviceability of composite and non-composite floor and roof systems.
What Is Deck Continuity — and Why Does It Matter?
Deck continuity is one of the most influential variables affecting deck strength, stiffness, load distribution, and diaphragm performance. Whether a deck behaves as a simple span or as a continuous system fundamentally changes the internal forces that engineers must design for.
Two Different Structural Behaviors
No moment transfer.
Midspan carries full positive bending demand.
Moment transfer develops.
Loads redistribute throughout the system.
How Continuity Is Created
Continuity Redistributes Forces
Continuity transfers a portion of bending demand from midspan into support regions, changing both the strength and serviceability behavior of the deck system.
Lower Midspan Moment
Two-span conditions can significantly reduce positive bending demand.
Reduced Deflection
Demand redistribution improves stiffness and serviceability performance.
Greater Capacity
Improved load distribution can increase live-load efficiency.
Continuity redistributes moment, reduces positive-span deflection, and increases interior support reactions. Those effects influence gauge selection, span-table interpretation, and connection design.
Continuity can reduce positive-span demand and may permit a lighter gauge or longer span under the same loading, provided the negative support region and connections are checked.
For a simple span under uniform load, deflection follows approximately \(5wL^4/384EI\). A two-span continuous system may deflect at roughly 60% of the comparable simple-span value.
Continuity increases reactions at interior supports. For the stated two-span uniform-load comparison, the interior reaction is approximately 1.25 times the simple-span reaction.
Use the table condition that matches the actual support continuity; do not substitute a continuous value for a simple-span condition.
Verify the applicable serviceability limit and construction-stage ponding risk independently of strength.
Detail interior supports for the elevated reaction and any associated diaphragm or uplift demand.
Continuity is not a free strength increase. It trades lower positive-span moment and deflection for higher negative support demand and stronger connection requirements. Select span-table values and details only after confirming the actual structural behavior.
Simple-Span vs. Continuous-Span: A Structural Comparison
Moment Demand
Deflection Behavior
Support Reactions
Design Consequences at a Glance
The Continuity Principle
Deck continuity is achieved through deliberate lapping and fastening at supports. Proper lap details and end conditions ensure structural performance, while inadequate fastening can reduce the deck to simple-span behavior despite physical overlap.
Standard lap lengths range from 2–4 inches, always over a structural support. Fastening — puddle welds at 6" or 12" intervals, or PAFs — activates moment transfer. Without fastening, laps act as independent spans.
Critical detail: when lapping over narrow joist chords (as small as 1.5"), both sheets must be independently fastened to the support.
ANSI/SDI requires minimum bearing: 1.5" on steel, 3" on concrete/masonry. Short bearing risks local web crippling, addressed by SDI reduction factors. At slab edges or walls, deck reverts to simple-span behavior, requiring careful coordination at corners, openings, and joints.
Lap sheets at supports per standard lengths.
Inspect laps and activate design loads.
Secure lap connection with specified fasteners.
Pre-pour inspection ensures laps are properly fastened.
Deck continuity is not inherent to the material — it must be deliberately designed, detailed, and verified. Proper lapping, fastening, and bearing coordination ensure the structural assumptions in design calculations hold true in the completed structure.
Lapping and End Conditions: How Continuity Is Achieved in the Field
Lap Details and Their Structural Role
End Conditions and Bearing Requirements
Sheet Lapping
Verification
Fastening
Quality Control
Key Insight
Deck continuity is critical not only for gravity-load behavior but also for transferring in-plane wind and seismic forces to the vertical lateral force-resisting system. Properly connected deck sheets create a dependable diaphragm; lapped but unfastened sheets can create structural weaknesses.
Diaphragm shear strength depends on the deck profile, gauge, span conditions, support attachments, and side-lap fastening pattern. Properly connected continuous deck systems generally provide substantially greater diaphragm capacity than configurations with unfastened or inadequately connected laps.
A continuous, well-fastened diaphragm distributes lateral forces more uniformly. Large openings, expansion joints, and unfastened laps can create soft zones that concentrate demand in individual connections and weaken the intended load path.
Chords resist diaphragm bending forces along the perimeter while collectors transfer those forces into the lateral force-resisting system. Deck continuity influences stiffness distribution and therefore affects the magnitude and path of these forces.
A diaphragm design that assumes rigid or highly continuous behavior must be consistent with the actual deck configuration and connection schedule. Discontinuous deck layouts, large openings, unfastened laps, or incomplete attachment details can materially change the structural load path and should be addressed explicitly during analysis and detailing.
Diaphragm Performance and the Role of Continuity
Diaphragm Shear Strength
In-Plane Stiffness
Collector & Chord Forces
Do Not Assume Continuity
Deck continuity is not created by overlapping sheets alone. It is a structural design condition that must be validated through analysis, detailed in construction documents, and verified during installation. When continuity assumptions are not enforced in the field, calculated capacities, deflections, and diaphragm strengths can quickly become invalid.
Continuity exists only when structural analysis, connection detailing, fastening requirements, specifications, and field installation all support the same behavior. Assuming continuity without enforcing it can invalidate load tables, deflection calculations, and diaphragm design assumptions.
Continuous deck systems deliver meaningful structural benefits, but only when continuity is intentionally designed and rigorously verified. Successful projects align calculations, fastener schedules, diaphragm requirements, and field inspections so that the behavior assumed in design is the behavior achieved in construction.
Design Considerations, Common Errors & Key Takeaways
Continuity Must Be Managed End-to-End
What Proper Continuity Delivers
Continuity Enforcement Pyramid
Continuity Is a Design Assumption That Must Be Proven
Detail It. Specify It. Inspect It.
