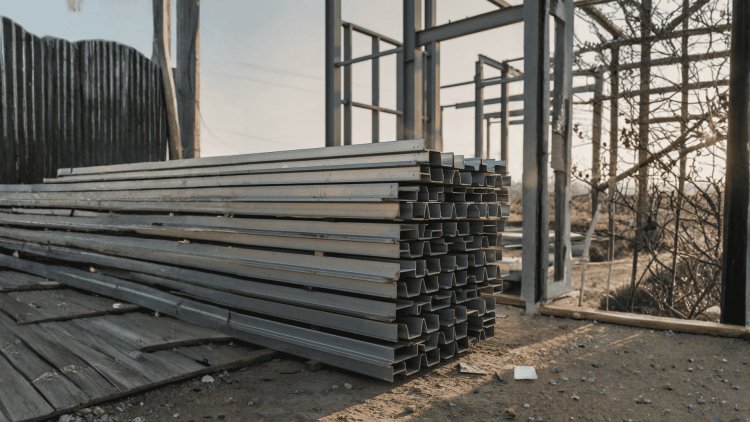

Composite Deck Sheet Length Planning for Installation Efficiency
Choosing the right sheet lengths before composite steel deck arrives on site is one of the most impactful — and most underestimated — decisions in structural floor system installation. Poor length planning translates directly into wasted material, excessive field cuts, misaligned laps, and slowed crew productivity. This guide walks structural engineers, deck installers, and project managers through the core principles of sheet length optimization, covering span configurations, end-lap positioning, bundle logistics, and coordination with the structural framing grid. Whether you're working a multi-story commercial frame or a long-span industrial floor, strategic sheet length planning pays dividends from the first bundle drop to final pour.
Why Sheet Length Selection Matters More Than You Think
Sheet length is not merely a material procurement detail — it's a foundational design and logistics decision that cascades across every phase of composite deck installation. Selecting lengths that don't align with the structural bay grid forces field crews to make unnecessary cuts, creates scrap waste that drives up material costs, and introduces cut-edge vulnerabilities that may require additional sidelap fastening or edge treatment. The ripple effects extend to concrete placement as well: improperly lapped or poorly supported sheet ends can lead to differential deflection under wet concrete loads, affecting slab flatness tolerances.
One Dimension Influences the Entire Workflow
Compounds
The Cost of Poor Planning
The starting point for any sheet length analysis is the structural framing plan. Beam-to-beam distances define the usable span, and sheet length must account for both the clear span and the bearing length required at each support. Most composite deck profiles require a minimum bearing of 1.5 inches on steel and 3 inches on concrete or masonry—these bearing lengths must be added to the clear span when calculating required sheet length.
A 10 ft clear span with 1.5 in. bearing each end requires a 10'-3" sheet minimum—not 10'-0". Forgetting to add bearing length results in sheets that are too short to achieve required bearing, creating a structural deficiency.
The starting point for any sheet length analysis is the structural framing plan. Beam-to-beam distances define the usable span, and sheet length must account for both the clear span and the bearing length required at each support. Always add bearing length to both ends: a 10 ft clear span with 1.5 in. bearing each end requires a 10'-3" sheet minimum—not 10'-0". Single-span sheets are simplest and best for uniform bay grids. Two-span continuous sheets increase structural efficiency by reducing positive moment and improving load distribution. Three-span continuous sheets offer maximum material efficiency but require longer lengths—verify transport constraints (standard flatbed limit is 40 feet) and coordinate with the deck supplier early. Most composite deck profiles require a minimum bearing of 1.5 inches on steel and 3 inches on concrete or masonry. These bearing lengths must be added to the clear span when calculating required sheet length.
Matching Sheet Length to
Structural Bay ConfigurationSheet Length Calculation Examples
Bearing each end: 1.5" (steel)
Calculation: 10'-0" + 1.5" + 1.5" = 10'-3"
Required sheet: 10'-3" minimum
Bearing ends: 1.5" each (steel)
Calculation: 8'-0" + 8'-0" + 1.5" + 1.5" = 16'-3"
Required sheet: 16'-3" (lap over intermediate beam)
Bearing ends: 1.5" each (steel)
Calculation: 10'-0" × 3 + 1.5" + 1.5" = 30'-3"
Required sheet: 30'-3" (verify transport limits)Transport and Delivery Constraints
Forgetting to Add Bearing Length
The Sheet Length Principle
When individual sheet lengths cannot cover the full required span — due to transport limits, stock availability, or multi-span layout — end laps are used to splice sheets longitudinally. The position, length, and fastening of end laps are not discretionary field decisions; they are engineered elements that affect composite deck structural performance, fire-rating assembly compliance, and concrete forming adequacy under construction loads.
On large floor plates with multiple sheet runs, stagger end-lap locations across adjacent sheet rows wherever possible. Aligning all end laps on the same beam concentrates construction loads and fastening demands at a single support line — a practice that can complicate both structural performance and field operations.
Staggered lap zones distribute the structural transition more evenly and reduce the visual and physical “hump” that aligned laps can create at the slab surface if deck isn't pulled tight before welding.
End-lap performance depends on more than overlap length. Support location, fastening, diaphragm requirements, adjacent lap distribution, reinforcement coordination, erection sequencing, and concrete placement controls should all be resolved in the detailing model and clearly communicated on the placement drawings.
End-Lap Positioning: Engineering the Overlap for Structural Performance
Support → Overlap → Fastening
Minimum End-Lap Requirements
Fastening at End Laps
Planning End-Lap Zones Across the Floor Plate
Documentation and Coordination
Treat Every End Lap as an Engineered Transition
Standard flatbed trailers accommodate deck sheets up to approximately 40 feet without special permitting. Lengths between 40 and 53 feet often require oversize-load permits, escort vehicles, and controlled delivery scheduling, increasing both lead time and logistics cost. Projects approaching these thresholds should coordinate with suppliers during design development, not after construction documents are issued. Long sheets also require enhanced site handling procedures to prevent bowing, twisting, or permanent deformation from inadequate temporary support.
Deck bundles are commonly packaged between 2,000 and 5,000 pounds depending on gauge, profile, and sheet length. Crane capacity must be verified at the actual operating radius before finalizing the bundle plan. Longer sheets increase total bundle weight, making reach calculations especially important. Bundle weight certifications should be obtained from the manufacturer and incorporated into the project's lifting and safety plan before field operations begin.
Projects utilizing multiple sheet lengths across different framing areas require disciplined drop-zone control. Bundles must be clearly identified and positioned in their correct installation zones before deck placement begins. Mixing bundle locations creates confusion, increases re-handling, raises the risk of incorrect installations, and reduces productivity. Collaborate with the deck subcontractor to establish color-coded bundle tags and coordinated drop-zone maps that align directly with the placement drawings.
Transport Length Limits
Bundle Weight & Crane Reach
Drop Zone Planning by Sheet Length Zone
Recommended Process
Composite deck sheet length planning is a discipline that sits at the intersection of structural engineering, construction logistics, and field productivity. Getting it right requires early coordination between the engineer of record, the deck supplier, the installing contractor, and the crane operator — not a last-minute procurement decision. The following principles summarize the best practices covered in this guide and provide a practical checklist for your next project.
Structural geometry, lap planning, procurement constraints, bundle logistics, and field sequencing must be coordinated as one continuous planning process.
Map bay dimensions first. Calculate required sheet length by adding bearing lengths to clear spans. Verify against transport limits before finalizing span configuration on contract documents.
Position all end laps over structural supports — never at midspan. Use minimum 3-inch laps. Stagger lap locations across adjacent sheet rows. Document lap zones on deck placement drawings and coordinate with rebar and concrete trades.
Confirm available stock lengths and lead times with the supplier during design development. Validate crane capacity at required radius for anticipated bundle weights. Develop a color-coded bundle drop-zone plan matched to the deck placement drawing.
Match sheet length to bay grid; define end-lap zones
Confirm stock lengths, bundle weights, and permits
Color-coded drop zones, pre-stage bundles, fasten per drawings
Composite deck installation efficiency isn't built on the day installation begins — it's built in the planning decisions made weeks and months before the first bundle hits the floor plate. Apply these principles consistently and you'll see measurable improvements in crew productivity, material utilization, and finished slab quality on every project.
The strongest deck length plans connect structural bay geometry, supported end laps, supplier capabilities, bundle weights, crane logistics, transport constraints, and installation sequencing into one coordinated workflow.
Start with the framing grid, engineer every end-lap zone, coordinate supplier and crane logistics during design development, and optimize sheet lengths around the actual field installation sequence. When design, procurement, and erection planning operate as one process, crews make fewer cuts, bundles move less, material waste falls, lap locations become predictable, inspections become cleaner, and the finished composite slab is more likely to meet its quality requirements.
Key Takeaways: Building a Smarter Deck Length Plan
Smarter Deck Installation
Begins With Smarter Length PlanningFrom Framing Grid to Field Efficiency
the Grid
End Laps
Logistics
EfficiencyStart with the Framing Grid
Engineer the End Laps
Predictable, Supported, and Staggered
PlanningCoordinate Logistics Early
Design → Procurement → Installation
Before the First Bundle Ships
Installation Efficiency Is Designed Before Erection Begins
Build the Length Plan Before the Deck Reaches the Site
