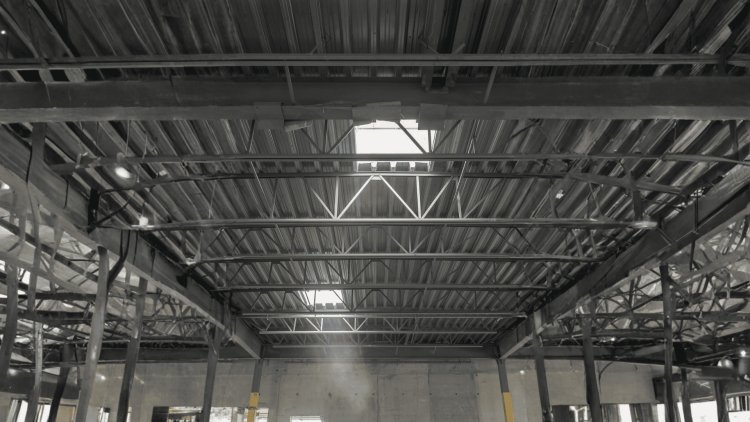

Steel Deck Coordination
Why Pre-Layout Review Is Non-Negotiable
The Last Opportunity to Catch Problems on Paper
Once deck sheets are cut, welded, fastened, and incorporated into the building system, correcting mistakes becomes exponentially more expensive. Pre-layout review acts as a coordination checkpoint where drawings, shop details, and structural intent are aligned before field work begins.
Three Documents. One Coordinated Reality.
Structural Drawings
Joist Shop Drawings
Deck Layout Sheets
The objective is simple: ensure all project participants are working from the same assumptions before installation begins.
What Pre-Layout Review Prevents
The Cost of Discovering a Problem
Drawing Review
Fabrication
Installation
Rework
Lowest Cost
Higher Cost
Major Cost
Maximum Impact
REVIEW
Key Principle
Coordination Before Installation Always Costs Less
Pre-layout review is not an administrative exercise. It is a quality-control gate that synchronizes structural drawings, joist documents, and deck layouts before materials reach the field. Every discrepancy resolved on paper eliminates exponentially larger costs during fabrication, installation, and project closeout.
Layout Reconciliation
Step 1 — Reconcile the Framing Plan Against the Deck Layout Sheet
STEP
01
Side-by-side comparison prevents layout conflicts before marks are made on steel
The first and most fundamental review step is a direct comparison of the structural framing plan and the deck layout drawing. These documents must agree on every grid line, bearing member location, and framing elevation before layout marks are made on the steel.
GRID
Check 01
Verify Grid Lines and Column Bay Dimensions
Confirm that the deck layout sheet uses the same column grid reference as the structural framing plan. Even a small discrepancy in bay dimension can cascade into bearing shortfalls across an entire row of joists.
Same grid reference
Spot-check three bays
Plan dimensions
CAD translation check
Key point: Verify using dimensioned plan distances, not just grid labels.
Check 02
Confirm Beam and Joist Bearing Elevations
Check that top-of-steel elevations on the framing plan are consistent with the deck profile requirements on the layout sheet. When beams frame at different elevations, the deck layout must explicitly call out transition details.
Top-of-steel elevation
Deck profile match
Transition details
Slope changes
Key point: Missing elevation notes at ramps, depressed bays, and slope changes often leads to field improvisation.
Check 03
Identify Framing Members Not Shown on the Deck Layout
Bridging members, drag struts, collector beams, and infill framing may appear on the structural plan but be absent from the deck layout if it was prepared earlier. Every framing member without a corresponding note or dimension should be flagged as a conflict point.
Bridging members
Drag struts
Collector beams
Infill framing
Key point: If it is on one plan and not the other, it must be reconciled before layout starts.
Review Flow
Framing Plan
↓
Deck Layout Sheet
↓
Reconciled Layout
ALIGN
Key Principle
If the plans disagree, stop and reconcile before field work begins
Direct plan reconciliation is the fastest way to prevent bearing shortfalls, elevation conflicts, and missing framing conditions from becoming site problems.
Structural Review Process
Step 2: Audit Interface Conditions
Framing Interface & Diaphragm Integrity
Once the geometry of the framing plan is confirmed, the review shifts to the physical interface between the deck panel and the supporting structure. Three interdependent conditions govern structural adequacy here: end bearing length, sidelap connection spacing, and attachment patterns.
Most roof deck profiles require a minimum of 1½ inches of bearing at each support. Verify this is achievable given the actual flange or top-chord width at every bearing condition—including skewed framing, tapered joist seats, and beams with cope cuts. Document any location where minimum bearing is marginal.
02
Sidelap Fastener Spacing
Sidelap fasteners (button-punched or screws) typically range from 12 to 36 inches. Cross-reference these with SDI or project-specific tables. Pay particular attention to perimeter zones and re-entrant corners where spacing typically decreases and field crews often revert to interior patterns.
03
Structural Attachment Pattern
Puddle welds or power-actuated fasteners must match the diaphragm design (e.g., 36/7, 36/4). Confirm the pattern is achievable given flange widths. Relocated fasteners that are not documented invalidate the diaphragm calculation and must be addressed.
ALERT
Critical Escalation
Mandatory Engineering Review
Any bearing, sidelap, or attachment condition that cannot be satisfied with standard details must be escalated to the structural engineer of record before deck placement begins — not during or after.
Steel Deck Review Process
Step 3 — Coordinate Openings, Penetrations & Special Framing
Every Opening Is a Coordination Event
Roof openings affect structural framing, deck layout, mechanical systems, and installation sequencing simultaneously. Before finalizing the deck plan, every penetration, curb, joint, and edge condition must be reconciled across architectural, structural, mechanical, and plumbing documents.
Typical Coordination Review Map
Openings Equipment Curbs Expansion Joints Penetration Clusters Roof Edge Conditions
Questions That Must Be Answered Before Layout
Opening Review
Is every penetration shown on both structural and MEP drawings? Does required framing exist?
Reinforcement Review
Are header angles, trimmers, bent plates, and reinforcement details fully referenced?
↔
Expansion Joints
Does deck run direction stop correctly at every joint without spanning across movement locations?
⚙
Equipment Curbs
Have final curb dimensions and framing details been issued and incorporated into the layout?
Identified in Review
Discovered During Layout
Found After Deck Installation
MEP
Coordination Principle
Overlay Before You Detail
Every mechanical penetration, skylight, smoke vent, expansion joint, and rooftop equipment curb should be overlaid against the structural framing plan before deck layout is finalized. The goal is simple: ensure every opening has supporting structure, every reinforcement detail is documented, and every interface condition is resolved on paper rather than in the field.
Pre-Layout Review
Pre-Layout Review Checklist — At a Glance
CHECK
✓
Confirm every item before layout marks are made on the structural steel
Use this consolidated checklist as a final gate before deck layout marks are made on the structural steel. Every item should be confirmed and initialed by the responsible party before installation commences.
01
Document Reconciliation
Align the drawing set before review
Framing plan and deck layout sheet share identical column grid and bay dimensions. All structural addenda and RFI responses are incorporated into the current drawing set.
Matching grid and bay dimensions
Addenda included
RFI responses incorporated
02
Bearing and Geometry
Verify support conditions and elevations
Minimum 1½-inch end bearing confirmed at all supports, including skewed and tapered conditions. Top-of-steel elevations verified at all elevation transitions and change-of-slope locations.
Minimum end bearing
Elevation transitions
Infill and collector framing
03
Diaphragm Attachment
Confirm fastening pattern and spacing
Puddle weld or PAF pattern matches diaphragm design assumption for each zone. Sidelap fastener type and spacing are confirmed for perimeter, interior, and transition zones.
Zone-specific attachment pattern
Sidelap fastener confirmation
No fastener relocation
04
Openings and Penetrations
Resolve every opening before panel sizing
All penetrations greater than or equal to one deck rib width are shown on the structural plan with a framing detail reference. Mechanical and plumbing overlay is complete, with no unframed penetrations outstanding.
Penetrations shown on plan
Overlay completed
Expansion joints respected
Key Takeaway
A rigorous pre-layout review transforms the structural drawings into a single coordinated source of truth — so that every bearing condition, attachment zone, and opening is resolved on paper before it becomes an expensive field problem.
READY
Final Gate
Confirm, initial, and release only when every item is coordinated
Every item should be confirmed and initialed by the responsible party before installation commences.
